Front Differential Assembly: Removal

WARNING: This page is about a different car, the 2001 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the manual transmission assembly from vehicle. See MANUAL TRANSMISSION ASSEMBLY  .
  2. Remove back-up light switch and neutral position switch.
  3. Remove transfer case and extension case assembly. See TRANSFER CASE AND EXTENSION CASE ASSEMBLY  .
  4. Remove transmission case. See TRANSMISSION CASE  .
  5. Removes drive pinion shaft assembly. See DRIVE PINION SHAFT ASSEMBLY  .
  6. Remove main shaft assembly. See MAIN SHAFT ASSEMBLY  .
  7. Remove differential assembly. See FRONT DIFFERENTIAL ASSEMBLY  .
    CAUTION:
    • Be careful not to confuse right and left roller bearing outer races.
    • Be careful not to damage retainer oil seal.

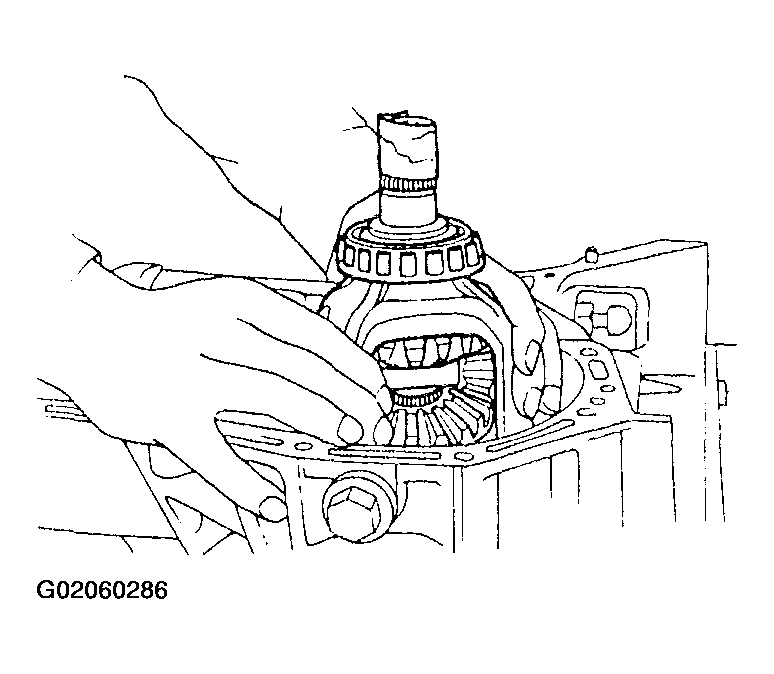

    Fig 1: Removing Differential Assembly
    G02060286
  8. Remove differential side retainers using ST.

    ST 499787000 WRENCH ASSY

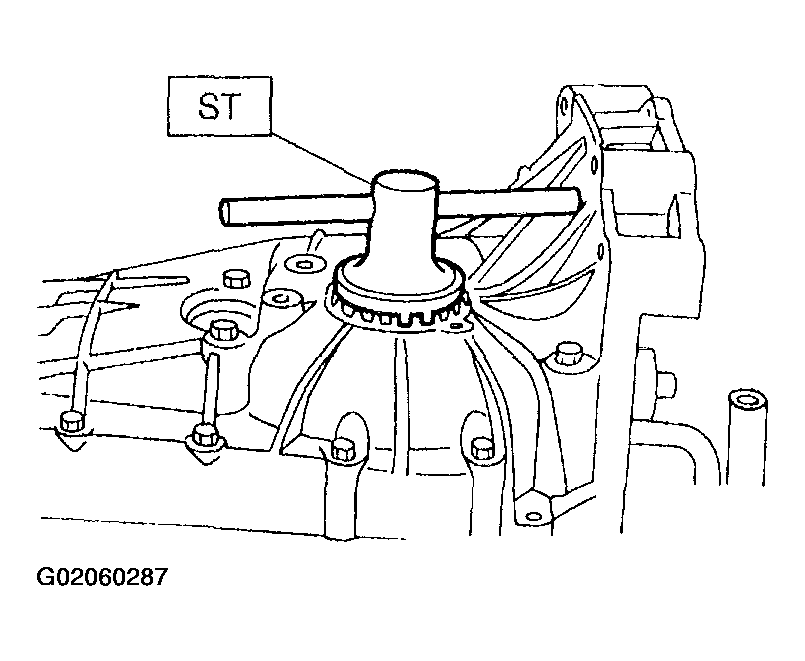

    Fig 2: Removing Differential Side Retainers
    G02060287
