Inhibitor Switch: Removal

WARNING: This page is about a different car, the 2001 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.
  1. Move select lever to neutral position.
  2. Remove air cleaner case and air intake duct. See AIR CLEANER CASE .
    Fig 1: Identifying Air Intake Duct & Air Cleaner Case
    G02061812
  3. Disconnect inhibitor switch connector.

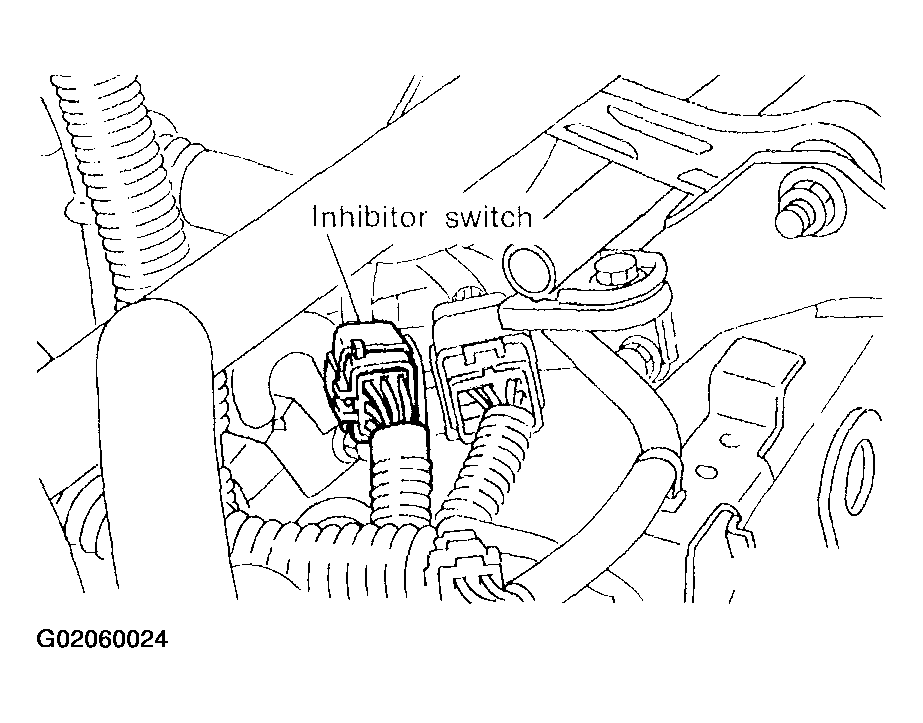

    Fig 2: Identifying Inhibitor Switch Connector
    G02060024
  4. Remove front exhaust pipe and center exhaust pipe. See EXHAUST SYSTEM .
  5. Remove snap pin from range select lever.

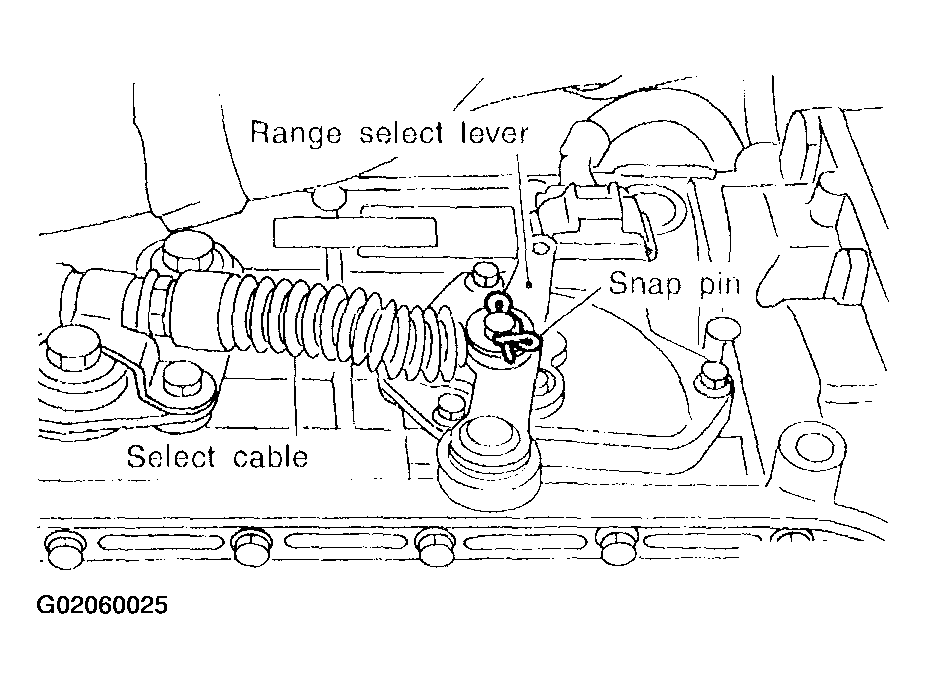

    Fig 3: Removing Snap Pin From Range Select Lever
    G02060025
  6. Remove plate assembly from transmission case.

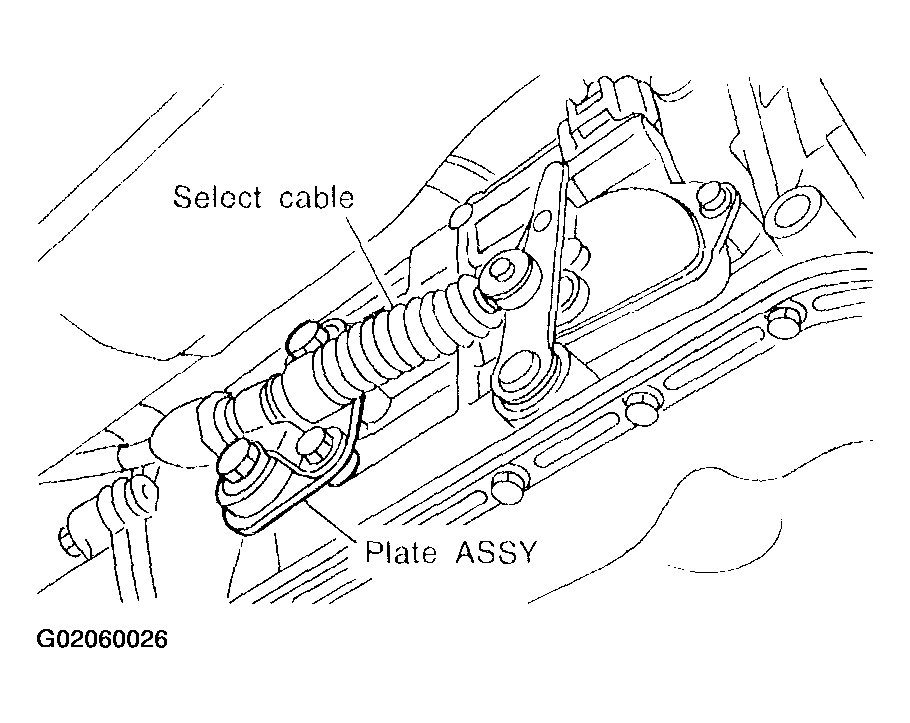

    Fig 4: Removing Plate Assembly From Transmission Case
    G02060026
  7. Remove bolts.

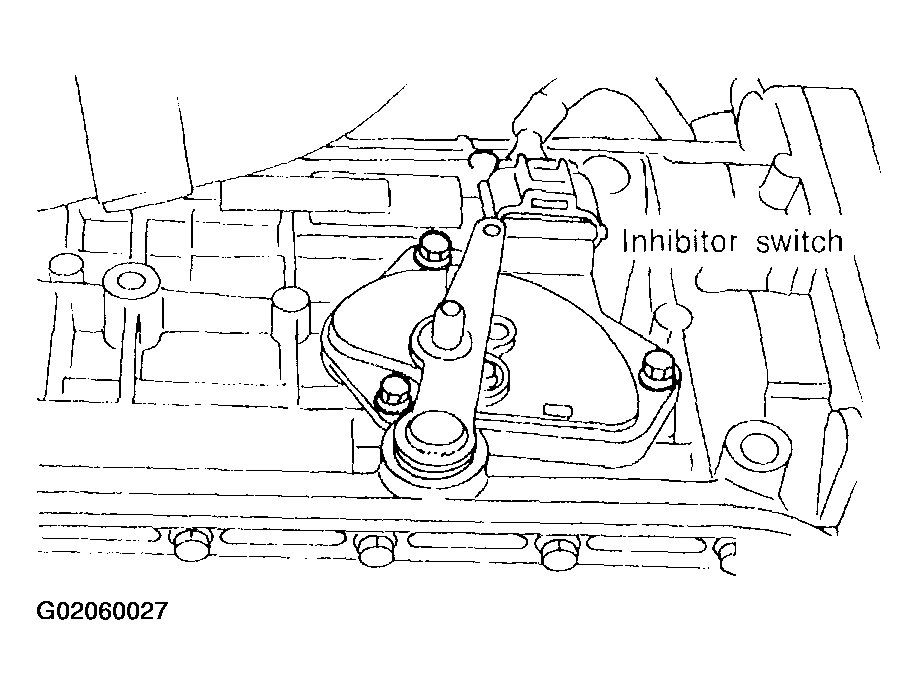

    Fig 5: Removing Bolts
    G02060027
  8. Move range select lever to parking position (left side).

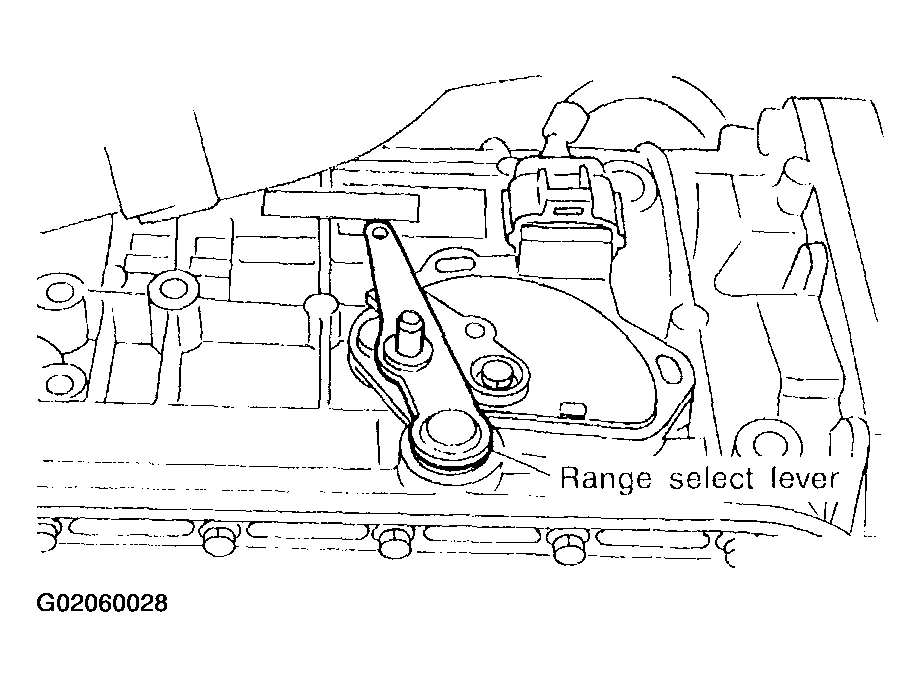

    Fig 6: Moving Range Select Lever To Parking Position
    G02060028
  9. Remove inhibitor switch from transmission.

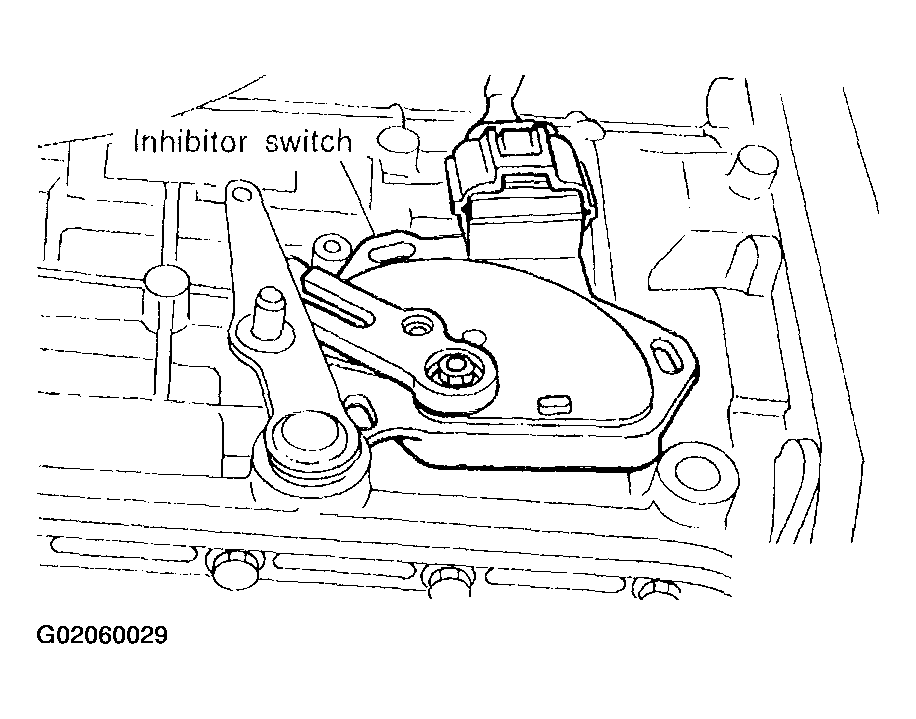

    Fig 7: Removing Inhibitor Switch From Transmission
    G02060029
