Inhibitor Switch: Adjustment

WARNING: This page is about a different car, the 2001 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.
  1. Loosen the three inhibitor switch securing bolts.
  2. Shift the select lever to the N range.
  3. Insert ST as vertical as possible into the holes in the inhibitor switch lever and switch body.
    1. ST 499267300 STOPPER PIN

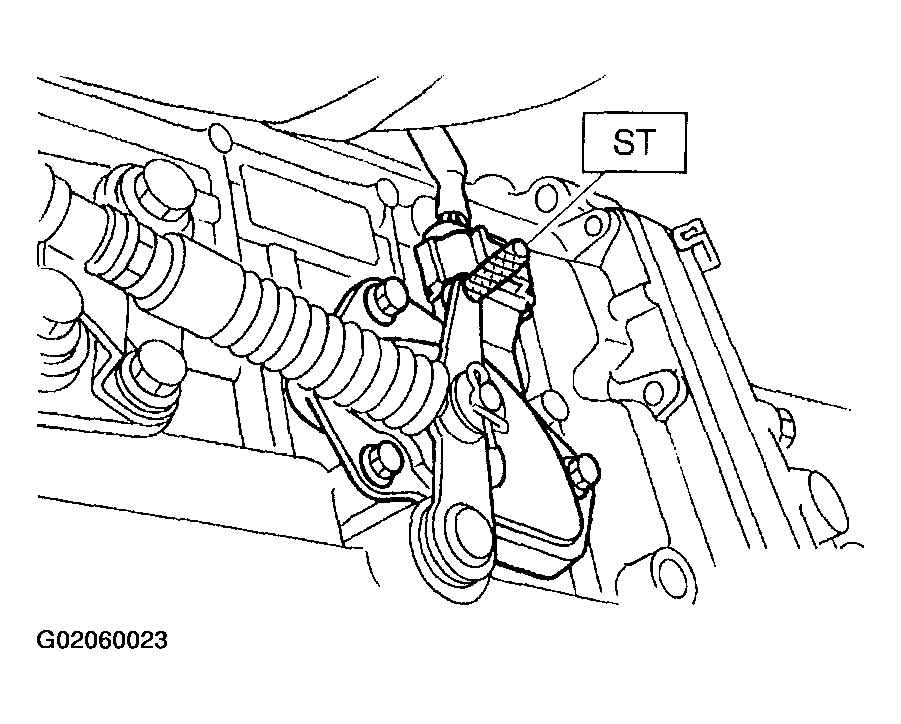

    Fig 1: Inserting (ST) Into Inhibitor Switch
    G02060023
  4. Tighten the three inhibitor switch bolts.
    1. Tightening torque:  3.4 N.m (0.35 kgf-m, 2.5 ft-lb)
  5. Repeat the above checks. If the inhibitor switch is determined to be "faulty", replace it.
