Dropping Resistor: Inspection

WARNING: This page is about a different car, the 2001 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.

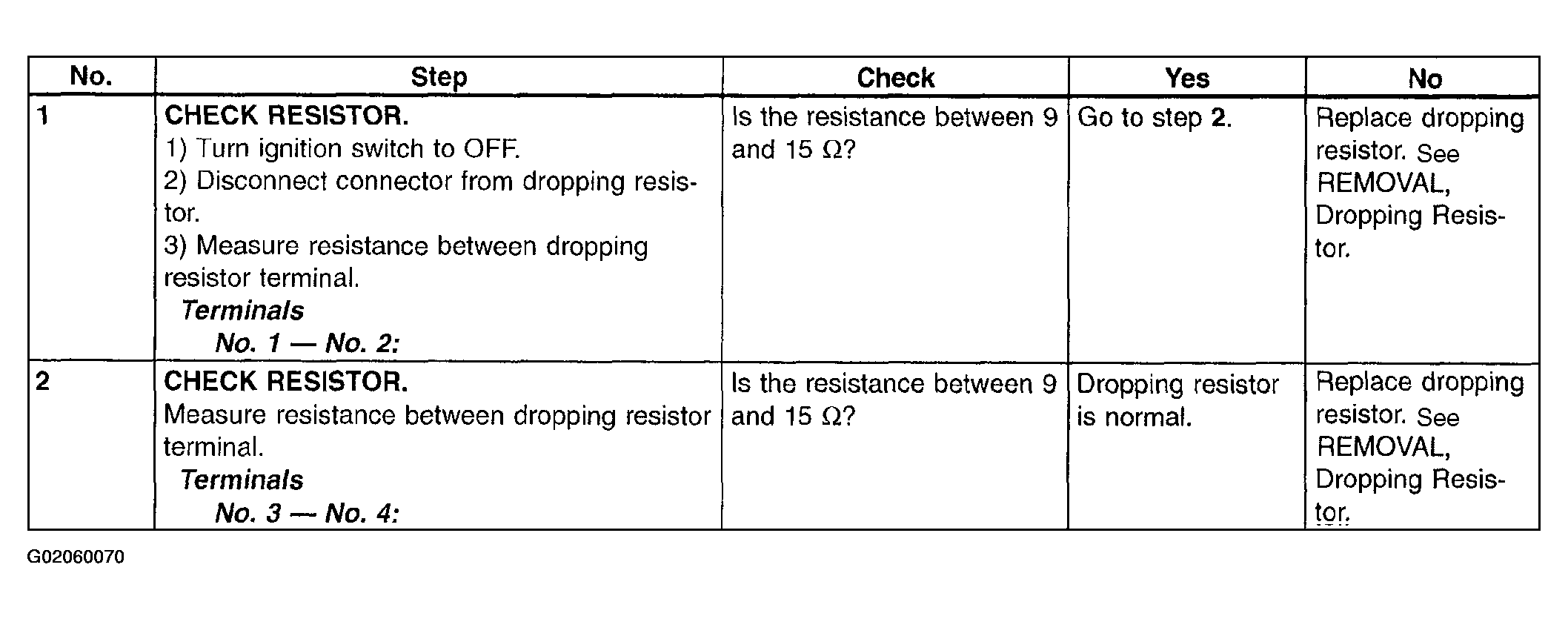

Fig 1: Inspection Of Dropping Resistor Chart
G02060070
