On-Car Service
WARNING: This page is about a different car, the 2001 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.
- Joints and connections
Check for any looseness of yoke flange connecting bolts and center bearing retaining bolts.

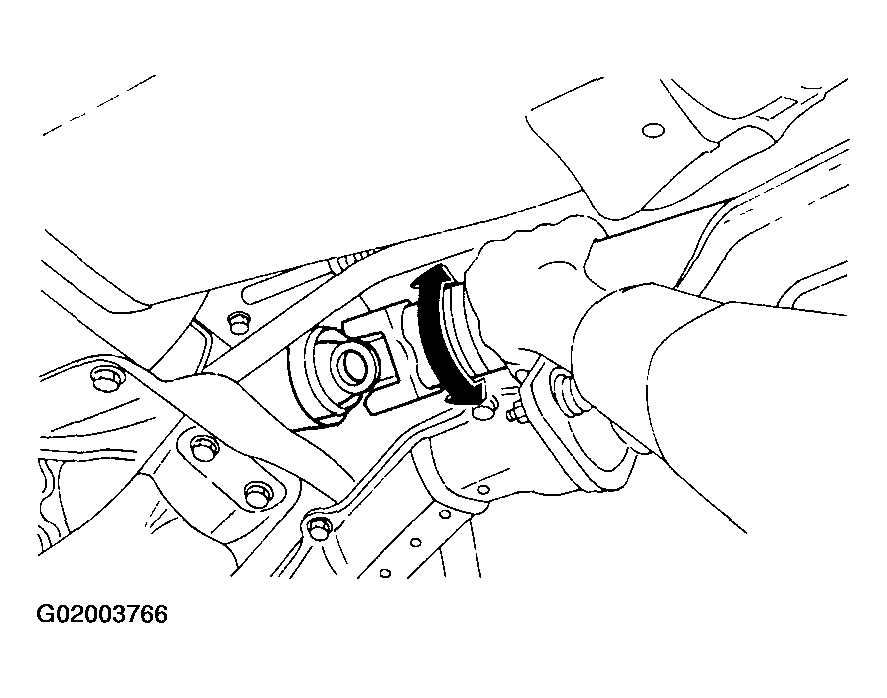

- Splines and bearing locations
Turn propeller shaft by hand to see if abnormal free play exists at splines. Also move yokes to see if abnormal free play exists at spiders and bearings.

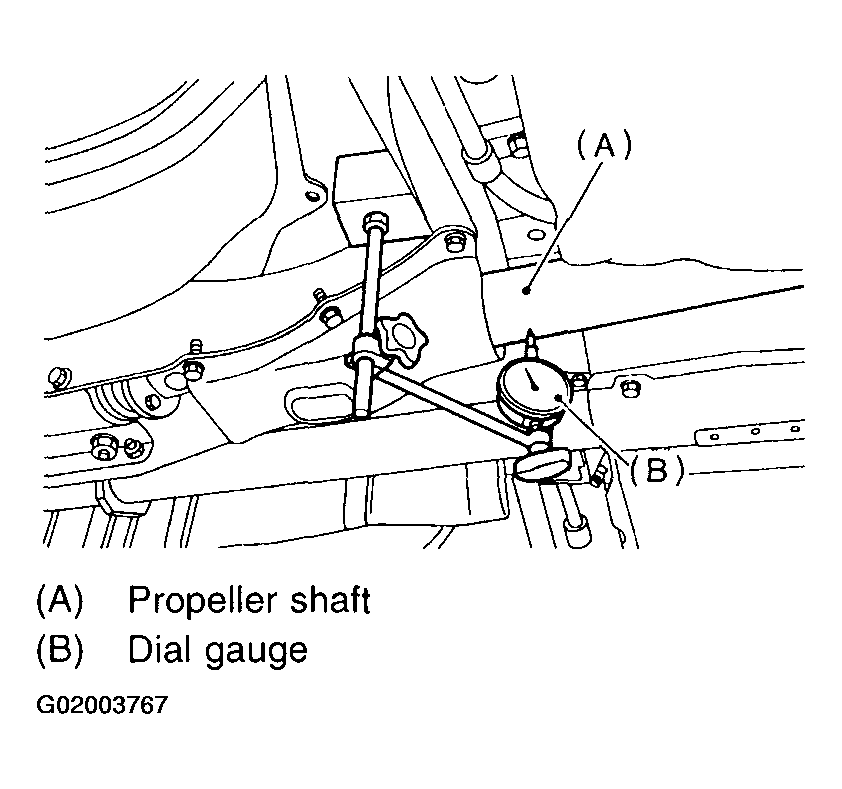

- Runout of propeller shaft
Turn rear wheels by hand to check for "runout" of propeller shaft.
NOTE: Measure runout with a dial gauge at the center of front and rear propeller shaft tubes.Runout: Limit 0.6 mm (0.024 in)

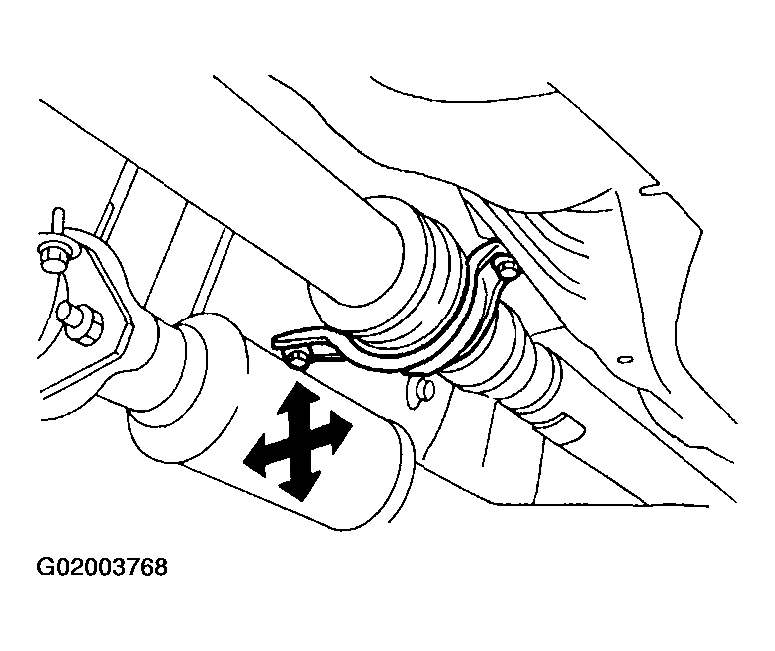

- Center bearing free play
While holding propeller shaft near center bearing with your hand, move it up and down, and left and right to check for any abnormal bearing free play.
