With LSD

WARNING: This page is about a different car, the 2001 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

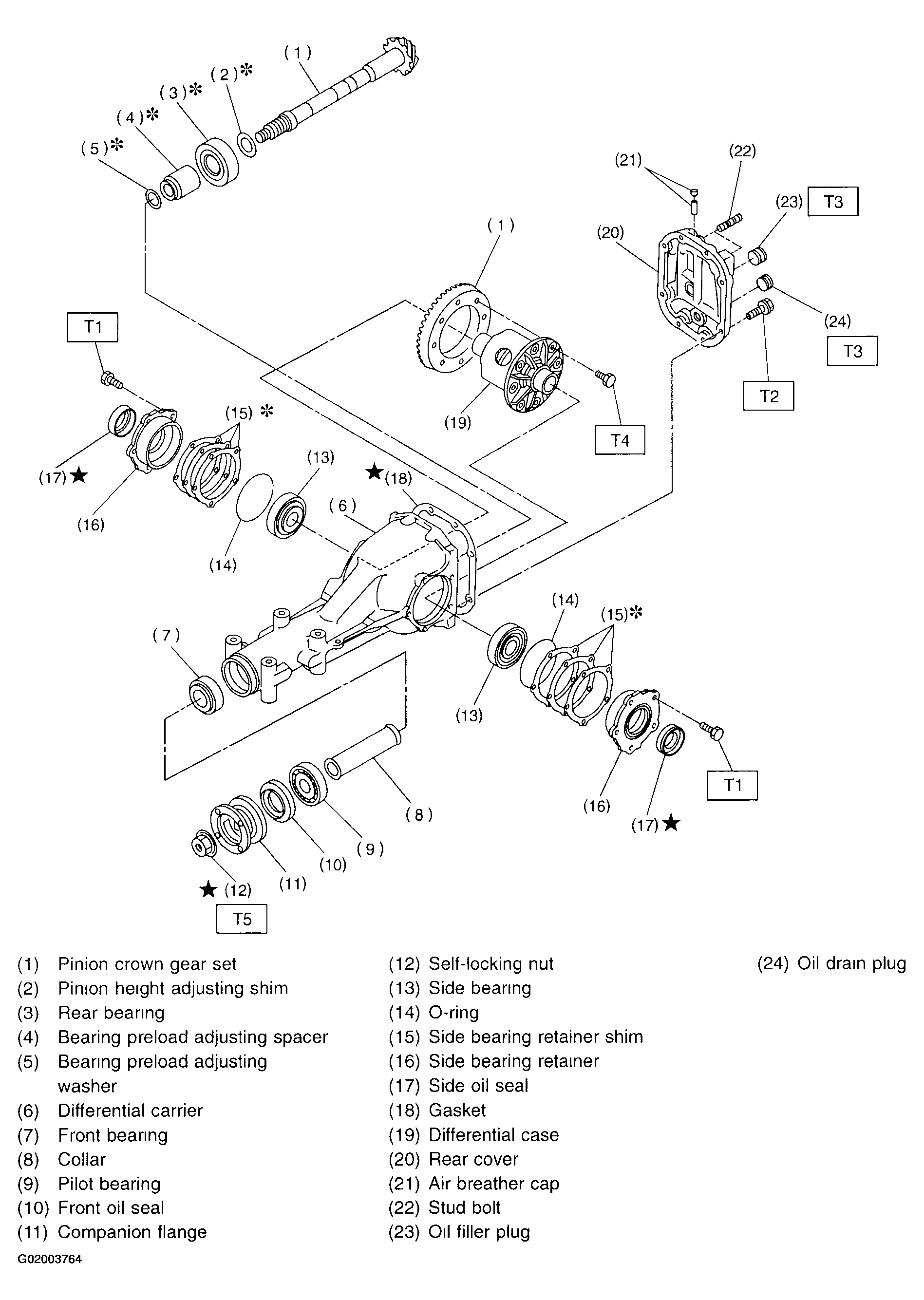

Fig 1: Identifying Rear Differential Assembly With LSD
G02003764

Tightening torque: N.m (kg-m, ft-lb)

T1:  10.3+/-1.5 (1.05+/-0.15, 7.6+/-1.1)

T2:  29+/-5 (3.0+/-0.5, 21.7+/-3.6)

T3:  49.0+/-9.8 (5.0+/-1.0, 36.2+/-7.2)

T4:  103.0+/-9.8 (10.50+/-1.00, 75.9+/-7.2)

T5:  181+/-15 (18.5+/-1.5, 134+/-11)
