Propeller Shaft

WARNING: This page is about a different car, the 2001 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

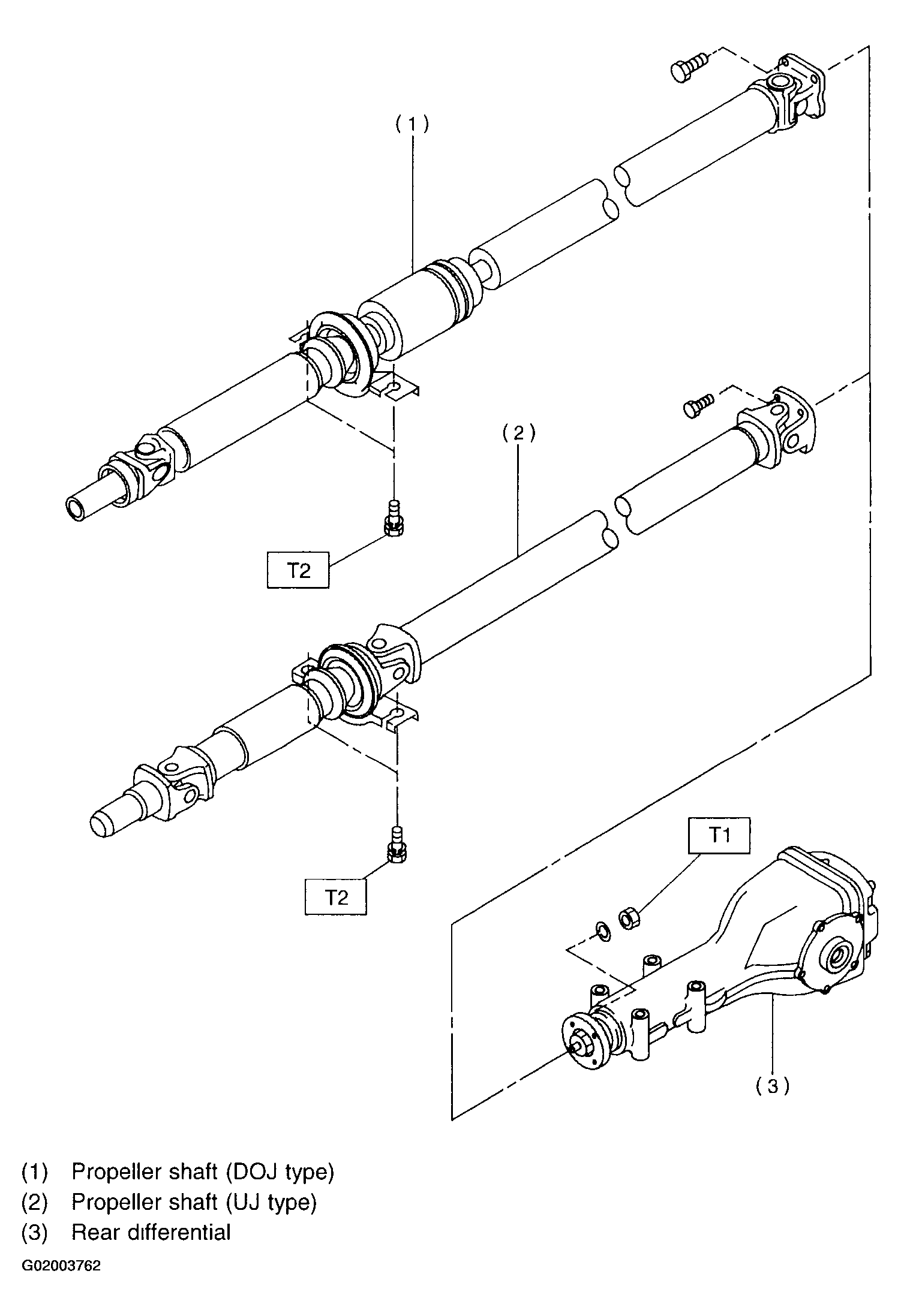

Fig 1: Identifying Propeller Shaft
G02003762

Tightening torque: N.m (kg-m, ft-lb)

T1:  31+/-8 (3.2+/-0.8, 23.1+/-5.8)

T2:  52+/-5 (5.3+/-0.5, 38.3+/-3.6)
