Removal And Installation

WARNING: This page is about a different car, the 2001 Subaru Forester and 2000 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect battery negative terminal.
  2. Discharge refrigerant using refrigerant recovery system, see DISCHARGE THE SYSTEM .
  3. Remove bolt then disconnect discharge pipe and suction pipe.

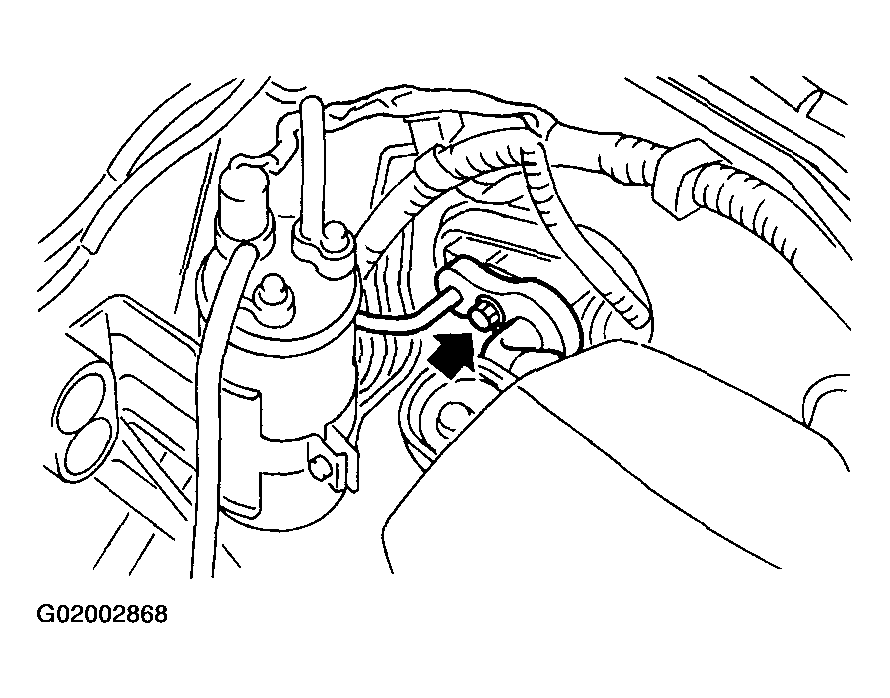

    Fig 1: Removing Discharge Pipe & Suction Pipe
    G02002868
  4. Remove glove box.
    Fig 2: Removing Glove Box
    G02002869
  5. Disconnect the harness connector from intake unit.
  6. Disconnect drain hose.
  7. Remove intake unit mounting bolt and nut.

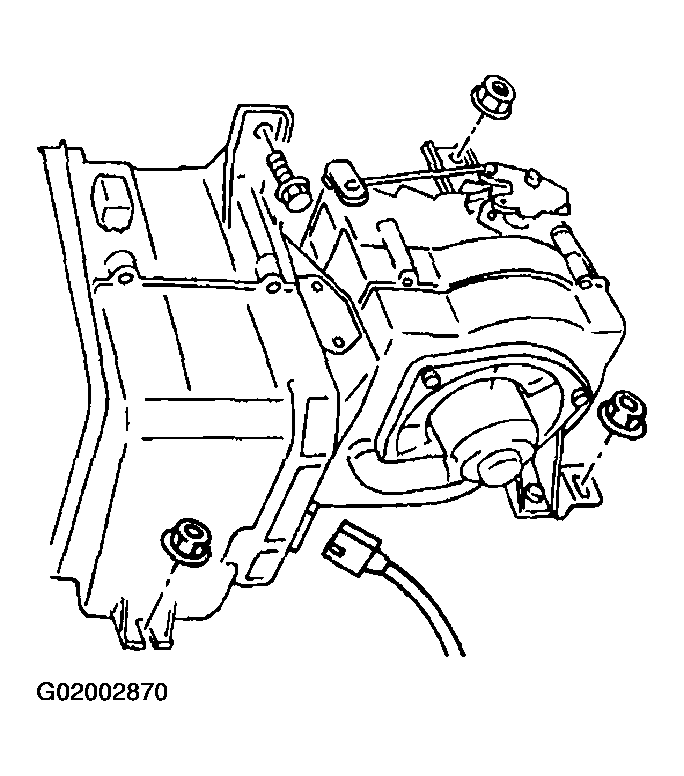

    Fig 3: Removing Intake Unit
    G02002870
  8. Install the intake unit in the reverse order of removal.
  9. Charge refrigerant. See EVACUATING AND CHARGING .
