Removal And Installation

WARNING: This page is about a different car, the 2001 Subaru Forester and 2000 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the four upper clips from body panel. To facilitate removal, press portion shown in the figure using screwdriver while lightly pulling front grille.

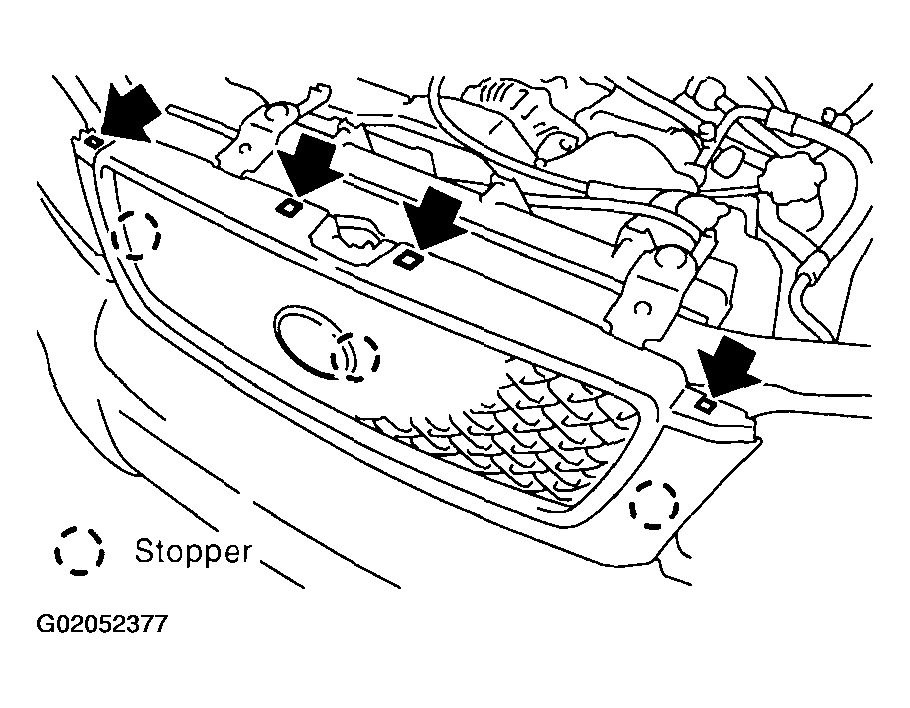

    Fig 1: Removing & Installing Front Grille
    G02052377
  2. Install in the reverse order of removal.
    NOTE: Attach all clips to grille. Align them with clip hole in body and push them into place.
