Sensors (In Transmission): Inspection: Notes

WARNING: This page is about a different car, the 2001 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

Remove air cleaner case and duct.
Disconnect transmission connector.

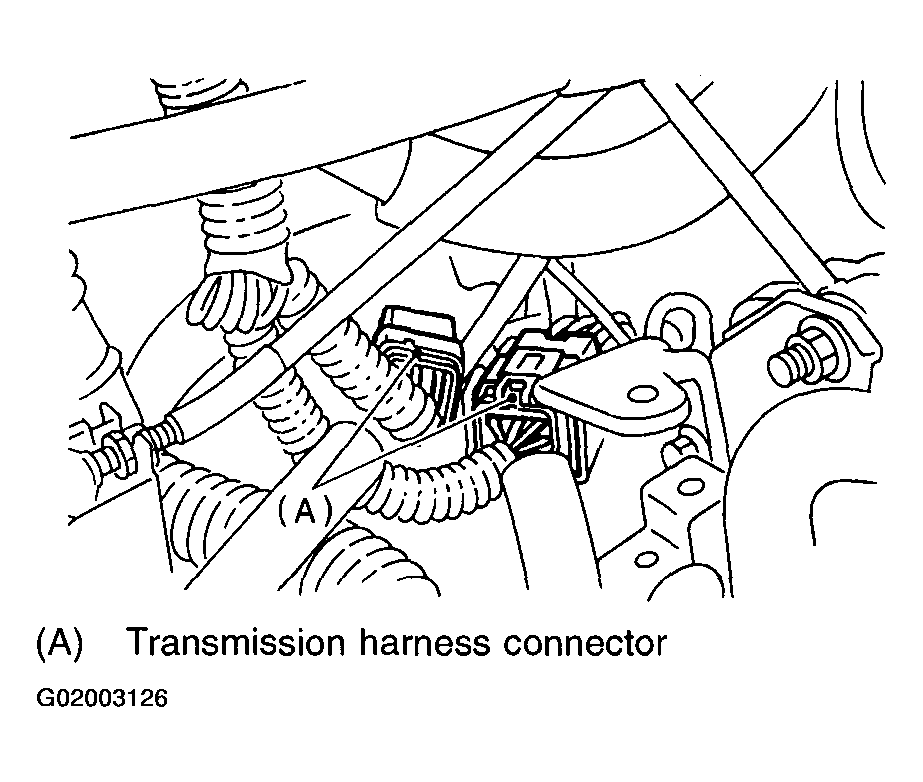

Fig 1: Identifying Transmission Harness Connectors "A" (Inhibitor Switch & Sensors)
Check each sensor, solenoid and ground system for short circuits.

Fig 2: Identifying Transmission Harness Connector "A" (Sensors)

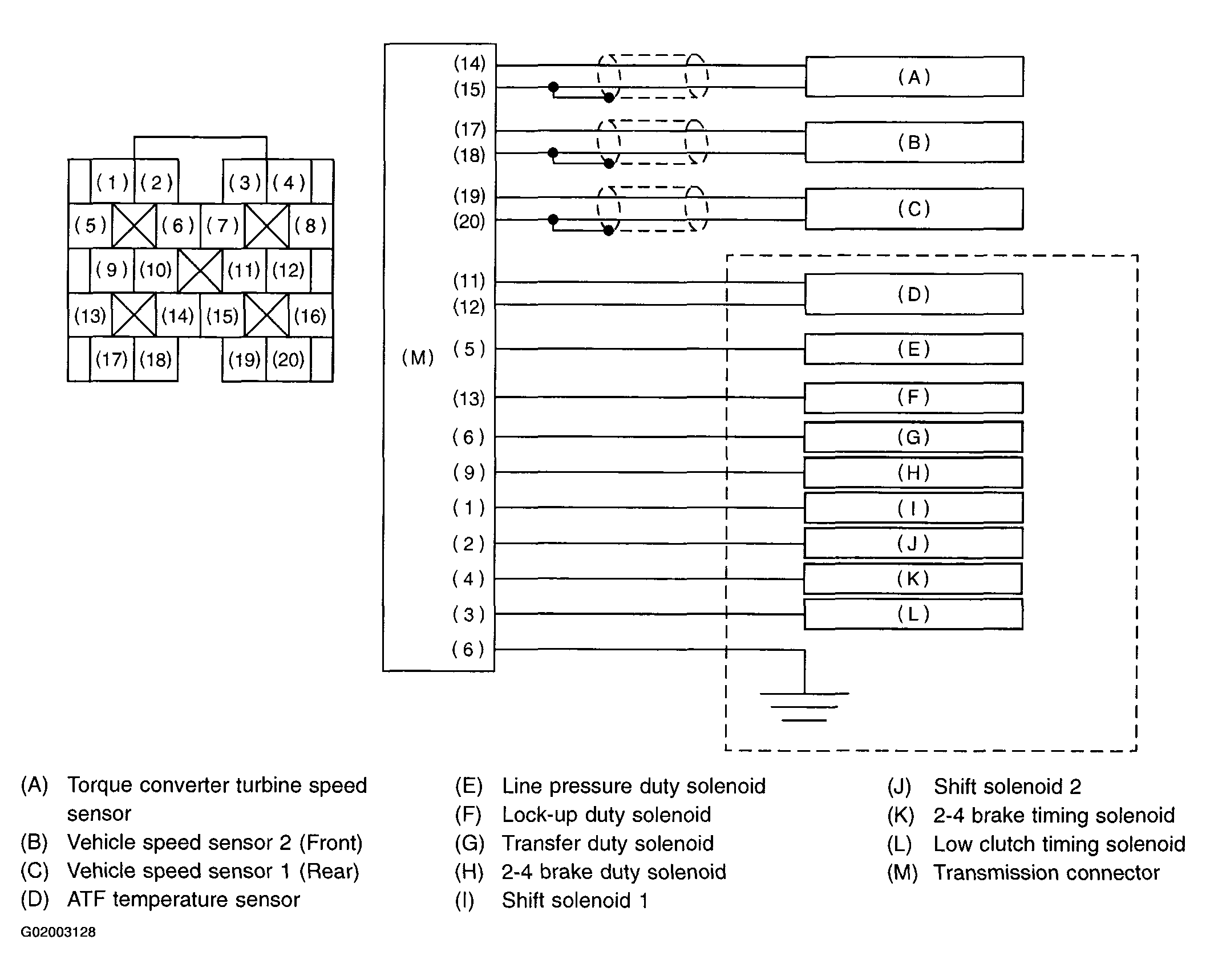

Fig 3: Transmission Harness Connector Terminal Circuits

G02003128
