Removal & Installation

WARNING: This page is about a different car, the 2001 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect battery ground terminal.

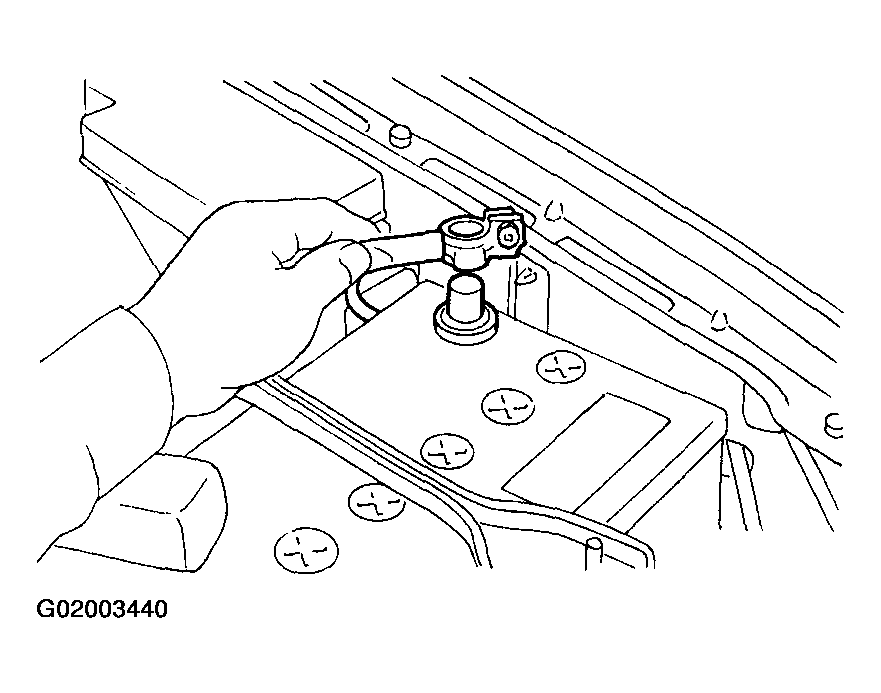

    Fig 1: Disconnecting Battery Ground Terminal
    G02003440
  2. Remove air intake duct.
  3. Disconnect connector from dropping resistor.
  4. Remove dropping resistor from bracket.

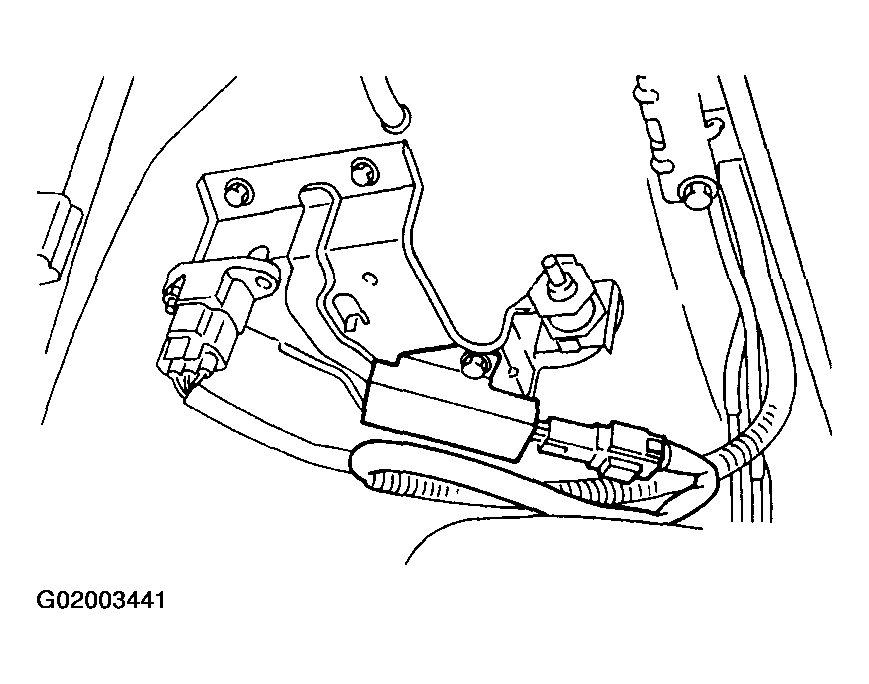

    Fig 2: Identifying Dropping Resistor
    G02003441
  5. Install dropping resistor.

    Tightening torque:  6.4+/-0.5 N.m (0.65+/-0.05 kg-m, 4.7+/-0.4 ft-lb)

    Fig 3: Installing Dropping Resistor
    G02003442
  6. Install in the reverse order of removal.
