Reduction Gear

WARNING: This page is about a different car, the 2001 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

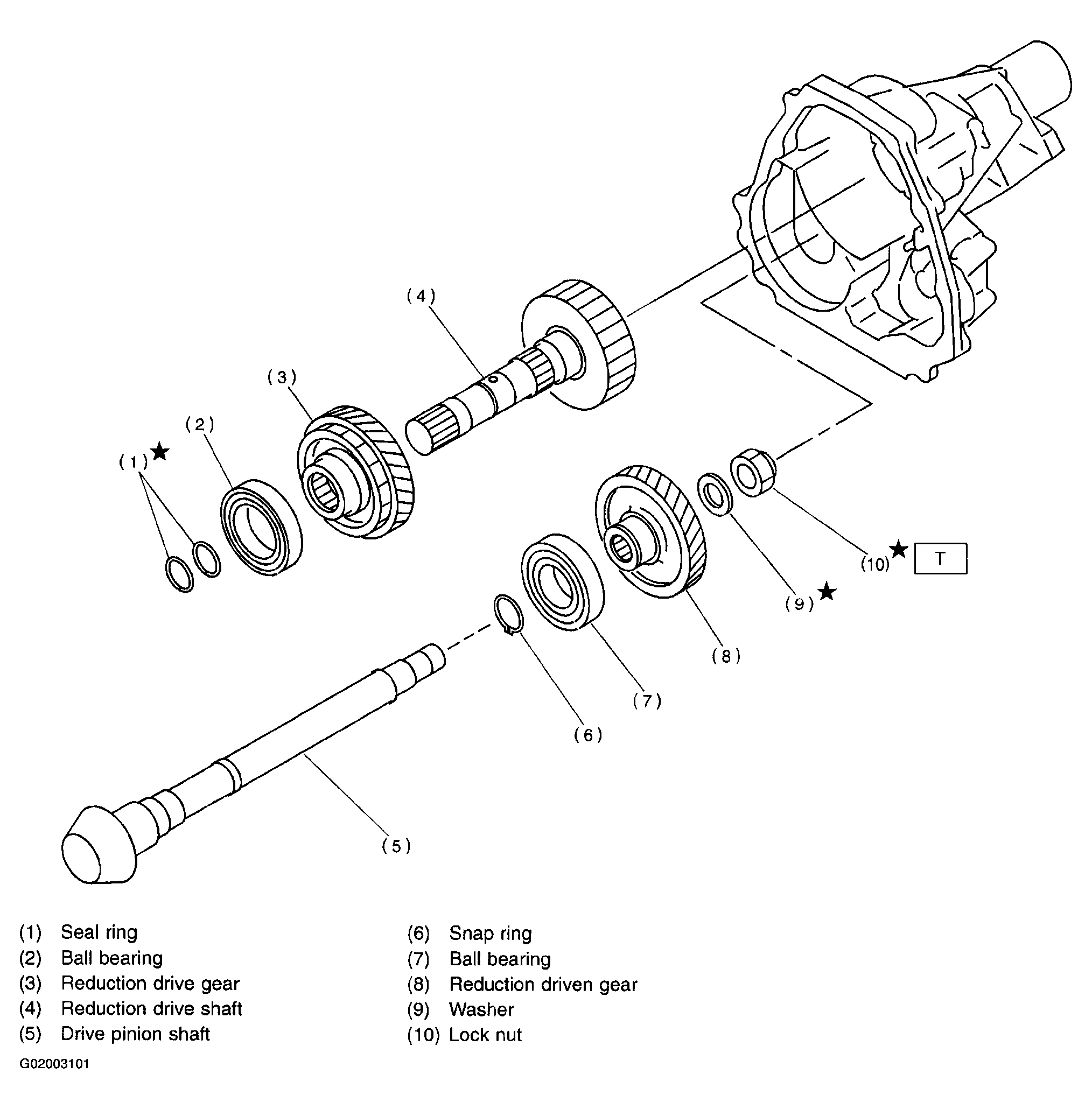

Fig 1: Identifying Reduction Gear Components
G02003101

Tightening torque: N.m (kg-m, ft-lb)

T:  100+/-5 (10.2+/-0.5, 73.8+/-3.6)
