Differential Case

WARNING: This page is about a different car, the 2001 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

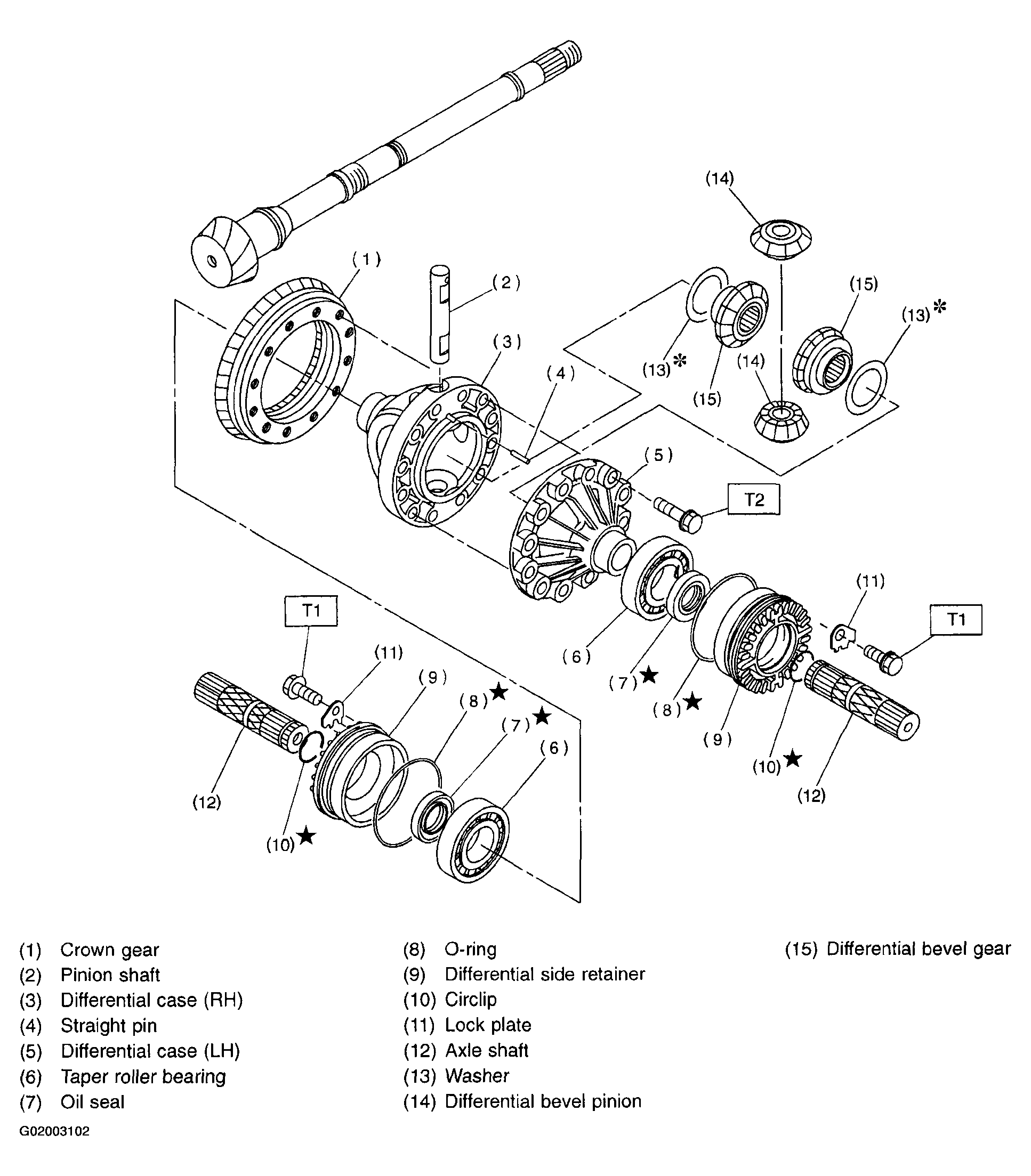

Fig 1: Identifying Differential Case Components

Tightening torque: N.m (kg-m, ft-lb)

T1: 25+/-2 (2.5+/-0.2, 18.1+/-1.4)

T2: 62+/-5 (6.3+/-0.5, 45.6+/-3.6)
