Trailer Hitch: Installation

CAUTION: Because trailer hitch is heavy, two people are required to remove it.
  1. Install in the reverse order of removal.
  2. For installation method of bolt, see the figure.

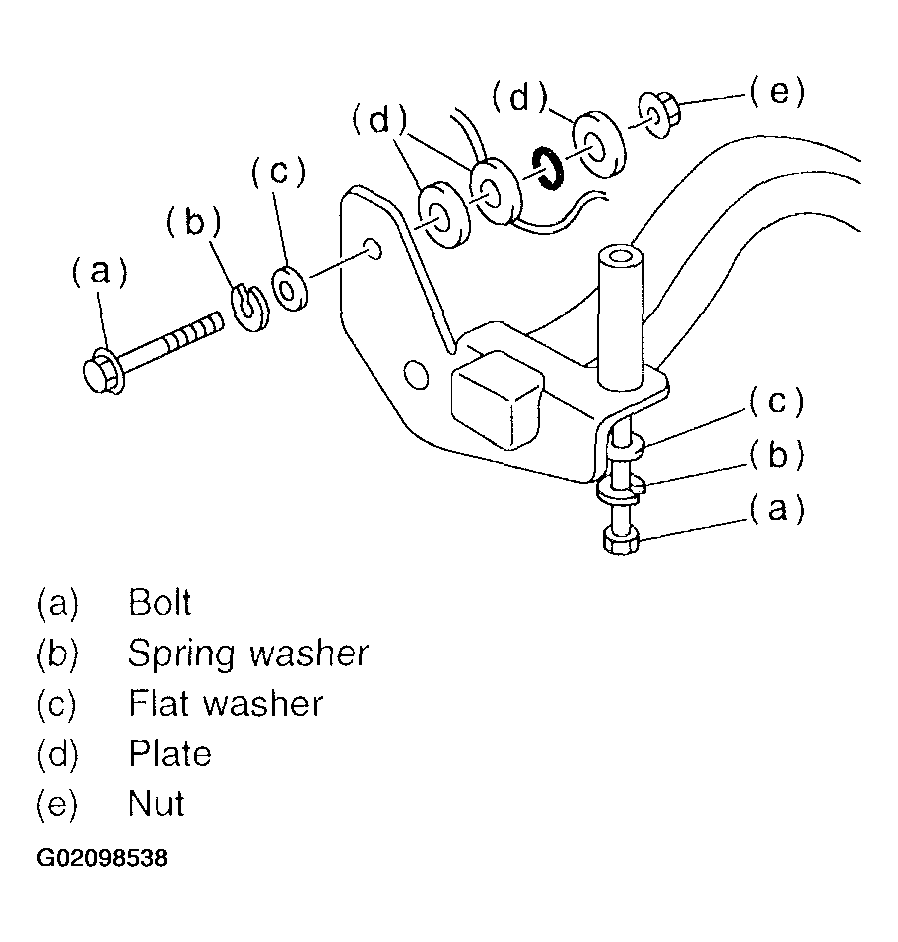

    Fig 1: Identifying Trailer Hitch Mounting Components
    G02098538
