Front Door Trim: Removal

CAUTION: Do not apply excessive force to clip. Otherwise the clip may be broken.
  1. Pull up inner remote cover toward you to remove upper hook. Pull down it to remove lower claw. Remove inner remote cover.
    Fig 1: Removing Inner Front Door Handle Cover
    G02098539
  2. Remove two hooks of switch panel to remove power window main switch.

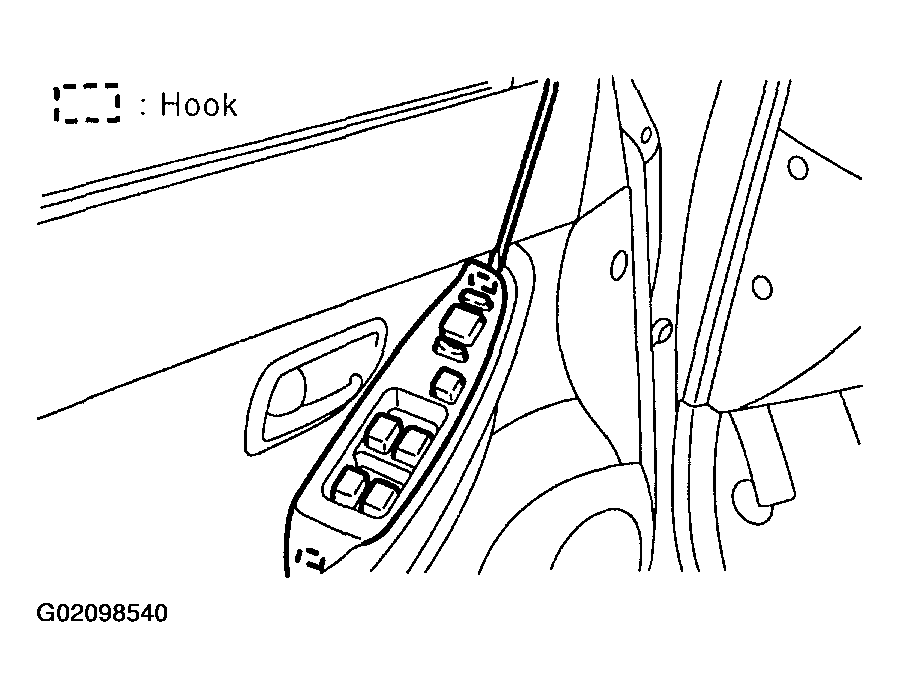

    Fig 2: Removing Power Window Main Switch
    G02098540
  3. Disconnect electrical connectors from power window main switch and mirror switch.
    Fig 3: Disconnecting Electrical Connectors From Power Window Main Switch & Mirror Switch
    G02098541
  4. Remove three screws and clips.
    Fig 4: Removing Screws & Clips
    G02098542
  5. Remove gusset cover. Disconnect electrical connectors to remove speaker.
    Fig 5: Removing Speaker
    G02098543
  6. Remove seven clips of trim panel using clip remover to remove trim panel.

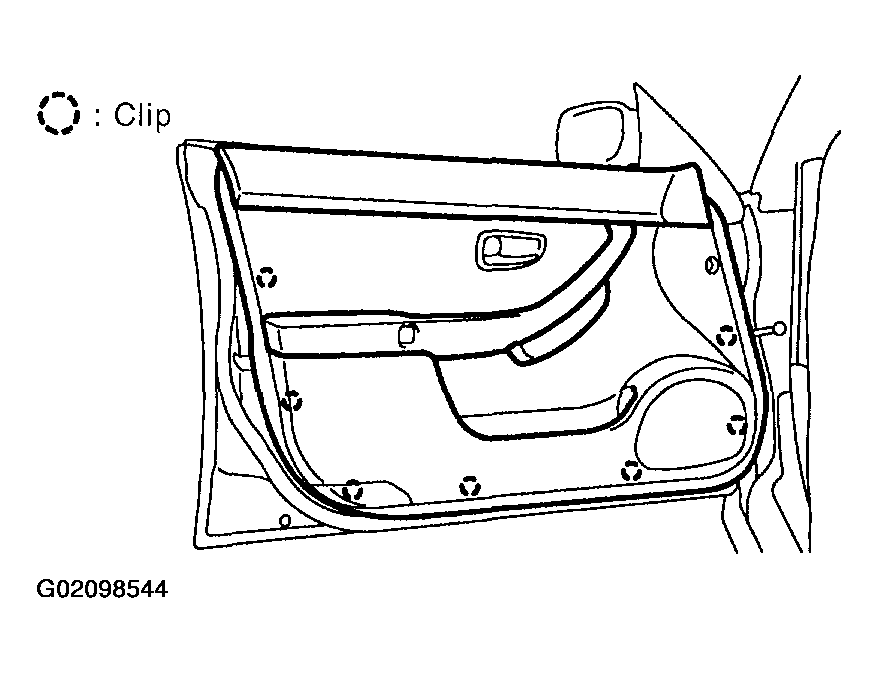

    Fig 6: Removing Clips & Trim Panel
    G02098544
