Reduction Drive Gear: Disassembly

CAUTION: Take care not to damage seal rings upon removal.

Remove 2 seal rings from reduction drive shaft. Using press and appropriate bearing splitter, remove ball bearing and reduction drive gear. See Fig 1 and Fig 2 .

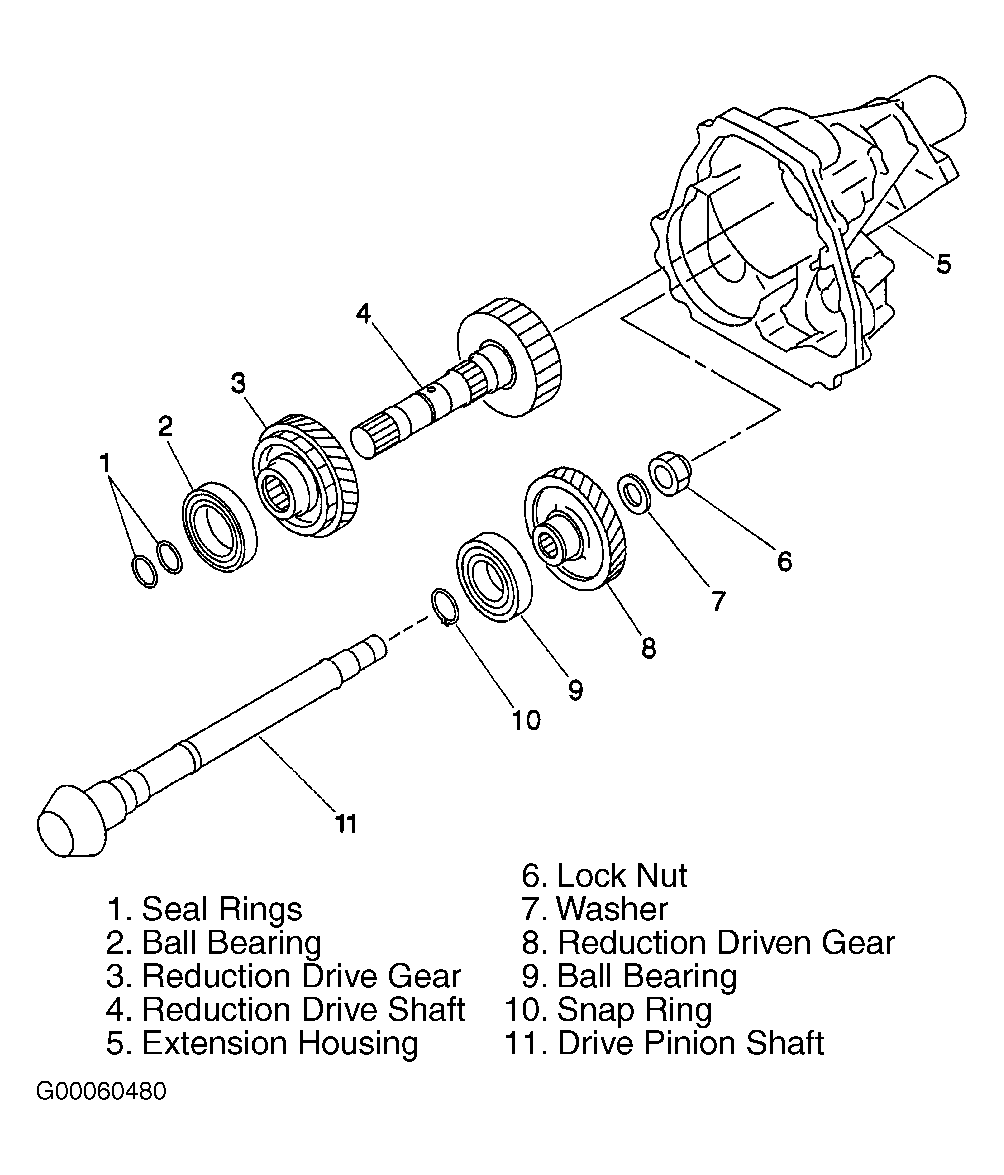

Fig 1: Identifying Reduction Drive & Driven Gear Components

Courtesy of SUBARU OF AMERICA, INC.

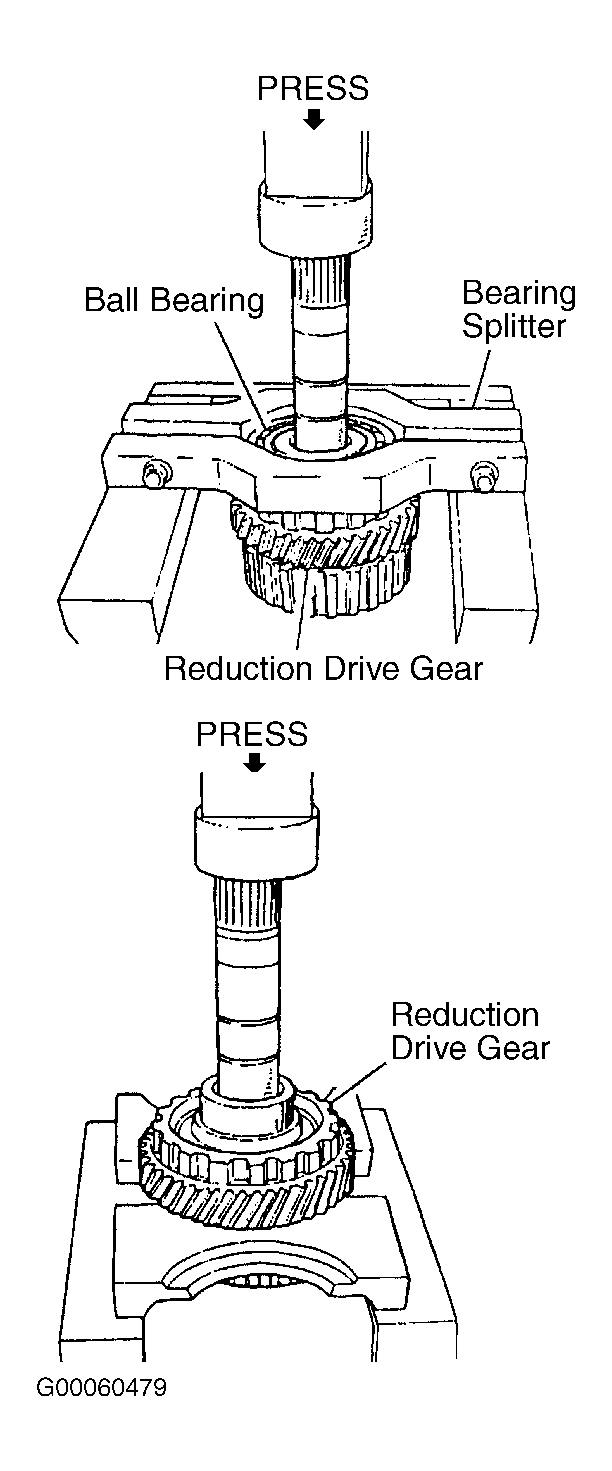

Fig 2: Removing Reduction Drive Gear Components

Courtesy of SUBARU OF AMERICA, INC.
