Disabling & Activating Air Bag System: Notes

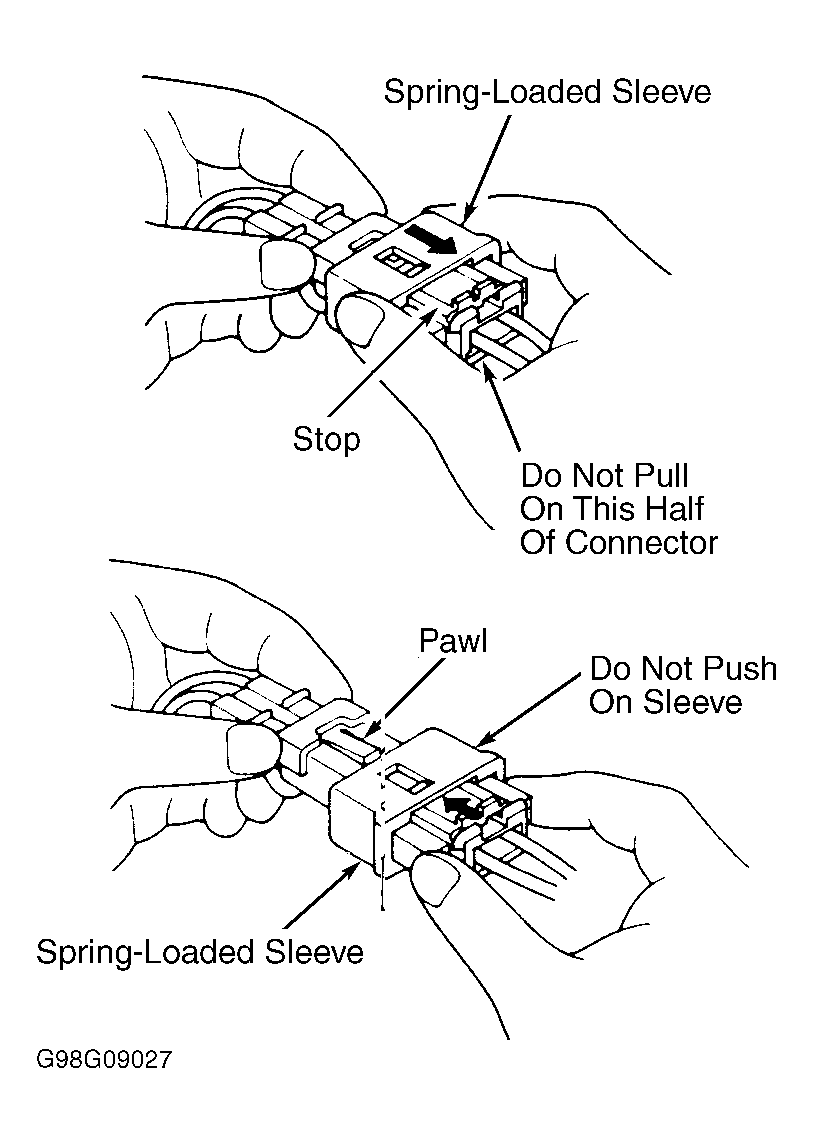

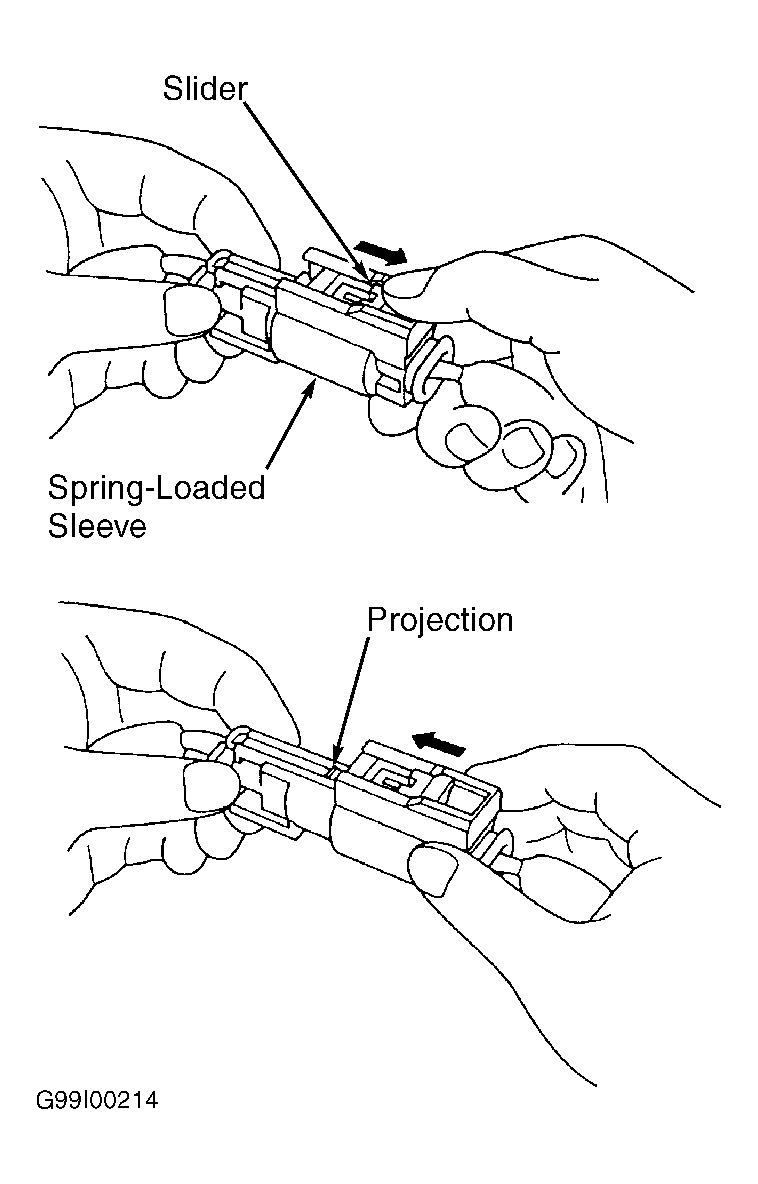

NOTE: To release SRS system connector lock, pull spring-loaded sleeve toward stop while holding opposite half of connector. Continue pulling connector sleeve and until connector halves are separated. DO NOT pull on connector half. See Figure and Figure .
