Luggage Room Light: Removal

WARNING: This page is about a different car, the 2001 Subaru Outback and 2001 Subaru Legacy. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove lens (A) and luggage room light mounting screws (B).

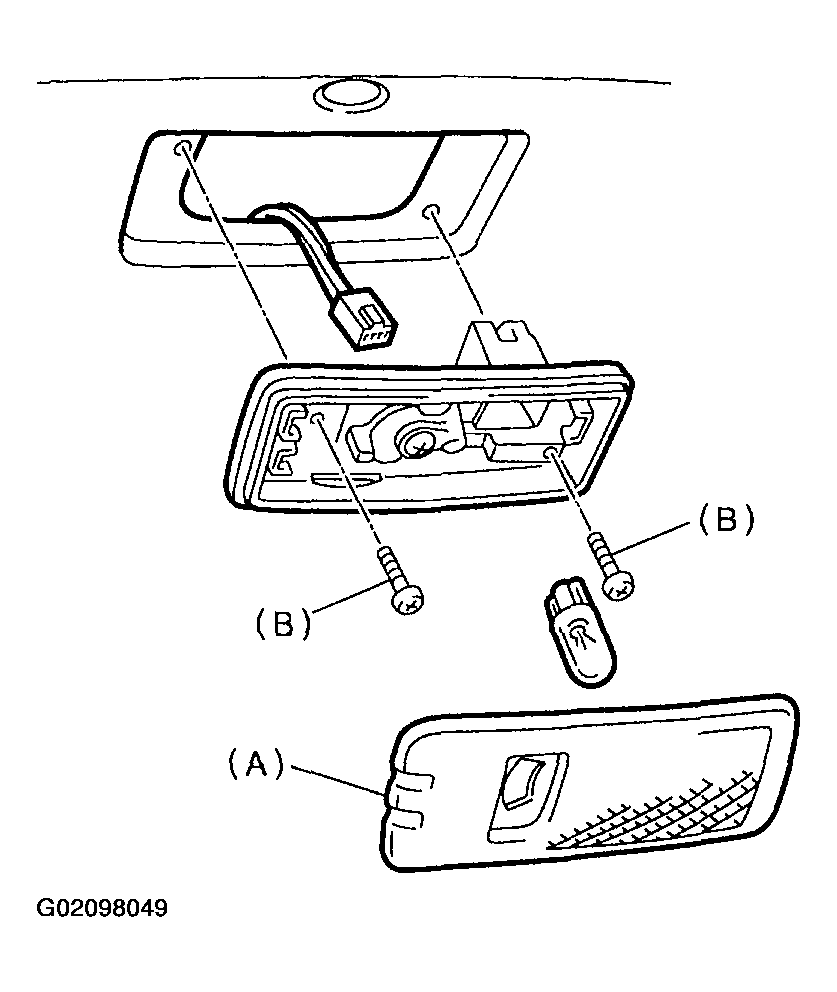

    Fig 1: Removing Lens & Luggage Room Light Mounting Screws
    G02098049
  2. Disconnect harness connectors and remove luggage room light.
