Propeller Shaft: Installation
WARNING: This page is about a different car, the 2001 Subaru Outback and 2001 Subaru Legacy. However, it is still accessible from the selected car via links, so may be relevant.

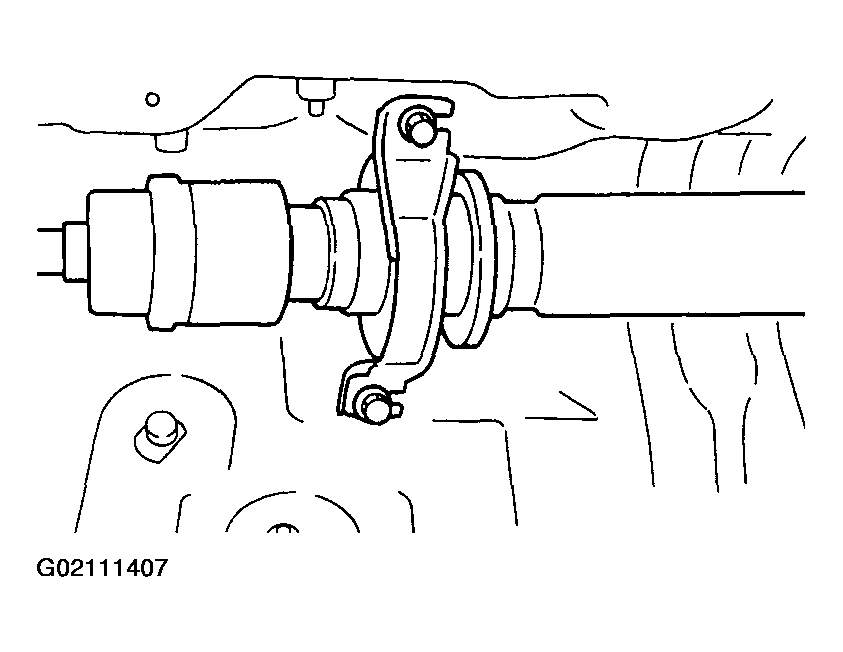

- Insert sleeve yoke into transmission and attach center bearing to body.
Tightening torque:
- 52 N.m (5.3 kgf-m, 38.3 ft-lb)

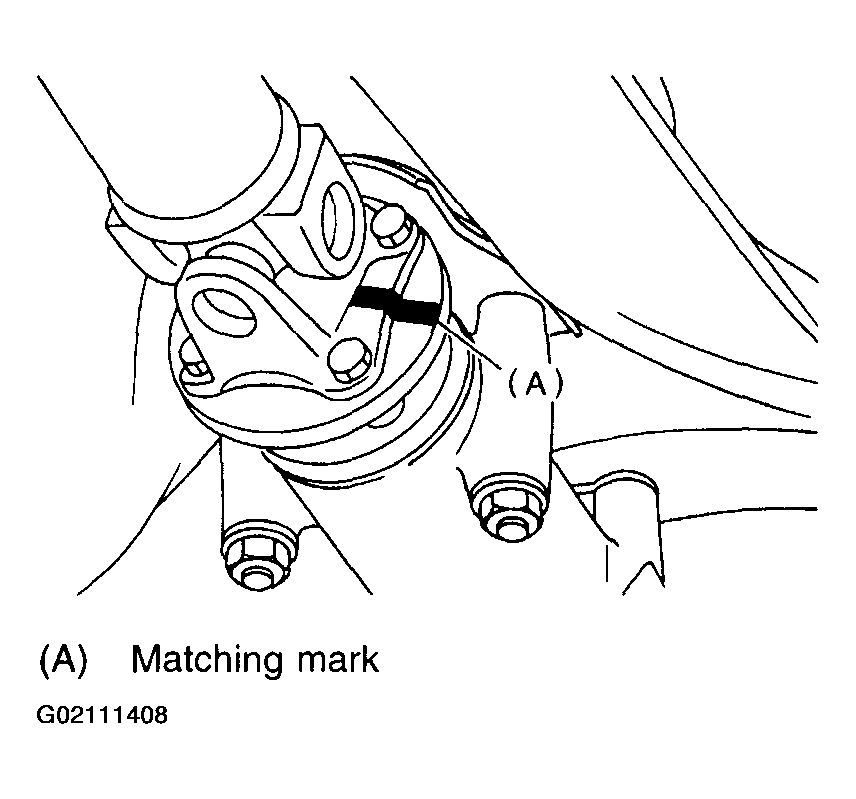

- Align matching marks and connect flange yoke and rear differential.
Tightening torque:
- 31 N.m (3.2 kgf-m, 23.1 ft-lb)
- Install heat shield cover.
- Install center exhaust pipes.
- Install rear exhaust pipe and muffler.
