Propeller Shaft

WARNING: This page is about a different car, the 2001 Subaru Outback and 2001 Subaru Legacy. However, it is still accessible from the selected car via links, so may be relevant.

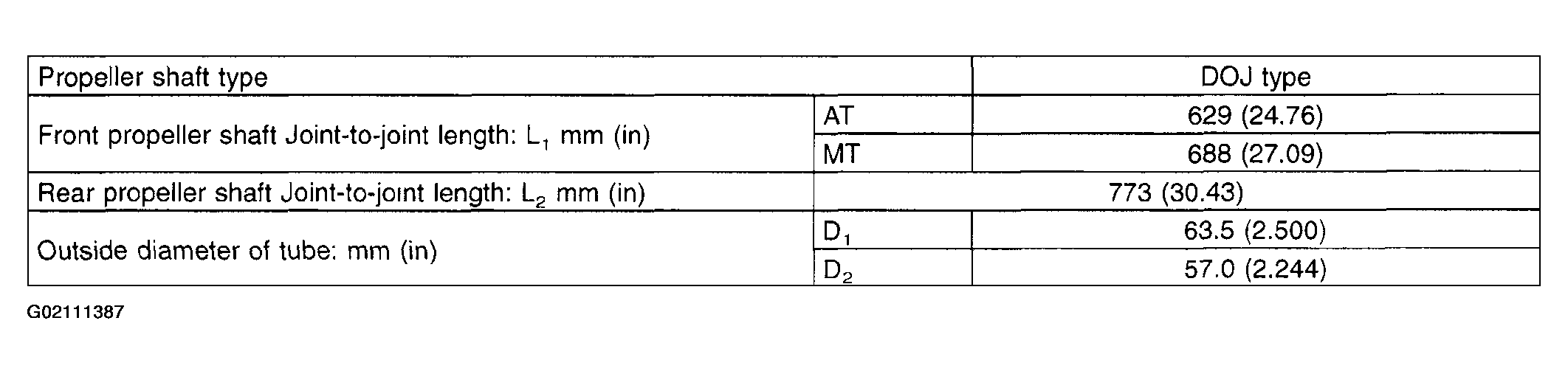

Fig 1: Propeller Shaft Dimensions Chart
G02111387

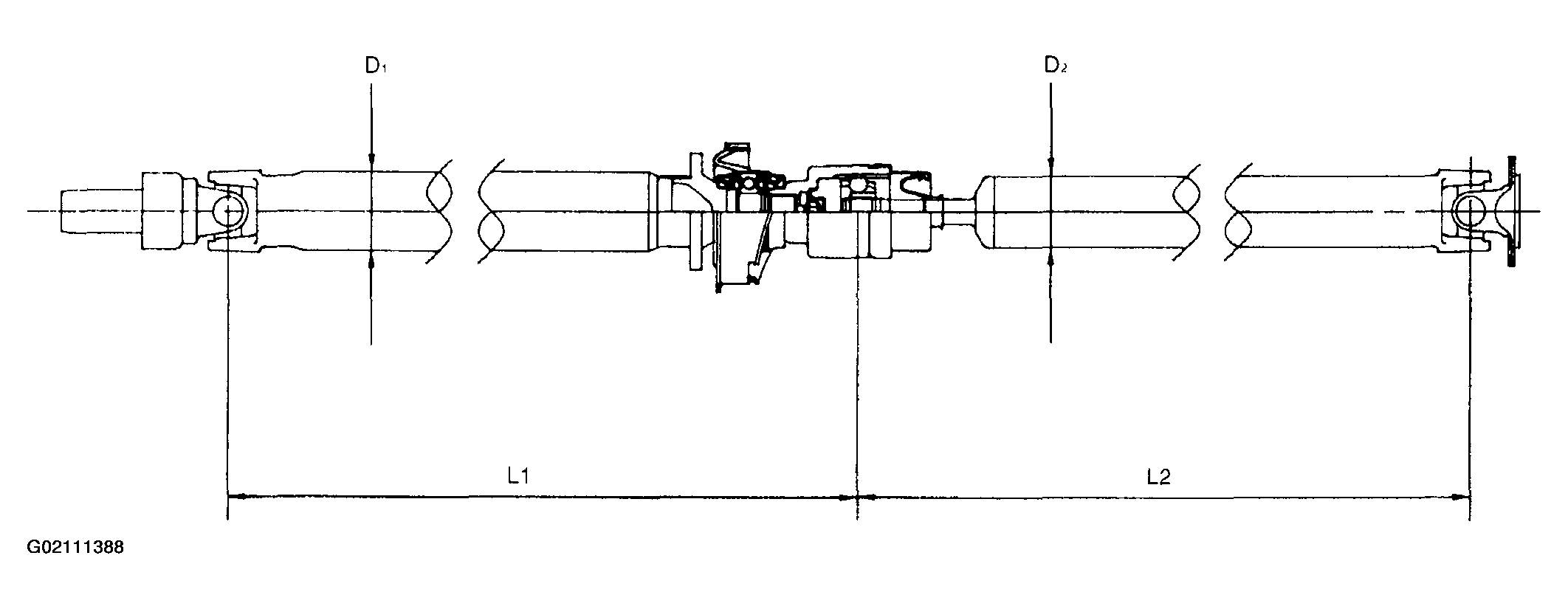

Fig 2: Illustrating Propeller Shaft Driveshaft Dimensions
G02111388
