Steering Column

Collapsible steering columns are used on all models. Column lower end is connected to steering gear pinion flange with a "U" joint. See Fig 1 . All models are equipped with an air bag module in steering wheel.

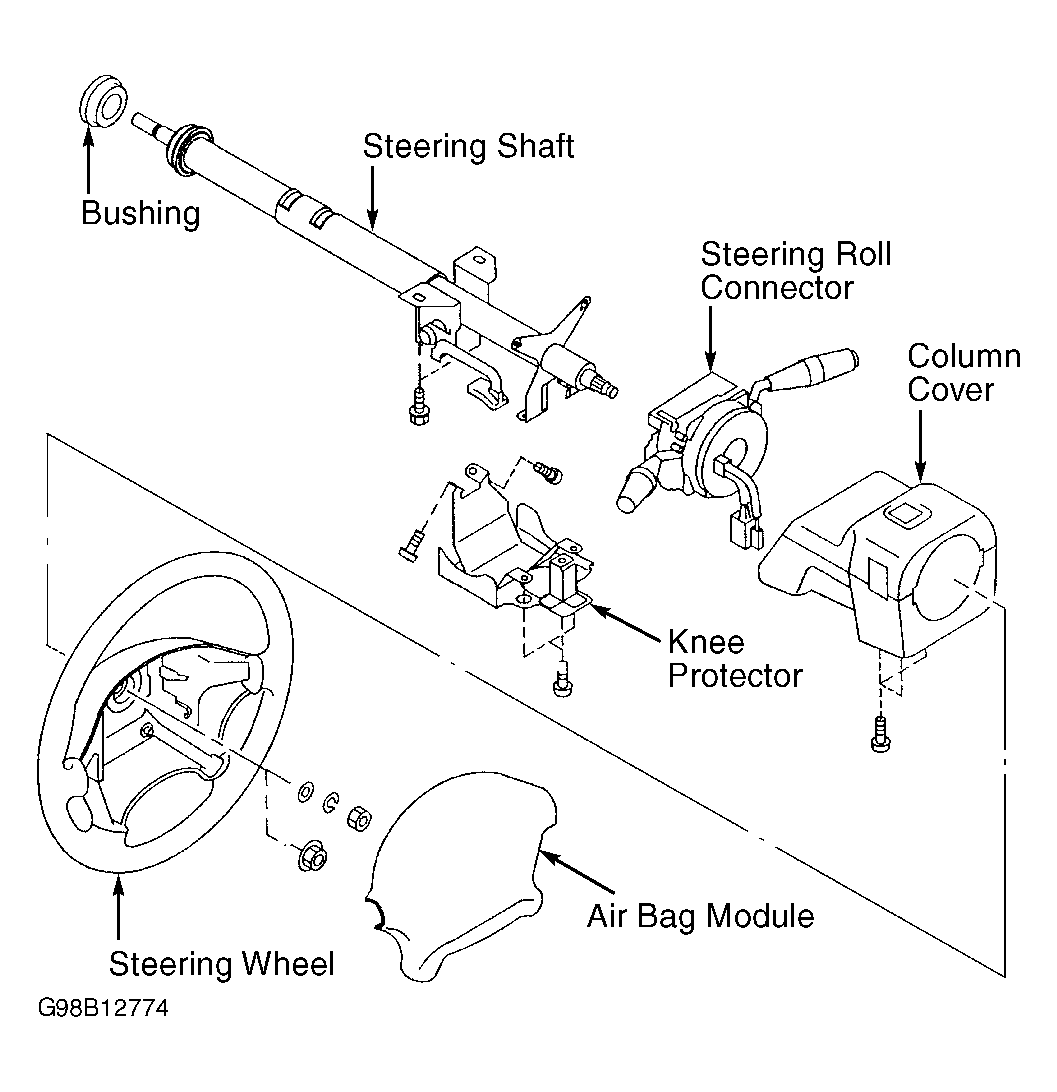

Fig 1: Identifying Steering Column Components (Typical)

Courtesy of SUBARU OF AMERICA, INC.
