Operating Cylinder: Removal

  1. Remove air cleaner case. See AIR CLEANER CASE .

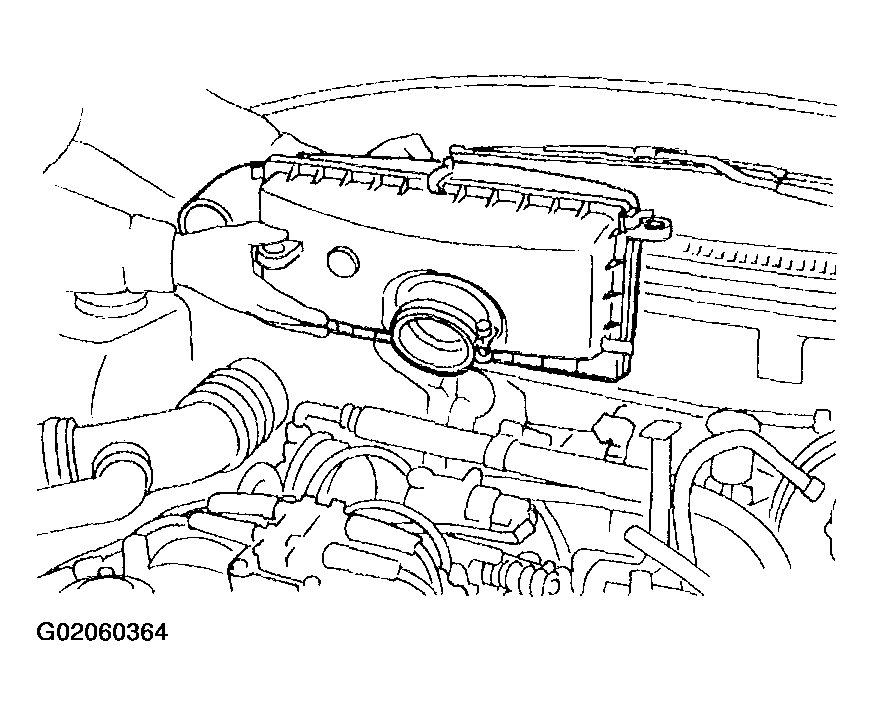

    Fig 1: Removing Air Cleaner Case
    G02060364
  2. Remove clutch hose from operating cylinder.
    CAUTION: Cover hose joint to prevent brake fluid from flowing out.

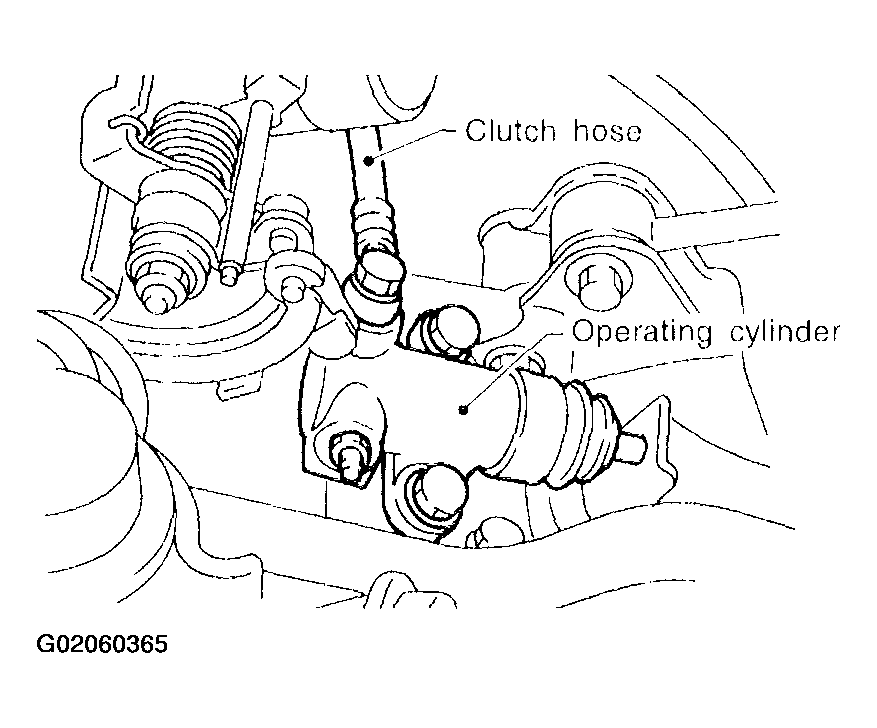

    Fig 2: Removing Clutch Hose From Operating Cylinder
    G02060365
  3. Remove operating cylinder from transmission.

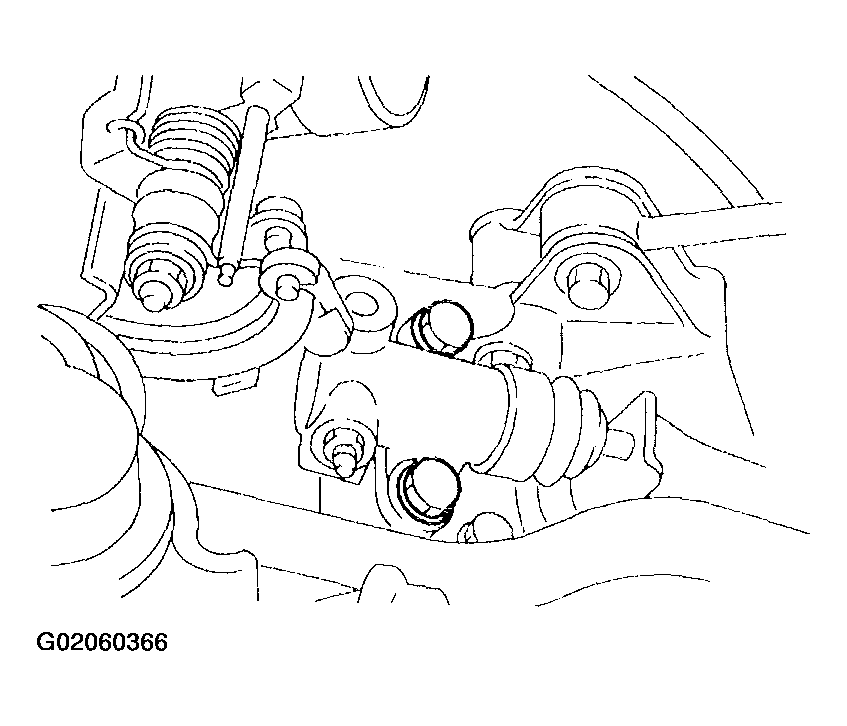

    Fig 3: Removing Operating Cylinder From Transmission
    G02060366
