Clutch System: Flywheel: Installation

Install flywheel and ST.
1. ST 498497100 CRANKSHAFT STOPPER

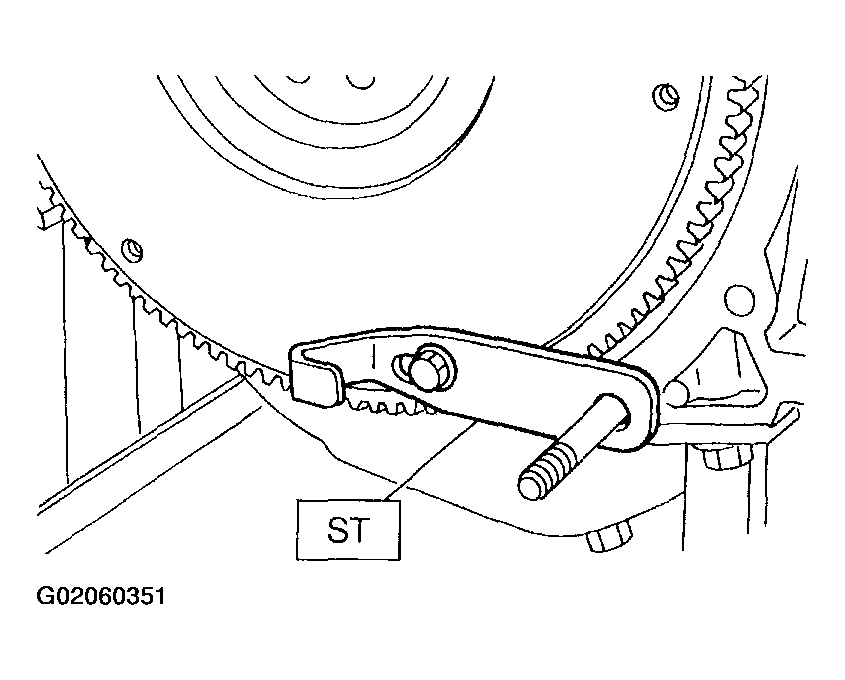

Fig 1: Identifying ST 498497100 Crankshaft Stopper
Tighten the flywheel attaching bolts to the specified torque.
NOTE: Tighten flywheel installing bolts gradually. Each bolt should be tightened to the specified torque in a crisscross fashion.
1. Tightening torque: 72 N.m (7.3 kgf-m, 52.8 ft-lb)

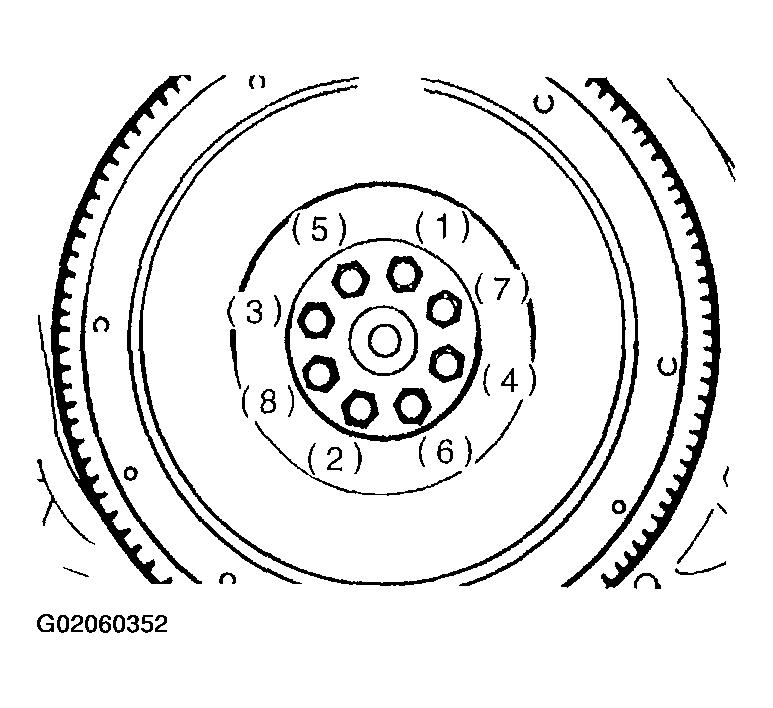

Fig 2: Tightening Flywheel Bolts In Crisscross Fashion
