Home >> Subaru >> 2000 >> Impreza Outback Sport, Standard >> Repair and Diagnosis >> Transmission >> Clutch System >> Flywheel >> Inspection

Clutch System: Flywheel: Inspection

CAUTION: Since this bearing is grease sealed and is of a non-lubrication type, do not wash with gasoline or any solvent.
  1. Damage of facing and ring gear.

    If defective, replace flywheel.

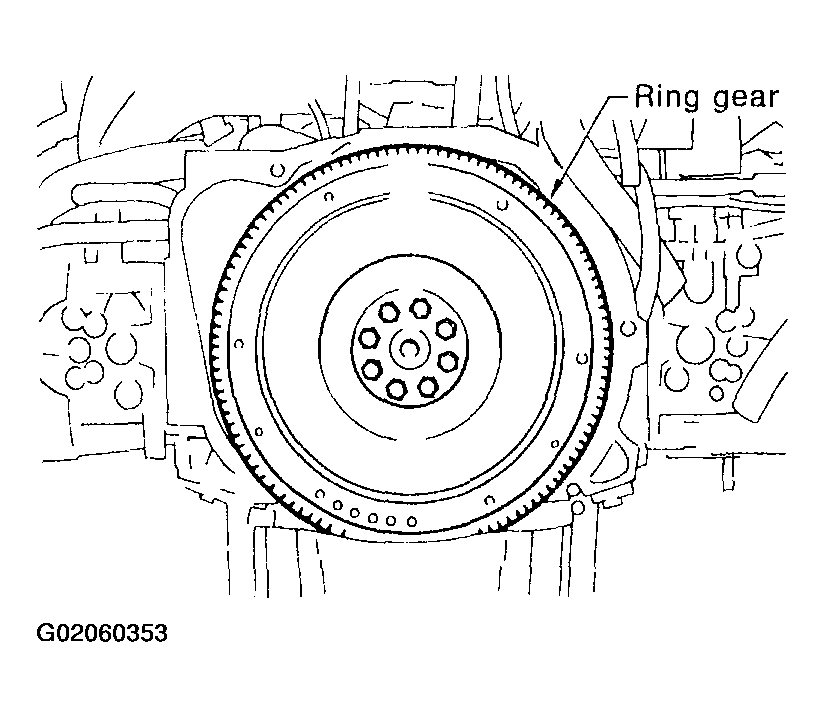

    Fig 1: Checking For Damage Of Facing & Ring Gear
    G02060353
  2. Smoothness of rotation

    Rotate ball bearing applying pressure in thrust direction.

  3. If noise or excessive play is noted, replace fly Wheel.
