Oil Pump: Inspection: Notes

Perform the following inspection procedures and repair or replace defective parts.

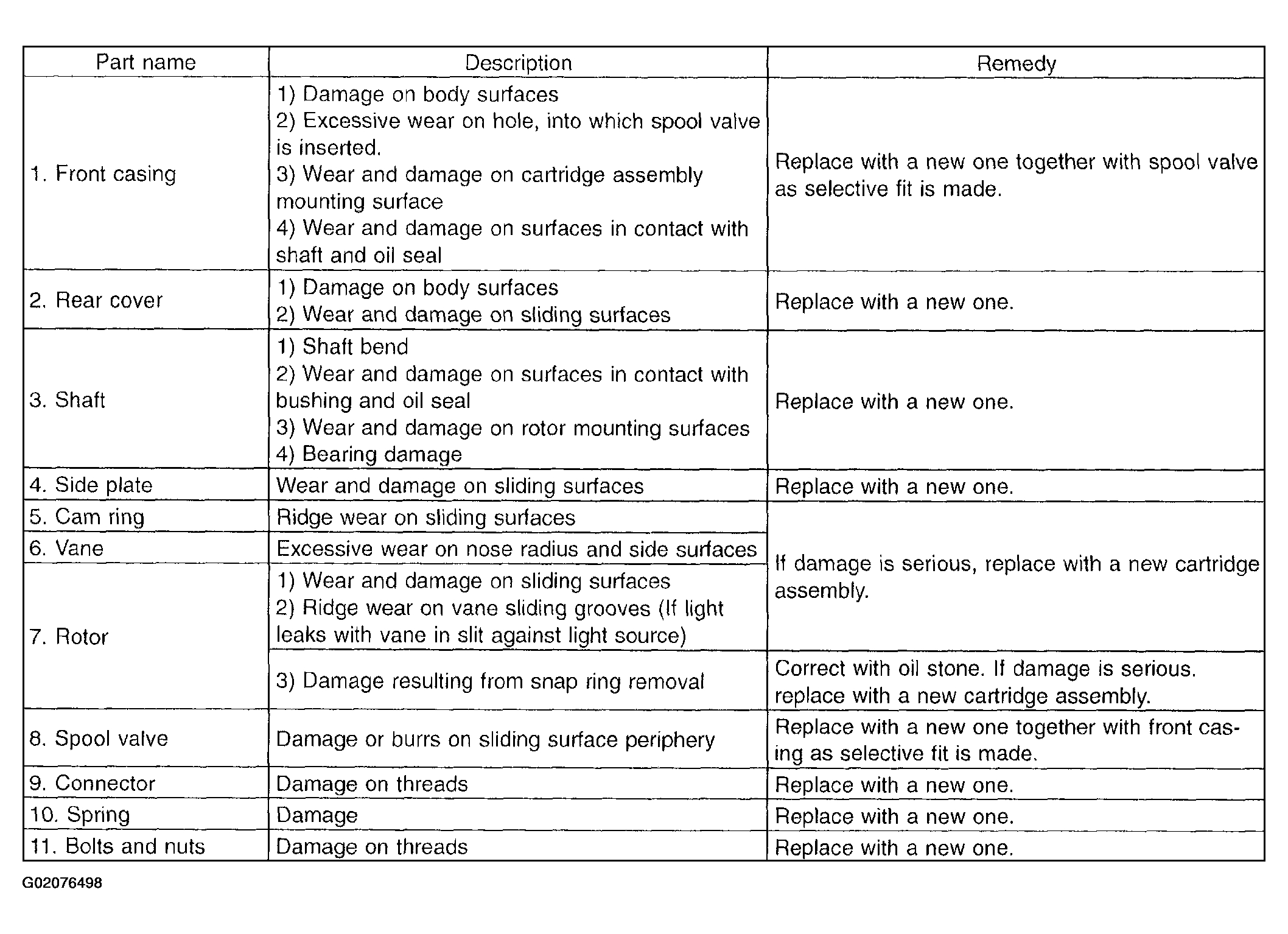

Fig 1: Oil Pump Inspection Chart (1 Of 2)
G02076498

In accordance with the following table, check all removed parts for wear and damage, and make repair or replacement if necessary.

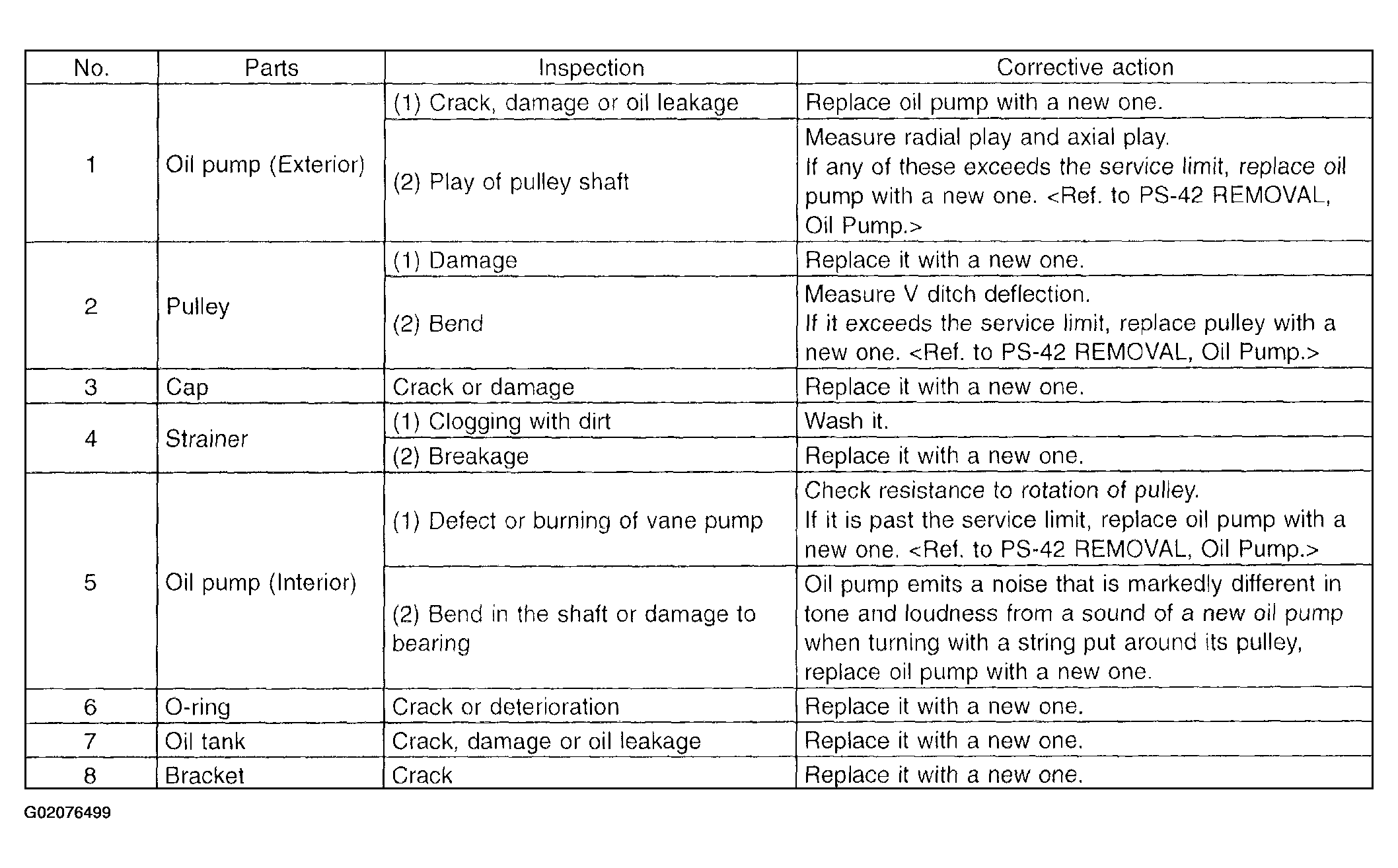

Fig 2: Oil Pump Inspection Chart (2 Of 2)
G02076499
