Power Steering: General Description: Specifications

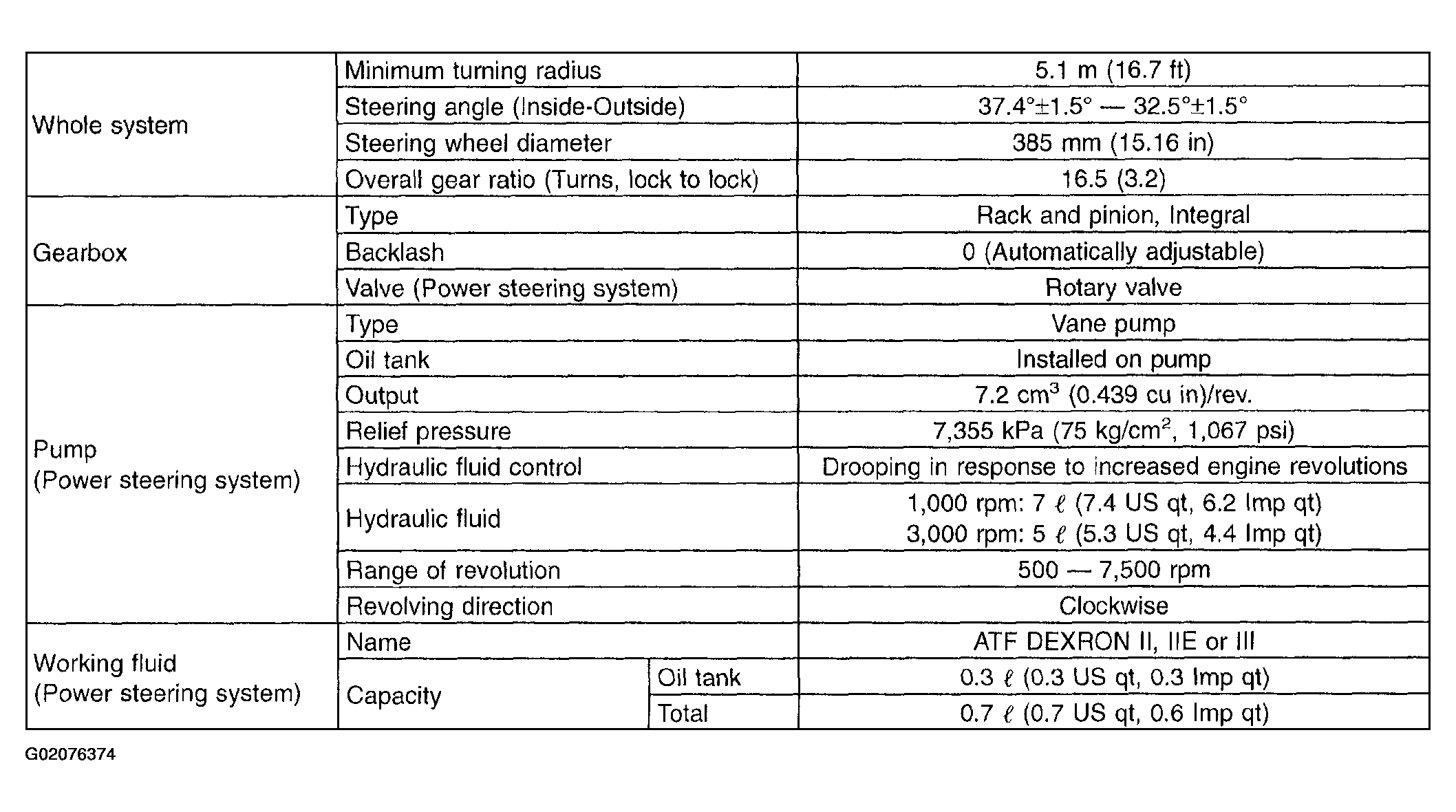

Fig 1: Power Assisted System Power Steering Specifications Chart (1 Of 2)

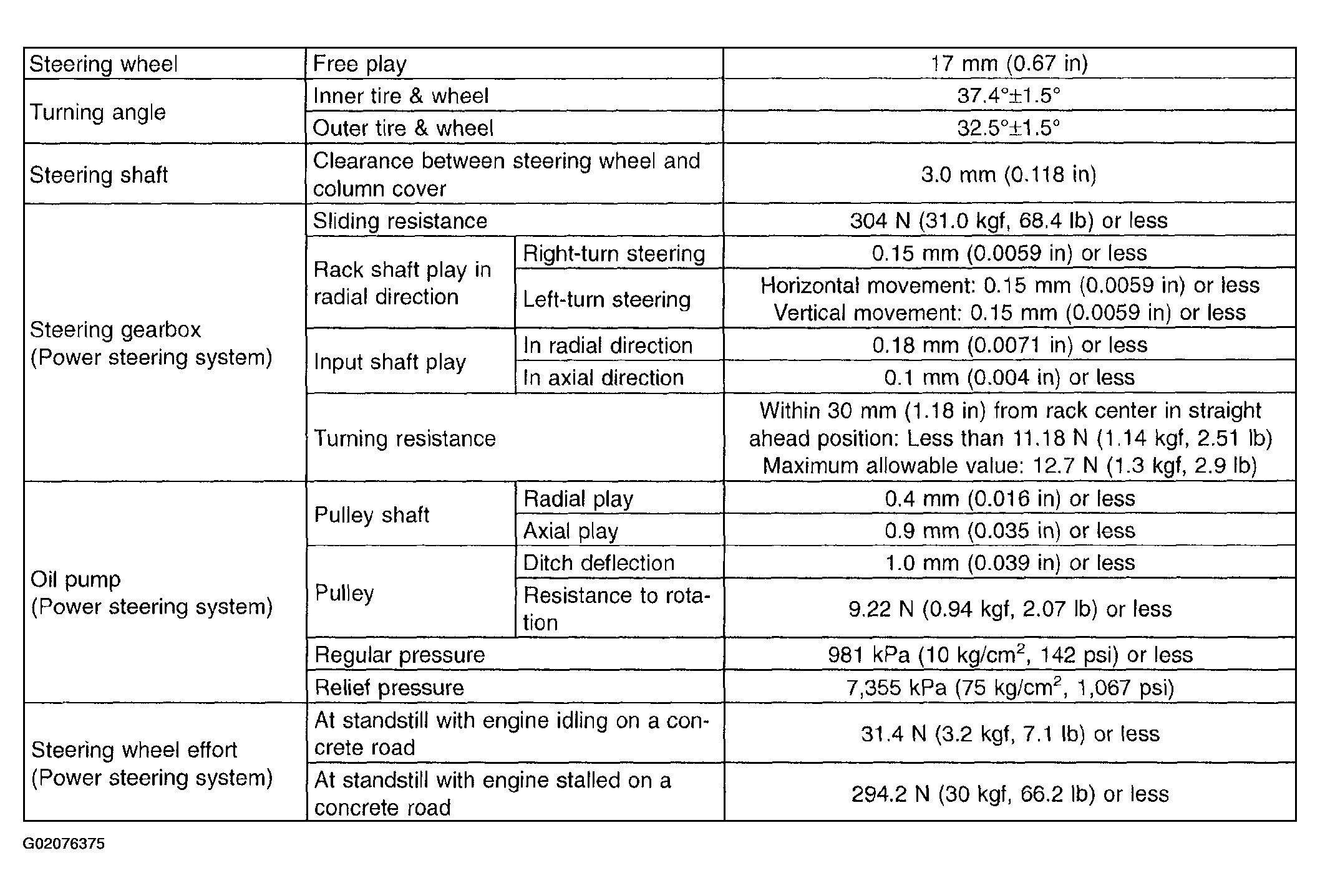

Fig 2: Power Assisted System Power Steering Specifications Chart (2 Of 2)

Fig 3: Power Steering Fluid Specifications Chart

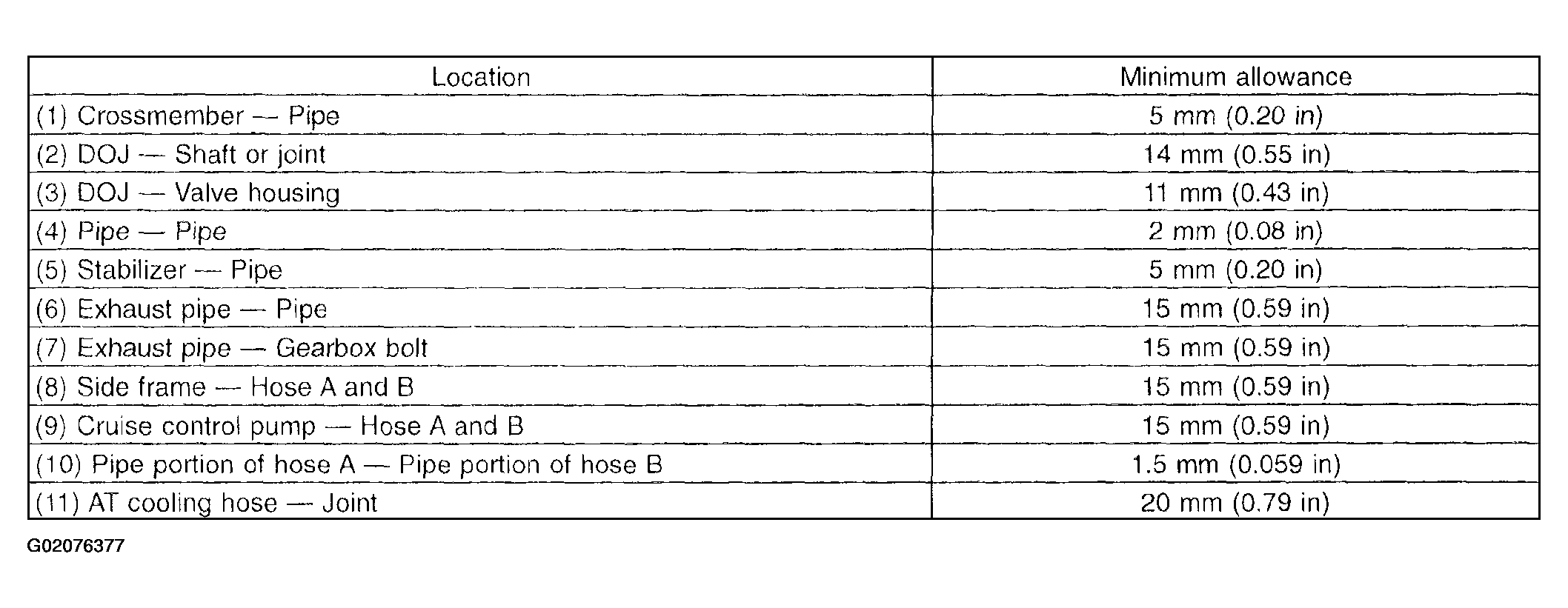

CAUTION: This table lists various clearances that must be correctly adjusted to ensure normal vehicle driving without interfering noise, or any other faults.

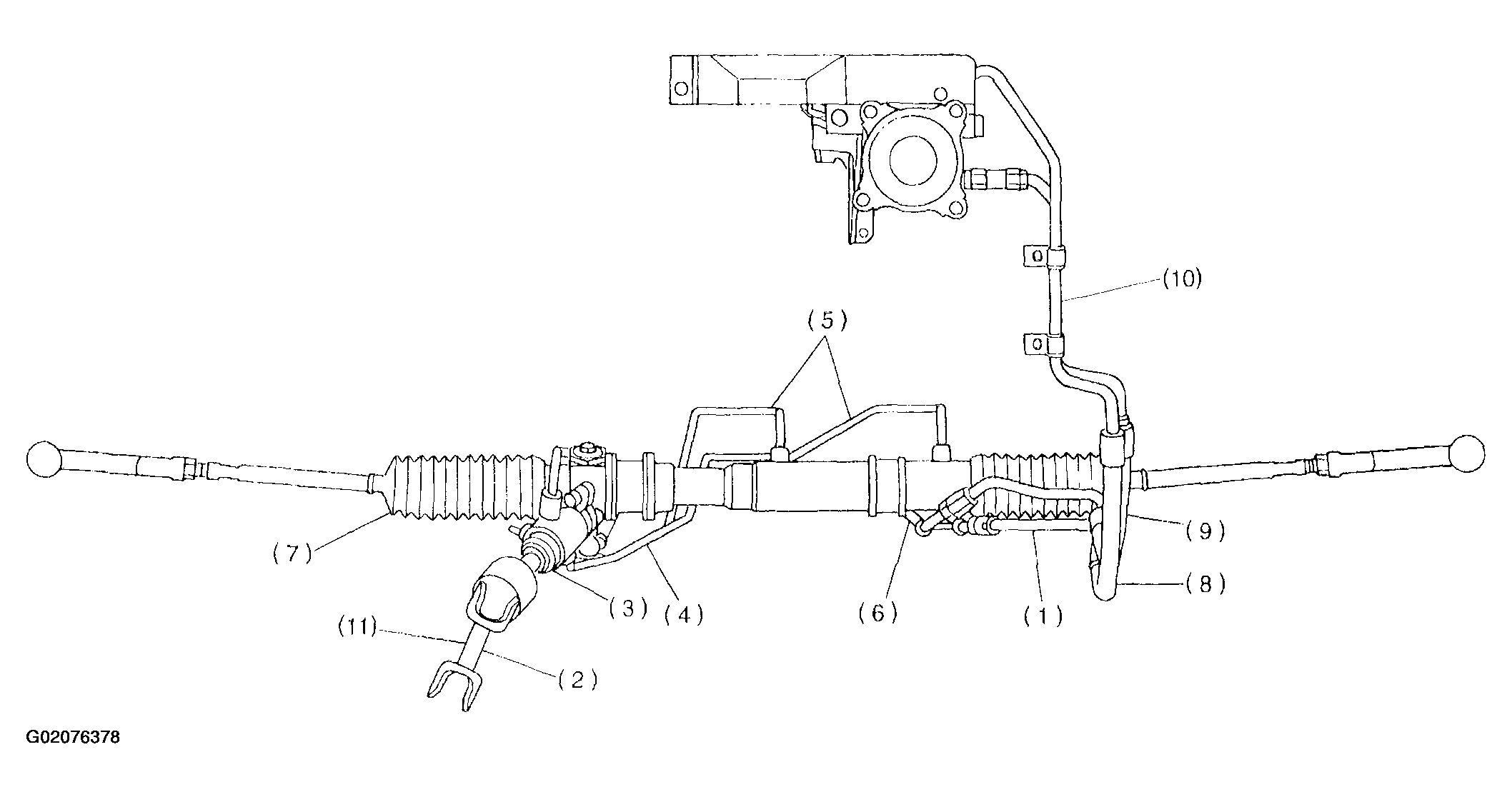

Fig 4: Identifying Power Assisted System Power Steering Components (1 Of 2)

Fig 5: Identifying Power Assisted System Power Steering Components (2 Of 2)
