Power Assisted System

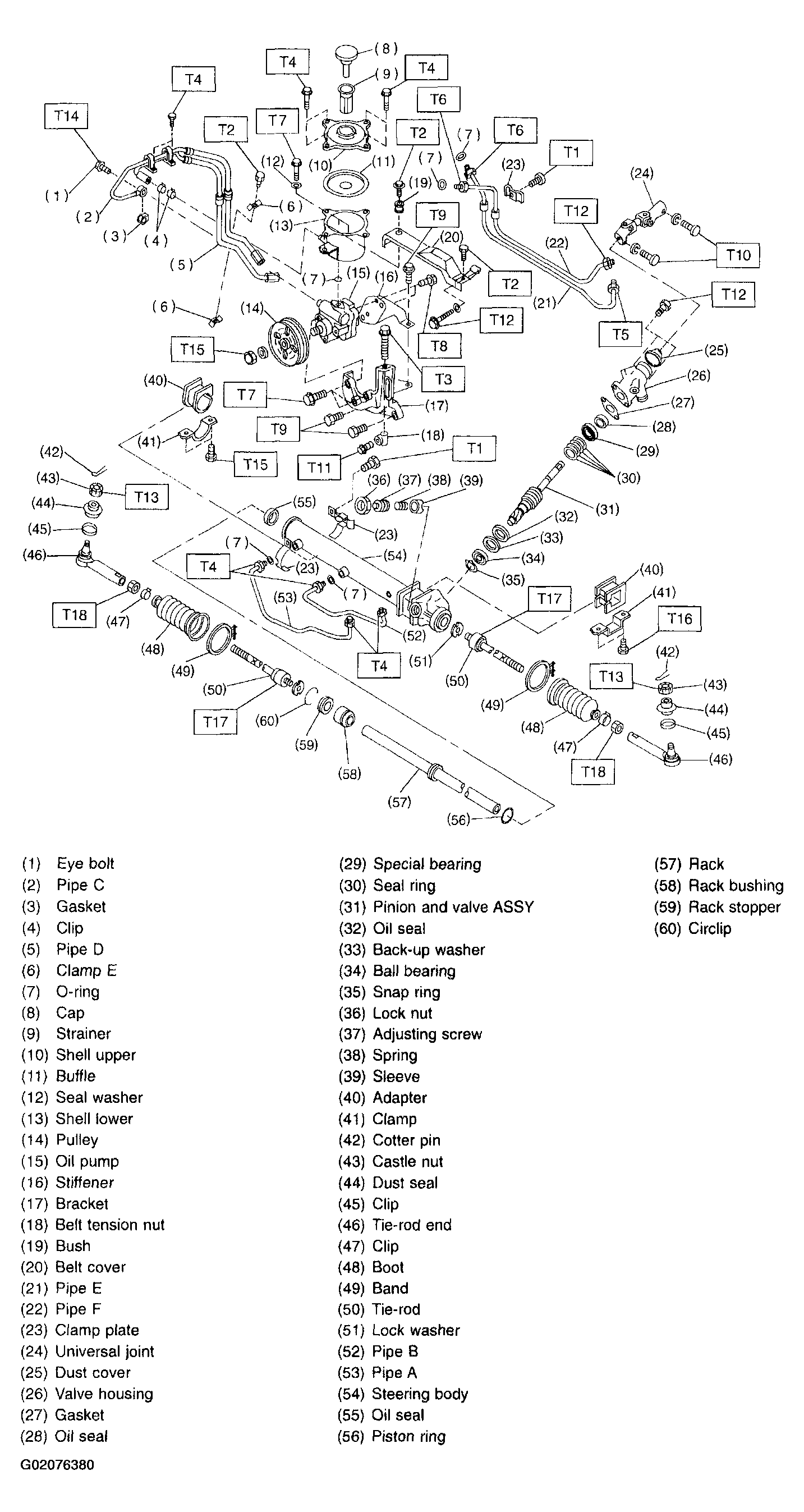

Fig 1: Exploded View Of Power Steering System

Tightening torque: N.m (kgf-m, ft-lb)

1. T1:  6 (0.6, 4.3)
2. T2:  7.4 (0.75, 5.4)
3. T3:  8 (0.8, 5.8)
4. T4:  13 (1.3, 9.4)
5. T5:  15 (1.5, 10.8)
6. T6:  15 (1.5, 10.8)
7. T7:  18 (1.8, 13.0)
8. T8:  20.1 (2.05, 14.8)
9. T9:  22 (2.2, 15.9)
10. T10:  24 (2.4, 17.4)
11. T11  : 25 (2.5, 18.1)
12. T12:  25 (2.5, 18.1)
13. T13:  27 (2.75, 19.9)
14. T14:  39 (4.0, 28.9)
15. T15:  52 (5.3, 38)
16. T16:  59 (6.0, 43)
17. T17:  78 (8.0, 58)
18. T18:  83 (8.5, 61.5)
