Cruise Control Replacement Kit (WXP-73R)
Reference number: WXP-73R
CRUISE CONTROL REPLACEMENT KIT
SERVICE CAMPAIGN BULLETIN
| SUBARU: | 1999 Model Year Legacy Brighton |
SERVICE INFORMATION
Subaru of America, Inc. has determined that a number of 1999 Model Year Legacy Brighton vehicles, that have had optional cruise control systems installed, require the installation of a replacement cruise control kit. The kit contains parts necessary to replace dealer and port installed systems. The replacement kits are designed to improve the durability and eliminate possible wear of the power steering hose over an extended period of time/milage.
Subaru of America, Inc. will provide all known owners of affected vehicles notification by First Class Mail. Owners will be requested to contact a Subaru Dealer to arrange for installation of the replacement cruise control kit.
VEHICLES INVOLVED
The affected vehicles are 1999 Model Year Legacy Brighton vehicles with Optional Cruise Control Systems. The respective Vehicle Identification Numbers are listed in VEHICLE IDENTIFICATION NUMBERS OF EFFECTED VEHICLES .
OWNER NOTIFICATION
SOA will prepare and mail an Owner Notification Letter to the owners of all potentially affected vehicles.
The Owner Notification Letter is scheduled for mailing on October 11, 1999. A copy of the Owner Notification Letter is included in this publication.
DEALER PROGRAM RESPONSIBILITY
Dealers are to promptly correct all affected vehicles in accordance with the instructions in the service procedure section of this bulletin. Additionally, whenever a vehicle subject to this service program is taken into new or used vehicle inventory, or is in your dealership for service in the future, you should take the necessary steps to be sure the service program correction has been made before selling of releasing the vehicle.
Dealers are to contact owners of vehicles sold since the date of the computer listing from your vehicle inventory and provide them with a copy of the owner notification letter and arrange to make the required correction according to the instructions in the service procedures section of this bulletin.
Dealers should install the Campaign Completion Label on all vehicles which have the service procedure completed. Additional quantities of the labels are available upon request to your regional office.
| 4S3BK4250X7301405 |
| 4S3BK4250X7306698 |
| 4S3BK4250X7306815 |
| 4S3BK4250X7308743 |
| 4S3BK4250X7309455 |
| 4S3BK4250X7309620 |
| 4S3BK4251X6304951 |
| 4S3BK4251X6305873 |
| 4S3BK4251X6308787 |
| 4S3BK4251X6308899 |
| 4S3BK4251X6309101 |
| 4S3BK4251X6309163 |
| 4S3BK4251X7301879 |
| 4S3BK4251X7303020 |
| 4S3BK4251X7307455 |
| 4S3BK4251X7307617 |
| 4S3BK4251X7308878 |
| 4S3BK4252X6307034 |
| 4S3BK4252X7302104 |
| 4S3BK4252X7302281 |
| 4S3BK4252X7305035 |
| 4S3BK4253X6306409 |
| 4S3BK4253X6308872 |
| 4S3BK4253X6310234 |
| 4S3BK4253X6310248 |
| 4S3BK4253X7301317 |
| 4S3BK4253X7301592 |
| 4S3BK4253X7302225 |
| 4S3BK4253X7302368 |
| 4S3BK4253X7307053 |
| 4S3BK4253X7307148 |
| 4S3BK4253X7308901 |
| 4S3BK4253X7309286 |
| 4S3BK4254X6300859 |
| 4S3BK4254X6304958 |
| 4S3BK4254X6306404 |
| 4S3BK4254X7301228 |
| 4S3BK4254X7308986 |
| 4S3BK4254X7309507 |
| 4S3BK4254X7309619 |
| 4S3BK4255X6301843 |
| 4S3BK4255X7301271 |
| 4S3BK4255X7301304 |
| 4S3BK4255X7302291 |
| 4S3BK4255X7306907 |
| 4S3BK4255X7308690 |
| 4S3BK4255X7308740 |
| 4S3BK4256X6303021 |
| 4S3BK4256X6307876 |
| 4S3BK4256X6310101 |
| 4S3BK4256X7301876 |
| 4S3BK4256X7303269 |
| 4S3BK4256X7309086 |
| 4S3BK4257X6308874 |
| 4S3BK4257X6308910 |
| 4S3BK4257X7301305 |
| 4S3BK4257X7302535 |
| 4S3BK4257X7307623 |
| 4S3BK4257X7308402 |
| 4S3BK4257X7308786 |
| 4S3BK4257X7308903 |
| 4S3BK4257X7309663 |
| 4S3BK4258X6301996 |
| 4S3BK4258X6306552 |
| 4S3BK4258X6309256 |
| 4S3BK4258X7301278 |
| 4S3BK4258X7302558 |
| 4S3BK4258X7308506 |
| 4S3BK4258X7308697 |
| 4S3BK4259X6301635 |
| 4S3BK4259X6306155 |
| 4S3BK4259X6310156 |
| 4S3BK4259X7301161 |
| 4S3BK4259X7301273 |
| 4S3BK4259X7301340 |
| 4S3BK4259X7301435 |
| 4S3BK4259X7301595 |
| 4S3BK4259X7305310 |
| 4S3BK4259X7307090 |
| 4S3BK425XX6300946 |
| 4S3BK425XX6306052 |
| 4S3BK425XX6306147 |
| 4S3BK425XX6306150 |
| 4S3BK425XX6310148 |
| 4S3BK425XX7309382 |
| 4S3BK425XX7309477 |
PARTS INFORMATION
Each Subaru dealer with vehicles affected by this service Program should order the replacement kit from your facing RDC.
| Quantity | Description | Dealer Cost | Suggested Retail Price |
|---|---|---|---|
| 1 | Cruise Control Replacement Kit P# T1010AS000 | $49.40 | $69.16 |

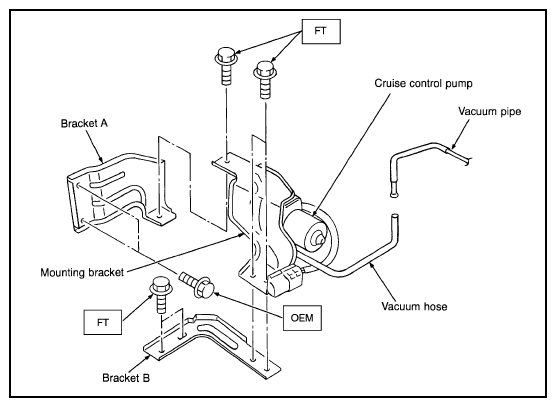

Parts contained in the kit (and quantity): Cruise Control Pump (1), Bracket-A (1), Bracket-B (1), FT Screws (5), Vacuum Pipe (1), Clip-A (1). This kit does not contain all of the parts for the Cruise Control System. This kit is used only for this service campaign which replaces the Cruise Control Pump, Mounting Brackets and Vacuum Pipe.
REPLACEMENT PROCEDURE
This information is for replacement of the Cruise Control Pump and the installation of the required brackets.
- Removal of cruise control pump.

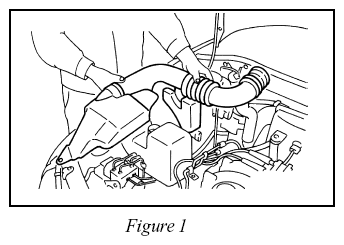

- Remove the air intake duct (see figure 1).

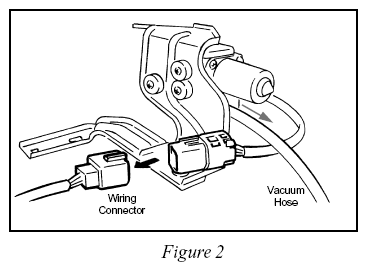

- Disconnect the wiring harness connector and vacuum hose from cruise control pump. (See figure 2)

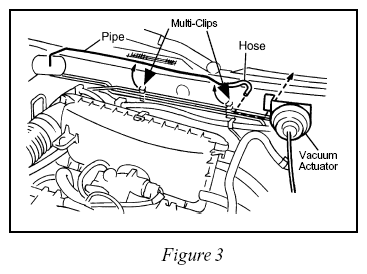

- Remove vacuum hose from vacuum actuator. Remove plastic vacuum pipe from multi-clips that are attached to bulkhead. (See figure 3)

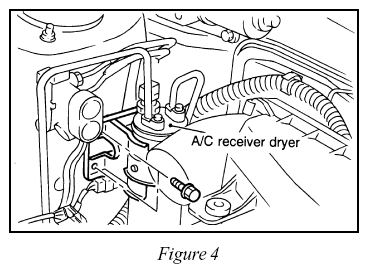

- Remove the two 10mm bolts * that attach the cruise control pump to the A/C receiver dryer and remove pump. (See figure 4)NOTE: *Retain bolts for reinstallation.
- Remove the air intake duct (see figure 1).
- Installation of new pump.
- 5) Install new Vacuum Pipe
to the multi-clips attached to the bulkhead. The end with the vacuum line attaches to the vacuum actuator. (See figure 5)

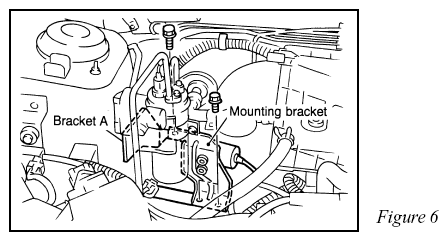

- 6) Install Bracket A between the A/C receiver dryer bracket and body. Secure Bracket A
and receiver dryer bracket with the two 10-mm bolts (previously removed in figure 4
). (See figure 6) Torque bolts to: 5.9 to 8.9 Nm (0.6 to 0.9 kg-m, 4.3 to 6.5 ft-lb).

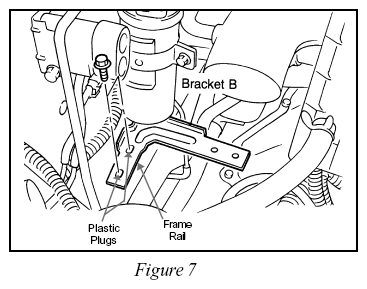

- 7) Remove two plastic plugs located in frame rail below A/C receiver dryer. Using two 10-mm bolts supplied, attach Bracket B.
(See figure 7) Torque bolts to 5.9 to 8.9 Nm (0.6 to 0.9 kg-m, 4.3 to 6.5 ft-lb).
- 8) Install cruise control pump to brackets using three 10-mm bolts supplied. (See figure 8) Torque bolts to 5.9 to 8.9 Nm (0.6 to 0.9 kg-m, 4.3 to 6.5 ft-lb).

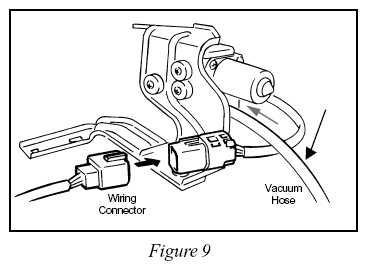

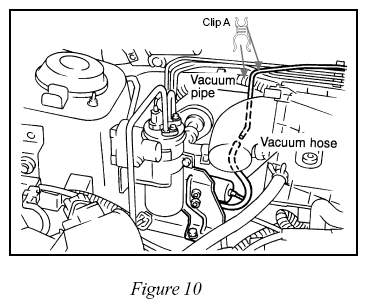

- 9) Connect wiring harness connector to cruise control pump. Connect vacuum hose of cruise control pump to vacuum pipe. Attach Clip A
to vacuum pipe and wiring harness, secure Clip A
to wiring harness using electrical tape. (See figure 9 and 10).
Road test vehicle for proper cruise control operation.
- 5) Install new Vacuum Pipe
to the multi-clips attached to the bulkhead. The end with the vacuum line attaches to the vacuum actuator. (See figure 5)
CLAIM REIMBURSEMENT AND ENTRY PROCEDURES
Credit to perform this Service Program will be based on the submission of properly completed repair order information. Dealers may enter the applicable claim information through Subarunet.
All properly submitted claims will receive a credit of 0.8 labor hours for installation of the replacement Cruise Control Kit.
Parts will be reimbursed at dealer cost plus applicable handling allowance.
LISTED BELOW IS CLAIM ENTRY INFORMATION
| Claim Type | Recall Code | Labor Operation | Labor Time | Labor Description |
|---|---|---|---|---|
| RC | WXP-73 | B 101-000 | 0.8 hrs | Recall / Campaign Labor. |
OWNER NOTIFICATION LETTER
Subaru of America, Inc.
Recall Headquarters
Subaru Plaza
P.O. Box 6000
Cherry Hill, NJ 08034-6000
Dear Subaru Owner:
October 11,1999
Subaru of America, Inc. has determined that 1999 model year Legacy Brighton vehicles equipped with cruise control may require replacement of the cruise control unit.
THE REASON FOR THIS NOTICE
1999 Legacy Brighton vehicles equipped with cruise control may experience wear of the power steering hose due to interference with the cruise control assembly over an extended period of time. This condition will not occur until a vehicle has accumulated high mileage exceeding 80,000 miles. Not all vehicles will experience wear to the power steering hose, depending on engine vibration, which varies by vehicle use.
WHAT YOU SHOULD DO
You should contact your Subaru dealer and schedule a service appointment to repair your vehicle.
HOW LONG WILL IT TAKE?
The actual time to perform this repair is approximately 1.0 hour, however it may be necessary for you to leave your vehicle for the full day of your scheduled appointment to allow the dealer some flexibility in scheduling other customers.
CHANGED YOUR ADDRESS OR SOLD YOUR SUBARU?
If you have moved or sold your vehicle, please complete the enclosed prepaid postcard and mail it to us.
IF YOU NEED MORE INFORMATION
If the dealer fails or is unable to make the necessary repairs free of charge, you may contact the Subaru Customer Dealer Services Department at 1-800-782-2783 or write to the address listed above.
We regret any inconvenience this matter may have caused you. However, we have taken this action in the interest of your continued satisfaction with our products.
Sincerely,
SUBARU OF AMERICA, INC.
