Fan Switch
WARNING: This page is about a different car, the 1998 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.

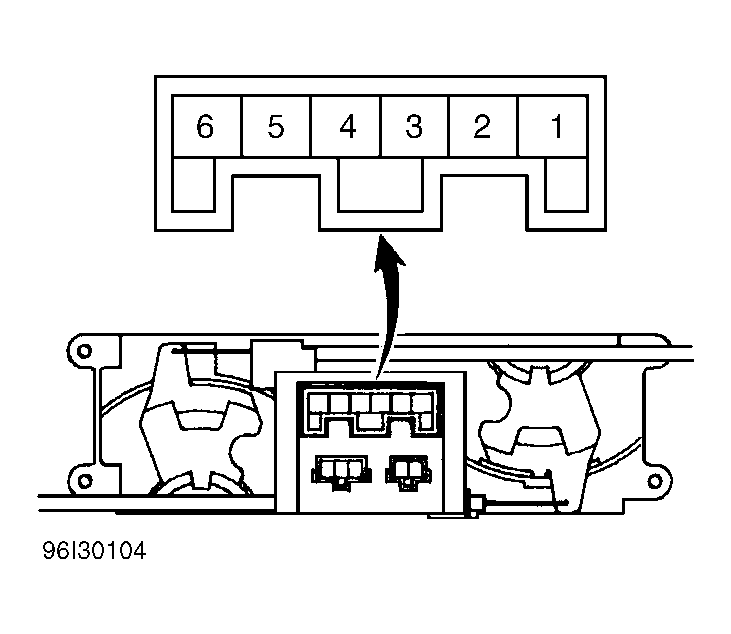

Remove heater control panel. See HEATER CONTROL PANEL . Check continuity between terminals at each switch position. See FAN SWITCH CONTINUITY TEST table. See Fig 1.
FAN SWITCH CONTINUITY TEST
| Fan Switch Position | Continuity Between Terminal No. |
|---|---|
| Low | 1, 2 & 6 |
| Medium-Low (ML) | 1, 3 & 6 |
| Medium-High (MH) | 1, 4 & 6 |
| High | 1, 5 & 6 |
