Component Locations

COMPONENT LOCATIONS (1)

Component Location
Alarm Horn Behind Right Headlight
Headlight Alarm Relay Behind Instrument Panel
Interrupt Relay On Left Front Inner Fender Panel
Keyless Entry Control Module Behind Left Side Of Dash
Passive Arm Connector Behind Driver's Door Sill
Security Control Module Behind Center Console
Security Indicator Light On Left Side Of Instrument Panel
Security Switch On Each Door/Rear Gate/Trunk Lock Assembly
(1) See Fig 1 .

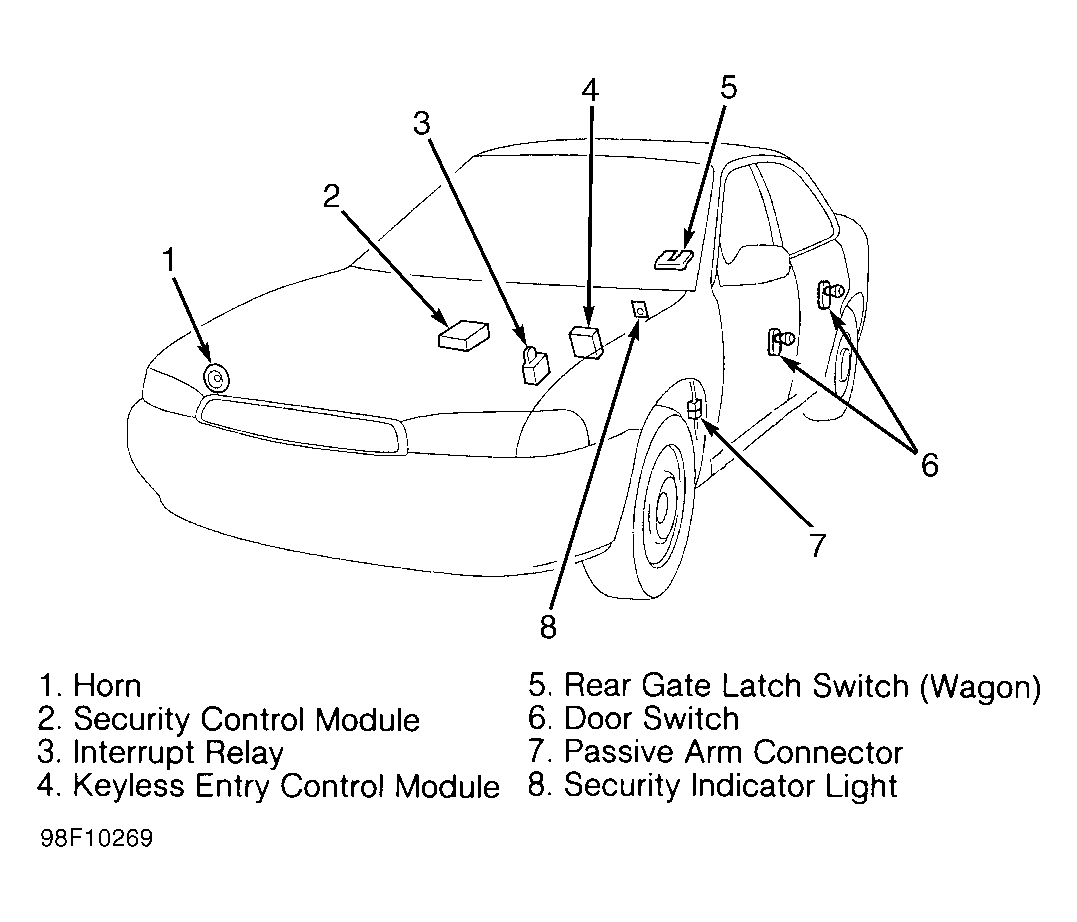

Fig 1: Locating Anti-Theft & Keyless Entry System Components
G98F10269Courtesy of SUBARU OF AMERICA, INC.
