A/C Switch

Remove A/C switch and disconnect harness connector. Check continuity between terminals No. 2 and 3 of A/C switch. See Fig 1 . When switch in ON position, continuity should exist. When switch is in OFF position, continuity should not exist. If continuity is not as specified, replace A/C switch.

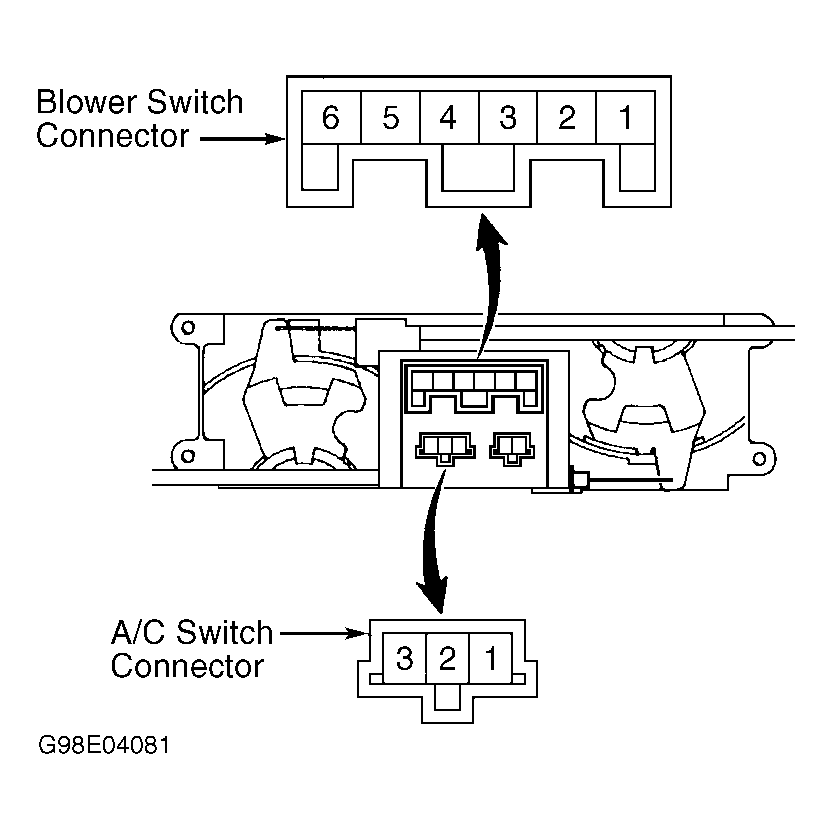

Fig 1: Identifying A/C Switch & Blower Switch Terminals
G98E04081Courtesy of SUBARU OF AMERICA, INC.
