Removal & Installation (Front)

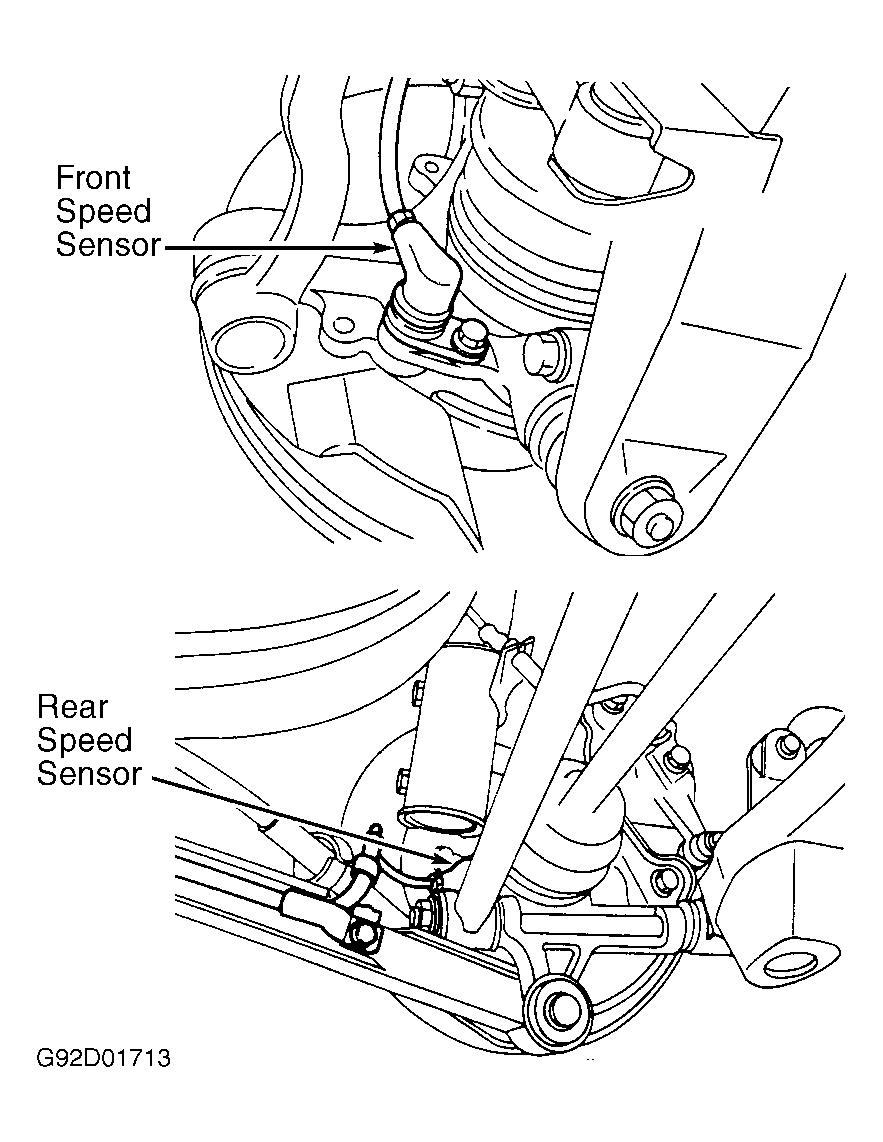

Unplug front wheel speed sensor connector. Remove bolt retaining wheel speed sensor and wiring harness. Remove wheel speed sensor. See Figure . To install, reverse removal procedure. Tighten sensor retaining bolt to specification. See TORQUE SPECIFICATIONS  . Adjust speed sensor air gap. See WHEEL SPEED SENSOR AIR GAP under ADJUSTMENTS  .

Removal & Installation (Rear)

Remove rear seat. Unplug rear wheel speed sensor connector. From underneath vehicle, remove wheel speed sensor retaining bolt. Remove wheel speed sensor. See Figure . To install, reverse removal procedure. Tighten retaining bolt to specification. See TORQUE SPECIFICATIONS  . Adjust speed sensor air gap. See WHEEL SPEED SENSOR AIR GAP under ADJUSTMENTS  .
