Front Wiper/Washer Switch Continuity Test

1. Remove instrument panel lower cover. Remove lower column cover. Unfasten hold-down clip securing harness.
2. Disconnect combination switch harness connectors from body harness. Ensure continuity is present between terminals as indicated. See Fig 1 or Fig 2 . Repair or replace as necessary.

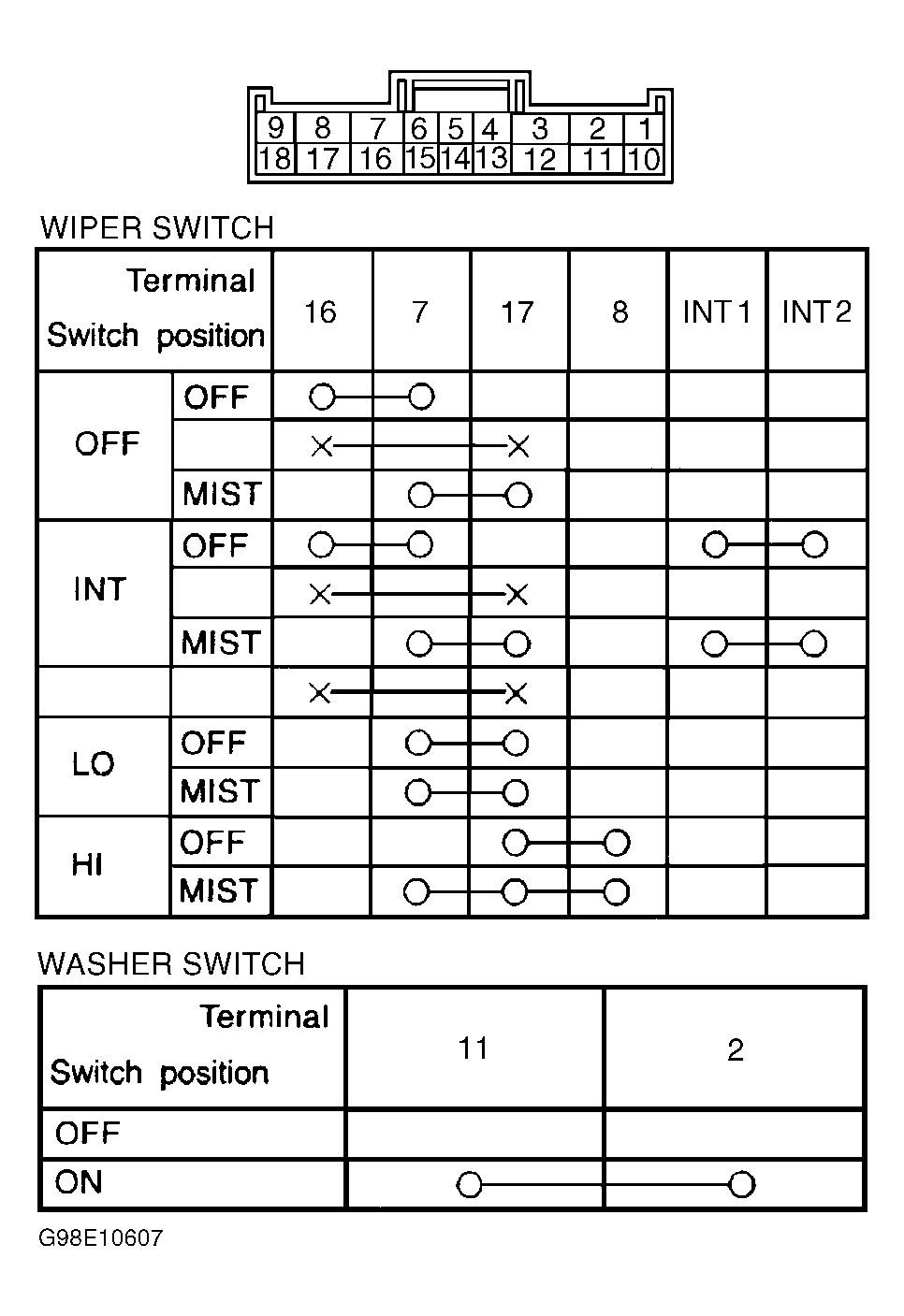

Fig 1: Testing Front Wiper/Washer Switch (Forester)

Courtesy of SUBARU OF AMERICA, INC.

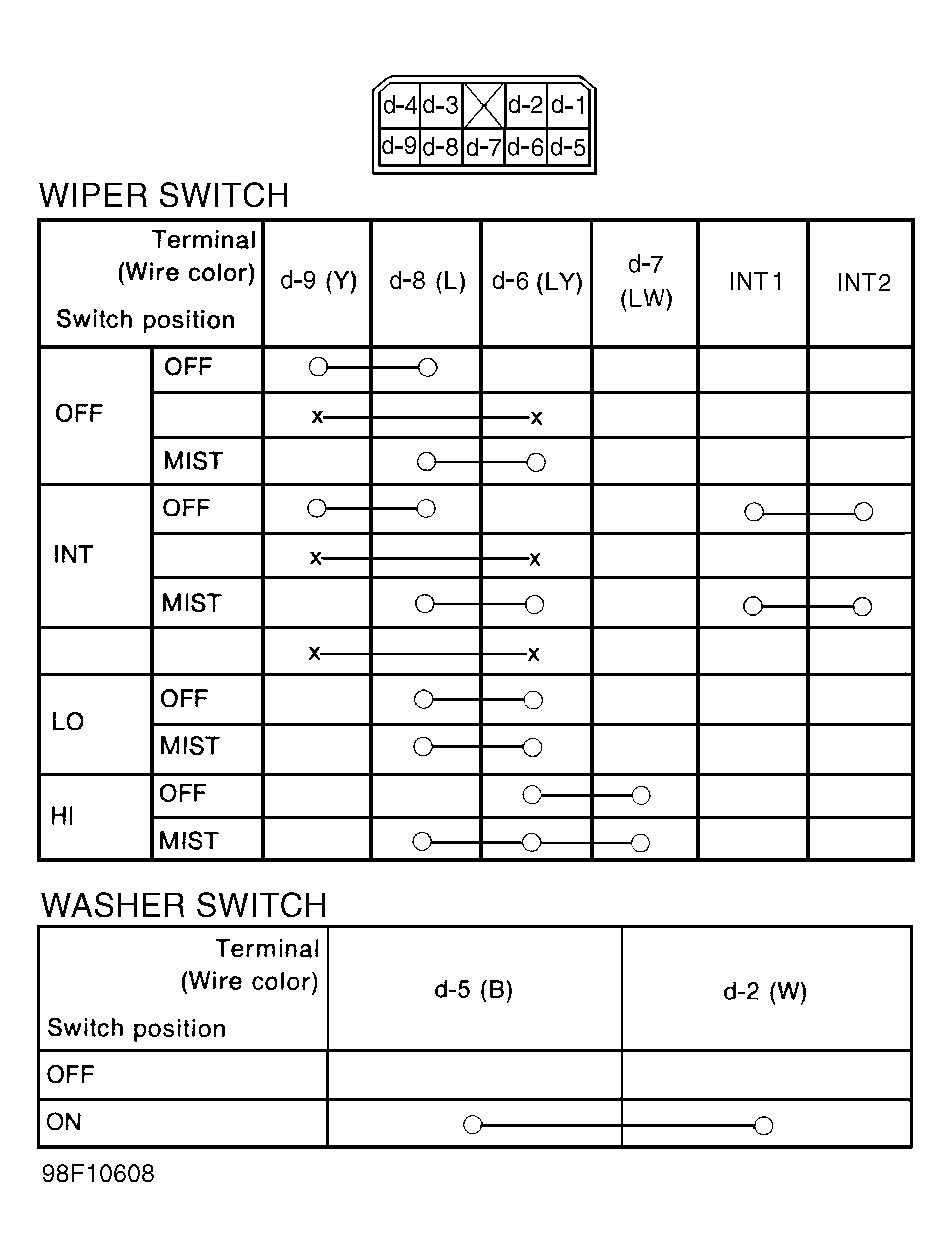

Fig 2: Testing Front Wiper/Washer Switch (Impreza & Legacy)

Courtesy of SUBARU OF AMERICA, INC.
