Differential Case Assembly: Disassembly

  1. Press off taper roller bearing using Remover (498077000) and press. DO NOT damage speedometer drive gear. Secure differential case in vise, remove ring gear bolts and ring gear and separate differential cases.

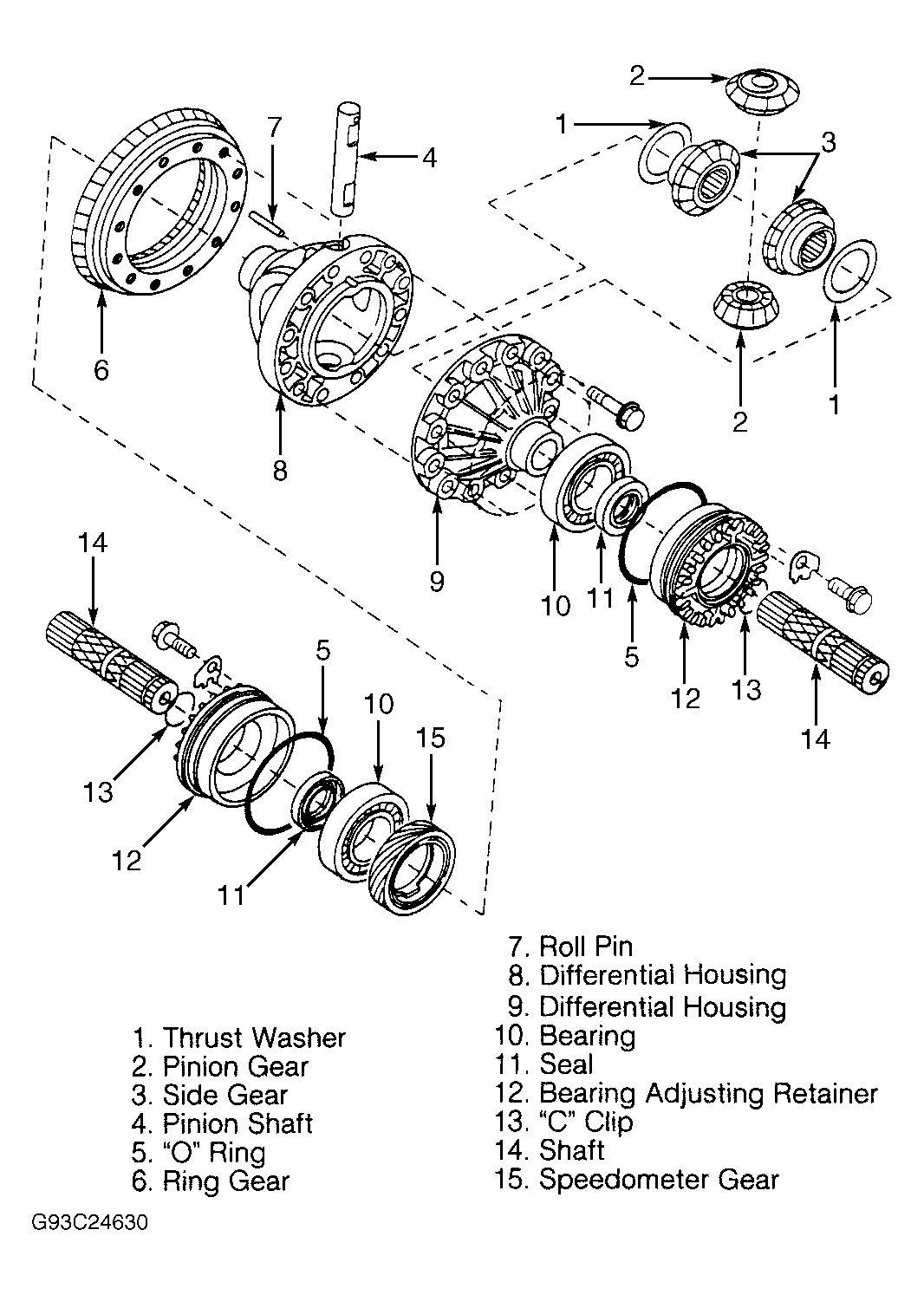

  2. Drive out roll pin and remove pinion shaft from case. Remove pinion gears, differential side gear and thrust washer. See Figure .
