Servo Piston: Disassembly

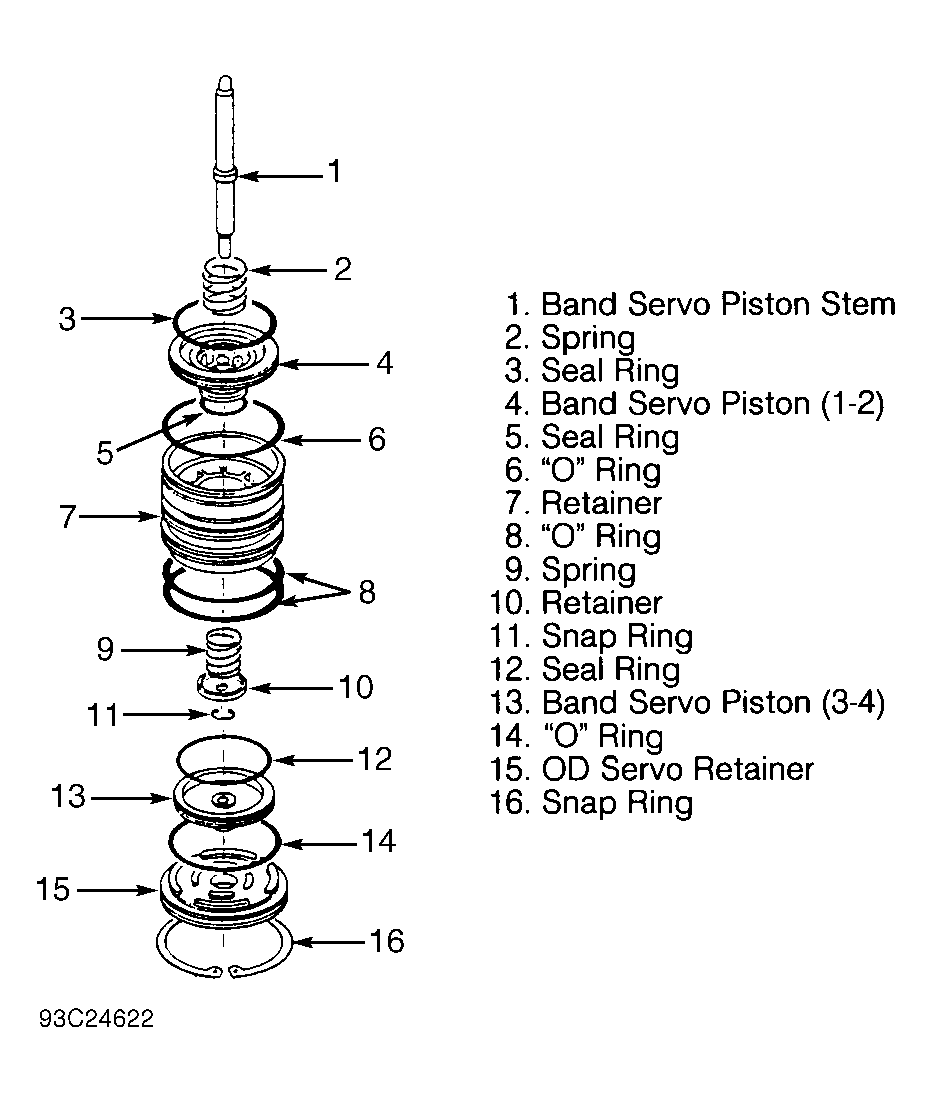

Remove spring and 3rd-4th band servo piston. See Figure . Compress retainer from above and remove snap ring, retainer, spring and stem. Remove 1st-2nd band servo piston.
