Component Tests: Relays

Remove 5-pin valve relay and 4-pin motor relay from hydraulic unit. Test relays. See Fig 1 . Replace as needed.

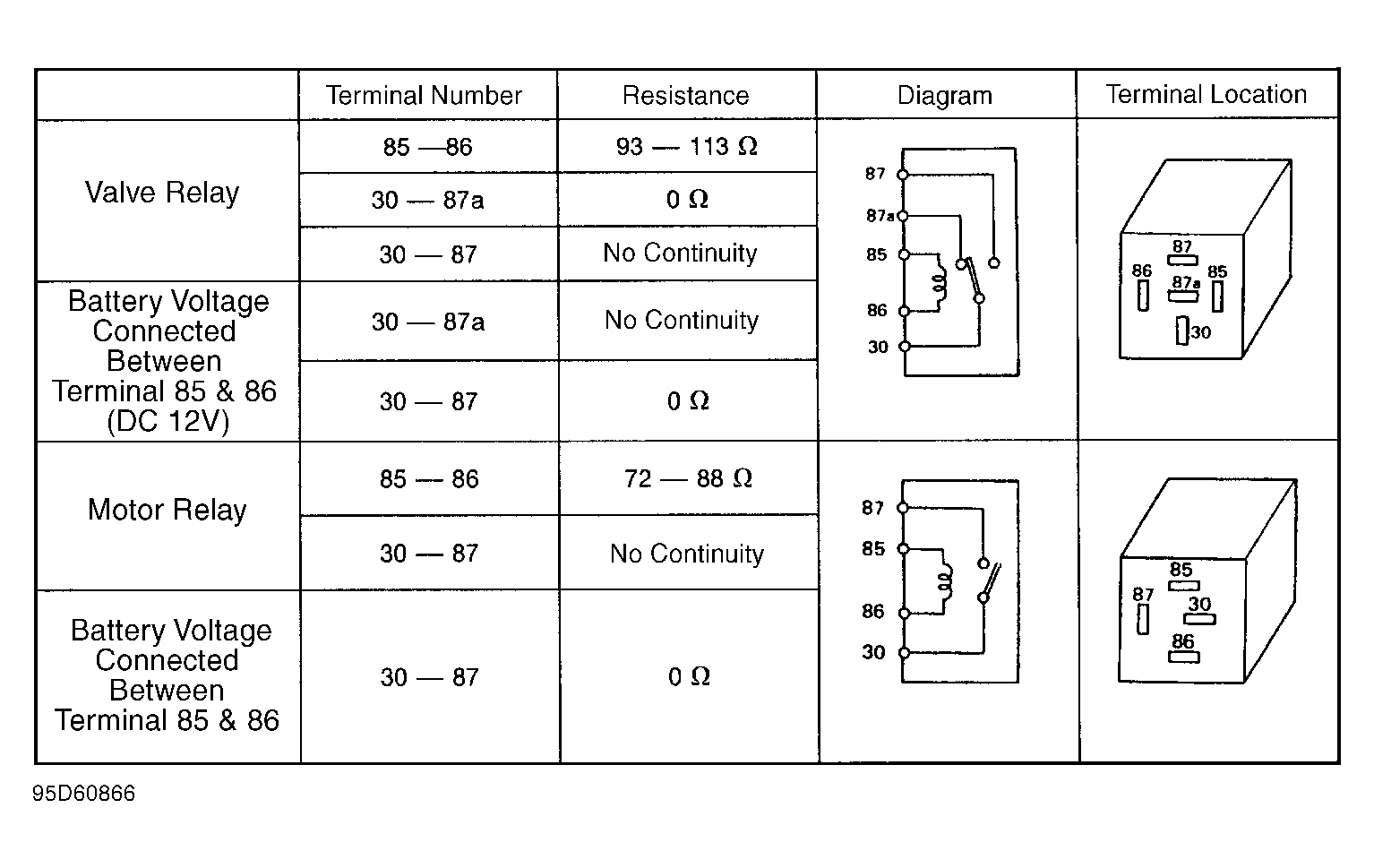

Fig 1: Relay Testing Chart

G95D60866

Courtesy of SUBARU OF AMERICA, INC.
