Circuit Tests: Notes

NOTE: For additional voltage specifications, see ABS/TCS control unit pin voltage chart. See Fig 1 and Fig 2 . To identify ABS/TCS control unit terminals, see Fig 3 .

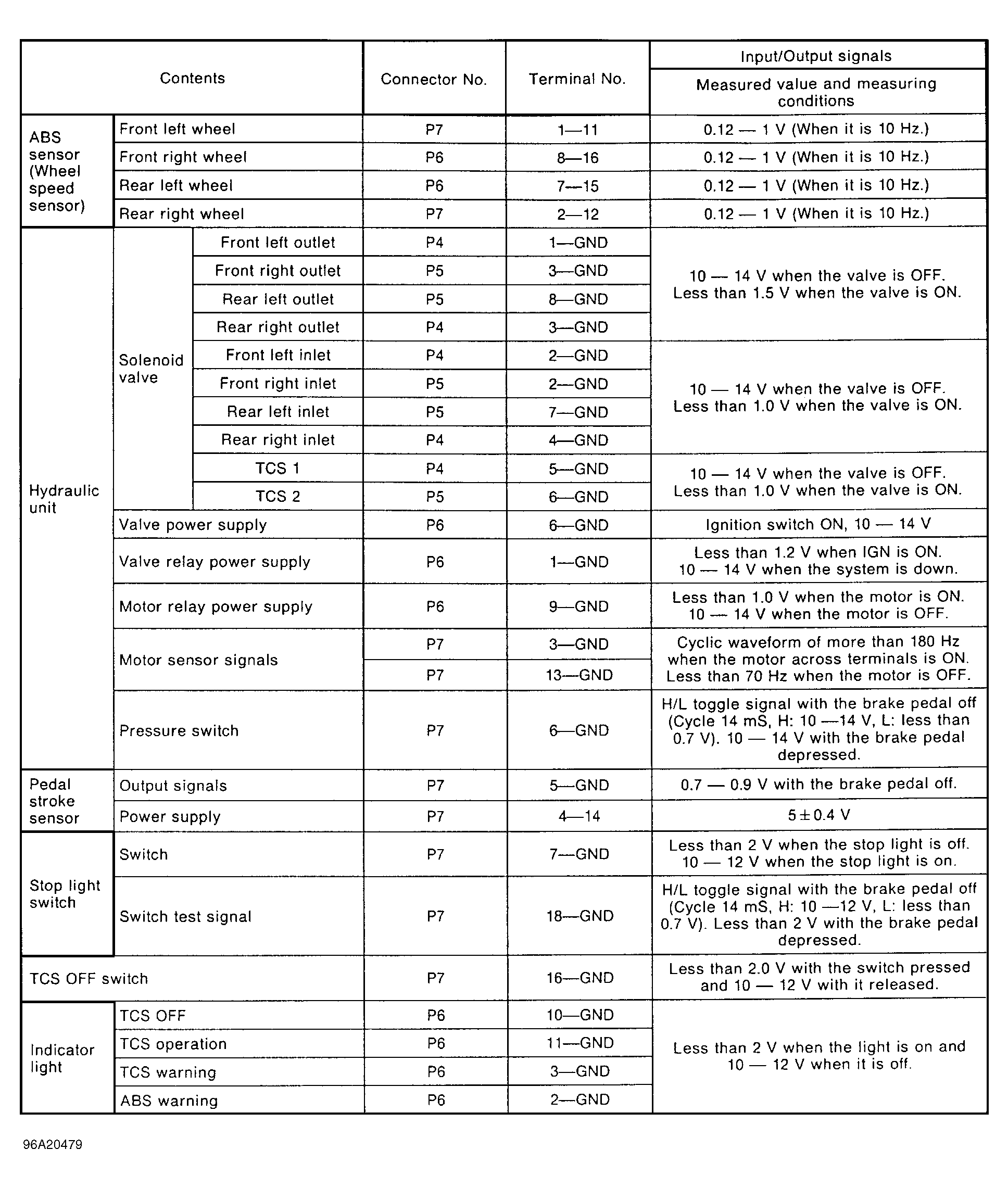

Fig 1: ABS/TCS Control Unit Pin Voltage Chart (1 Of 2)

Courtesy of SUBARU OF AMERICA, INC.

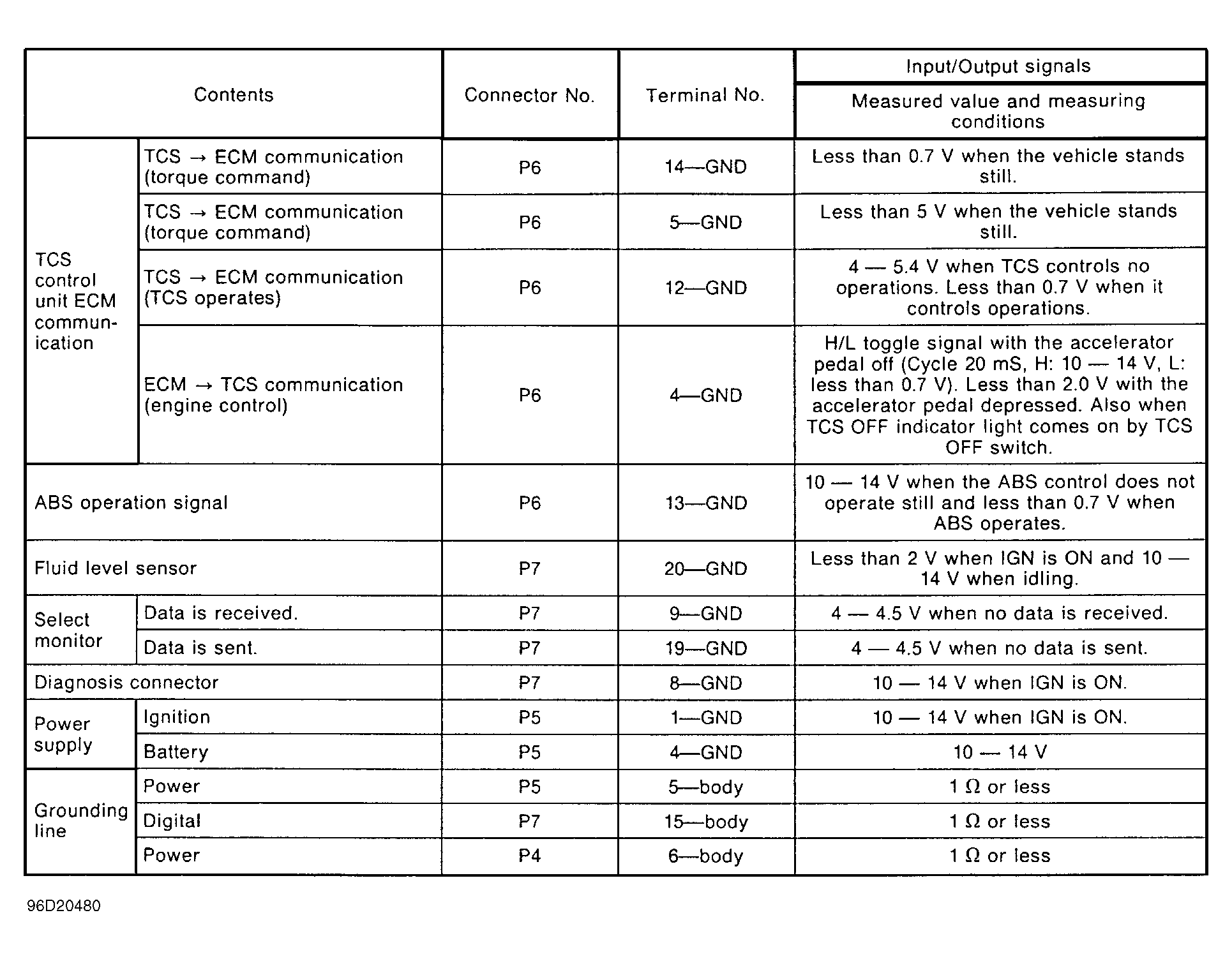

Fig 2: ABS/TCS Control Unit Pin Voltage Chart (2 Of 2)

Courtesy of SUBARU OF AMERICA, INC.

Fig 3: Identifying ABS/TCS Control Unit Harness Connector Terminals

Courtesy of SUBARU OF AMERICA, INC.
