Component Locations

WARNING: This page is about a different variant/trim than selected.

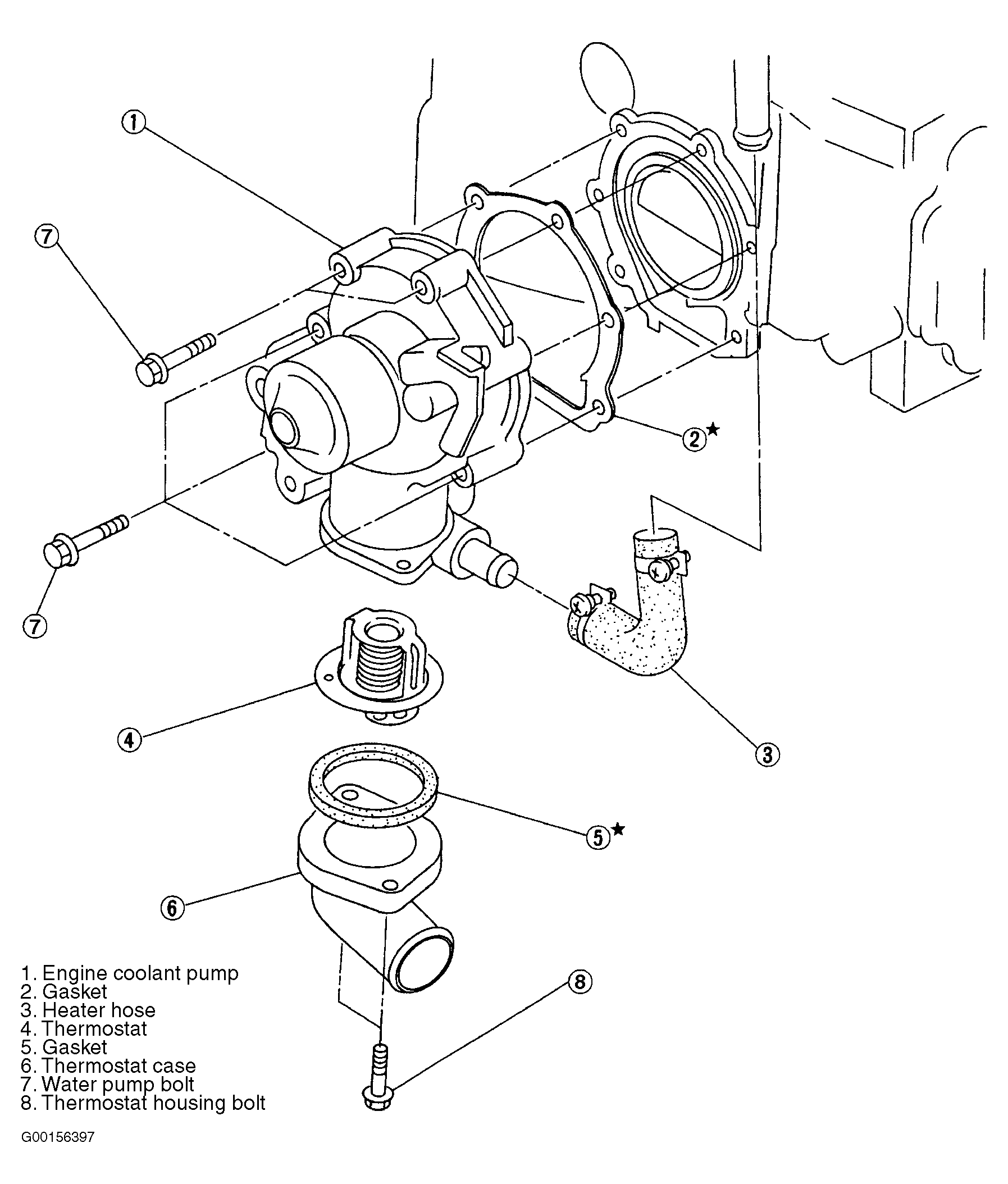

Fig 1: Exploded View Of Water Pump

Courtesy of SUBARU OF AMERICA, INC.

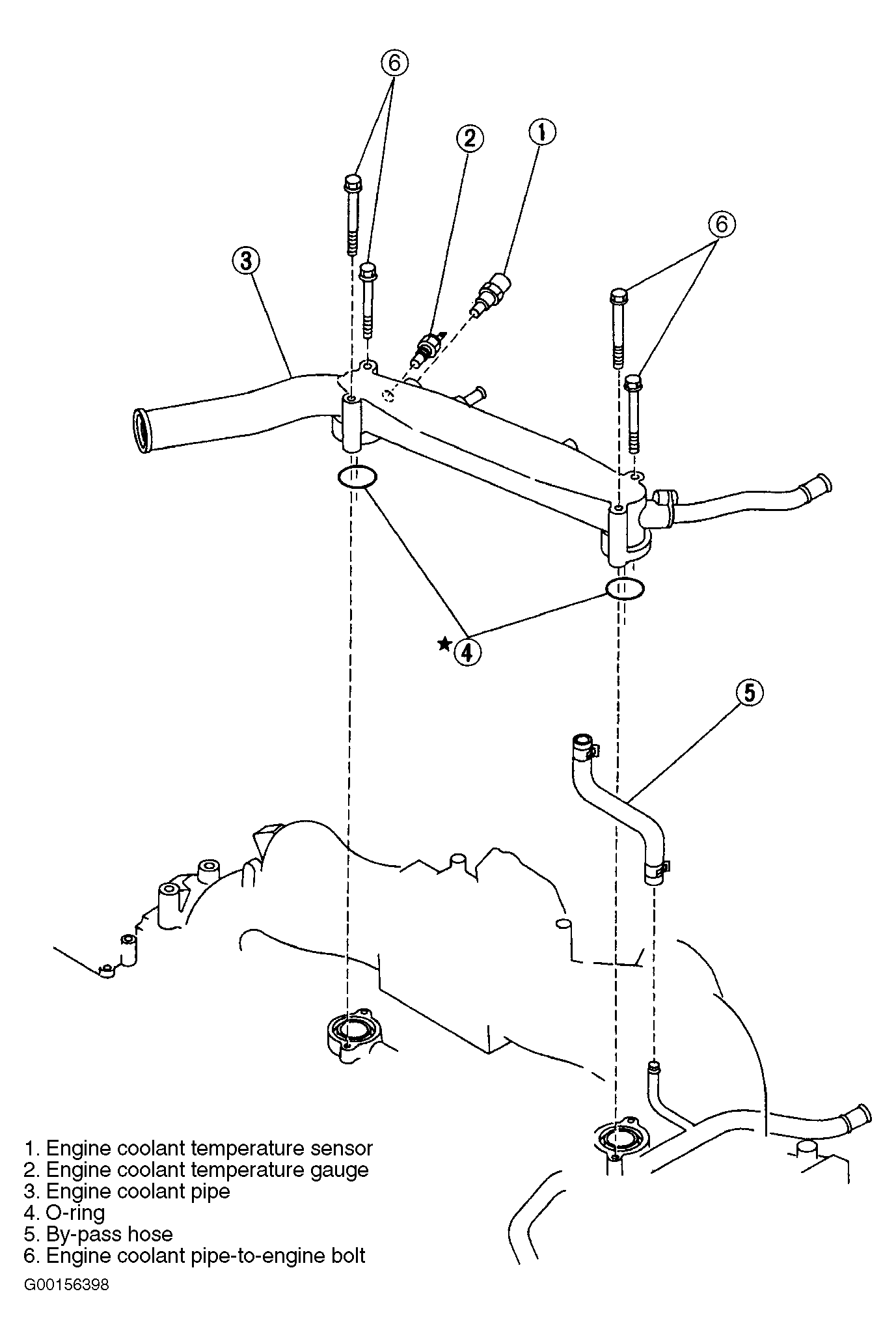

Fig 2: Identifying Engine Coolant Pipe Components

Courtesy of SUBARU OF AMERICA, INC.

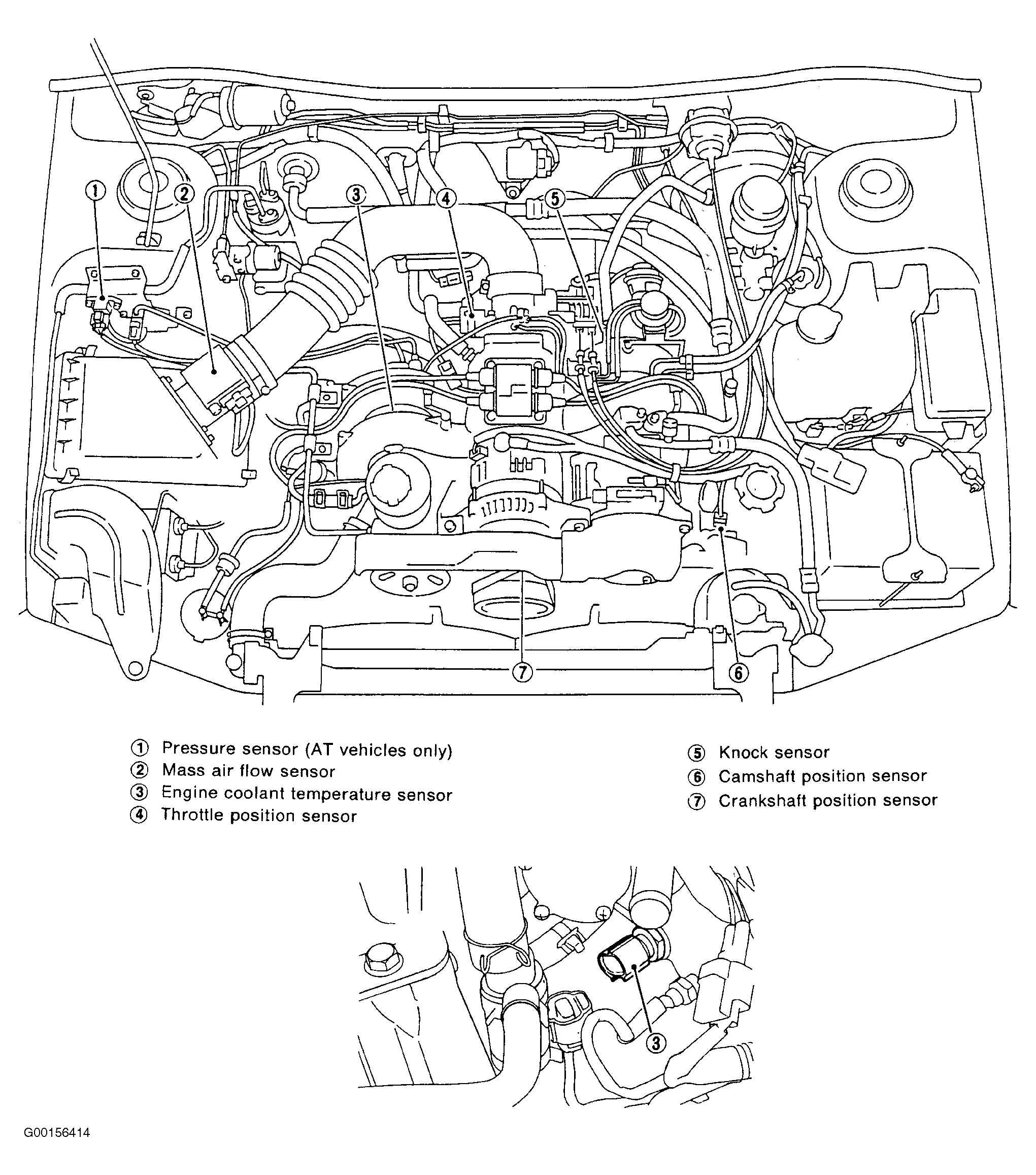

Fig 3: Locating Engine Coolant Temperature Sensor

Courtesy of SUBARU OF AMERICA, INC.

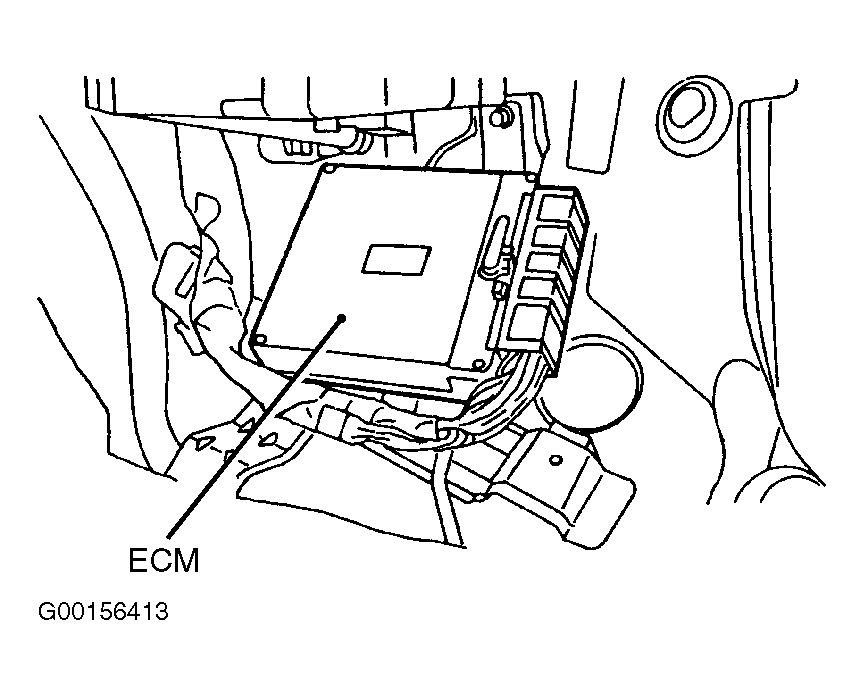

Fig 4: Locating Engine Control Module(Below Passenger's Foot Rest)

Courtesy of SUBARU OF AMERICA, INC.

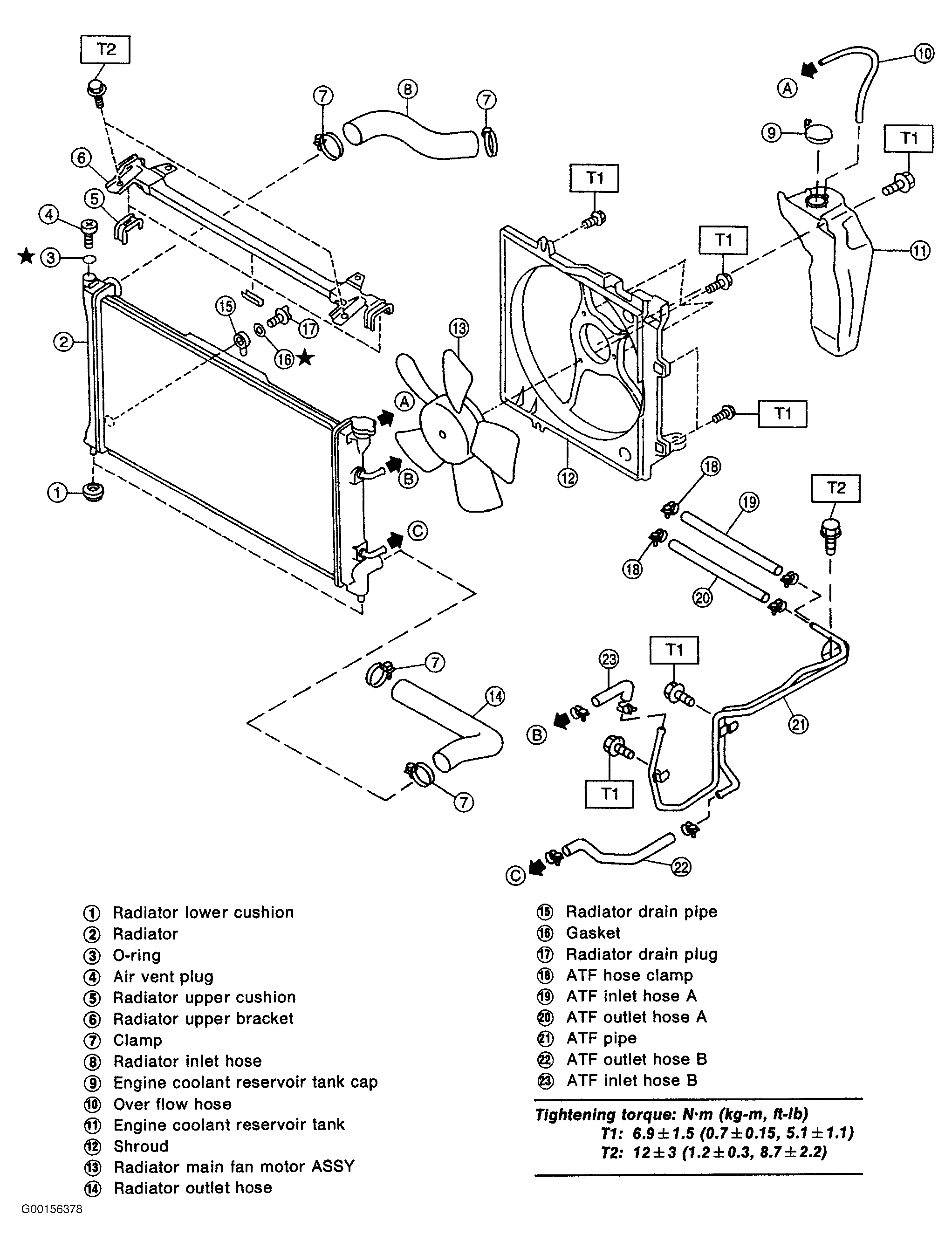

Fig 5: Exploded View Of Radiator & Radiator Fan

Courtesy of SUBARU
