Air Bag Module Lower Connector Check

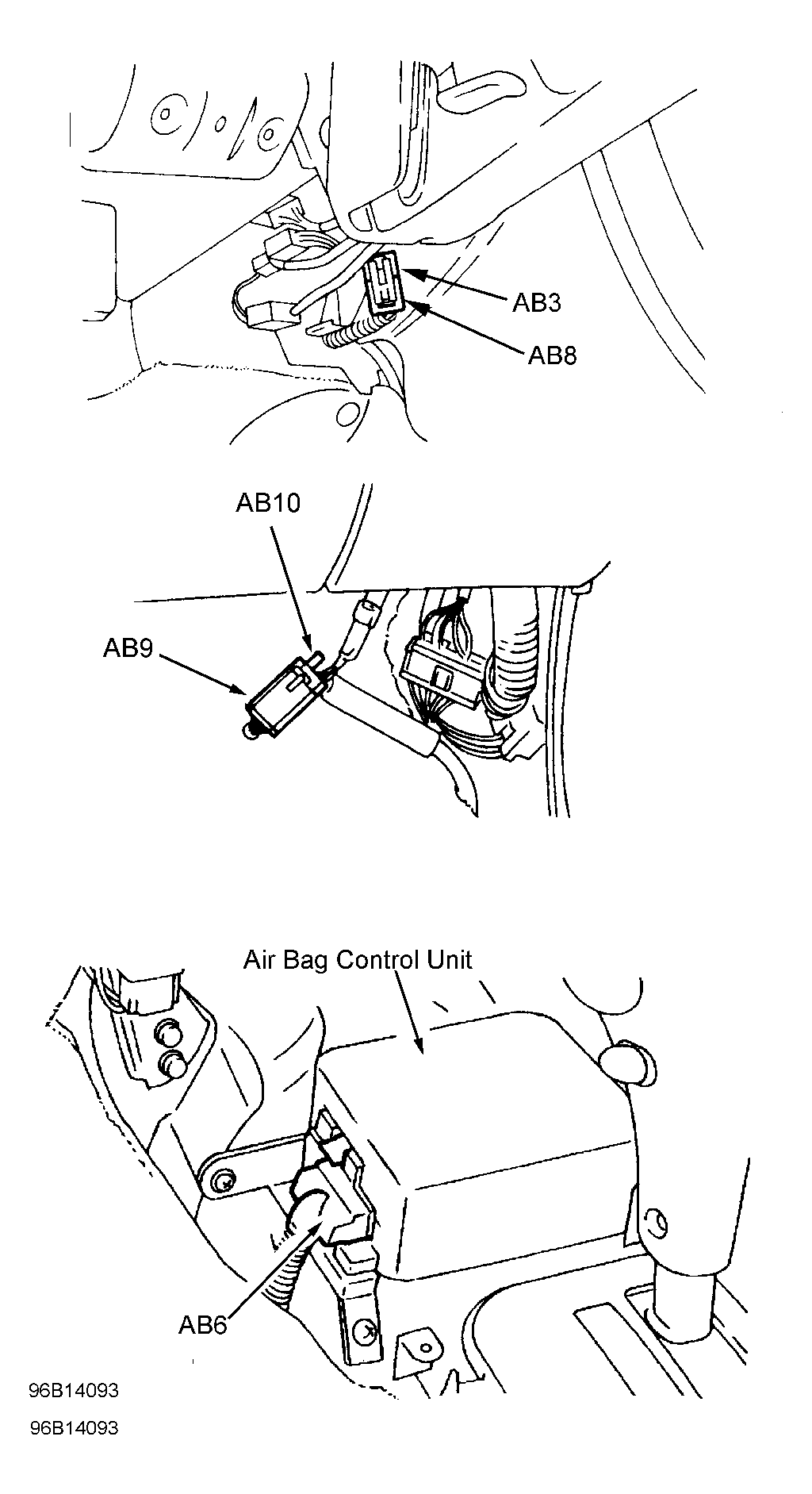

Remove driver-side lower trim panel. Inspect Yellow air bag module connectors AB 3, AB8, AB9 & AB10. Ensure connectors are correctly seated and locked. See Figure . Go to CLOCKSPRING CONNECTOR TEST below.
Remove driver-side lower trim panel. Inspect Yellow air bag module connectors AB 3, AB8, AB9 & AB10. Ensure connectors are correctly seated and locked. See Figure . Go to CLOCKSPRING CONNECTOR TEST below.
