Control Valve Body: Disassembly
- Remove shift solenoids No. 1, 2 and 3 and duty solenoid "A" from upper valve body. See Figure . Remove duty solenoid "B" and bracket from lower valve body.
- Remove upper-lower valve body bolts and 2 locating bolts. Separate valve bodies. Remove 9 steel balls from upper valve body. Remove orifice and filter from lower valve body. See Figure .
NOTE:

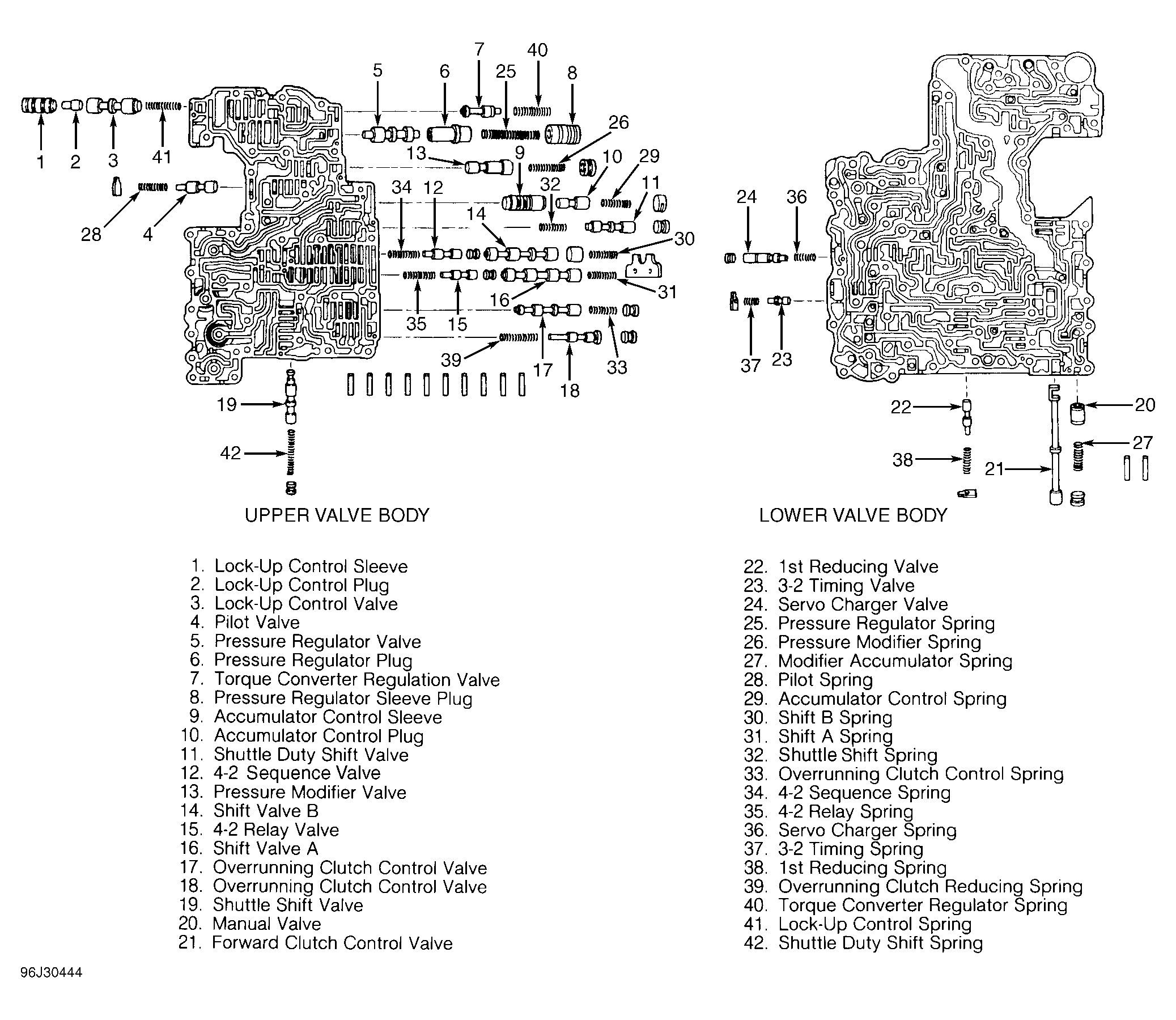

During minor overhaul, complete disassembly and cleaning of valve body is not necessary. If any contamination is present in transmission assembly, completely disassemble valve body and thoroughly clean all components. See Figure
. Ensure smooth operation of all valves.
