Wiring Diagrams: Notes

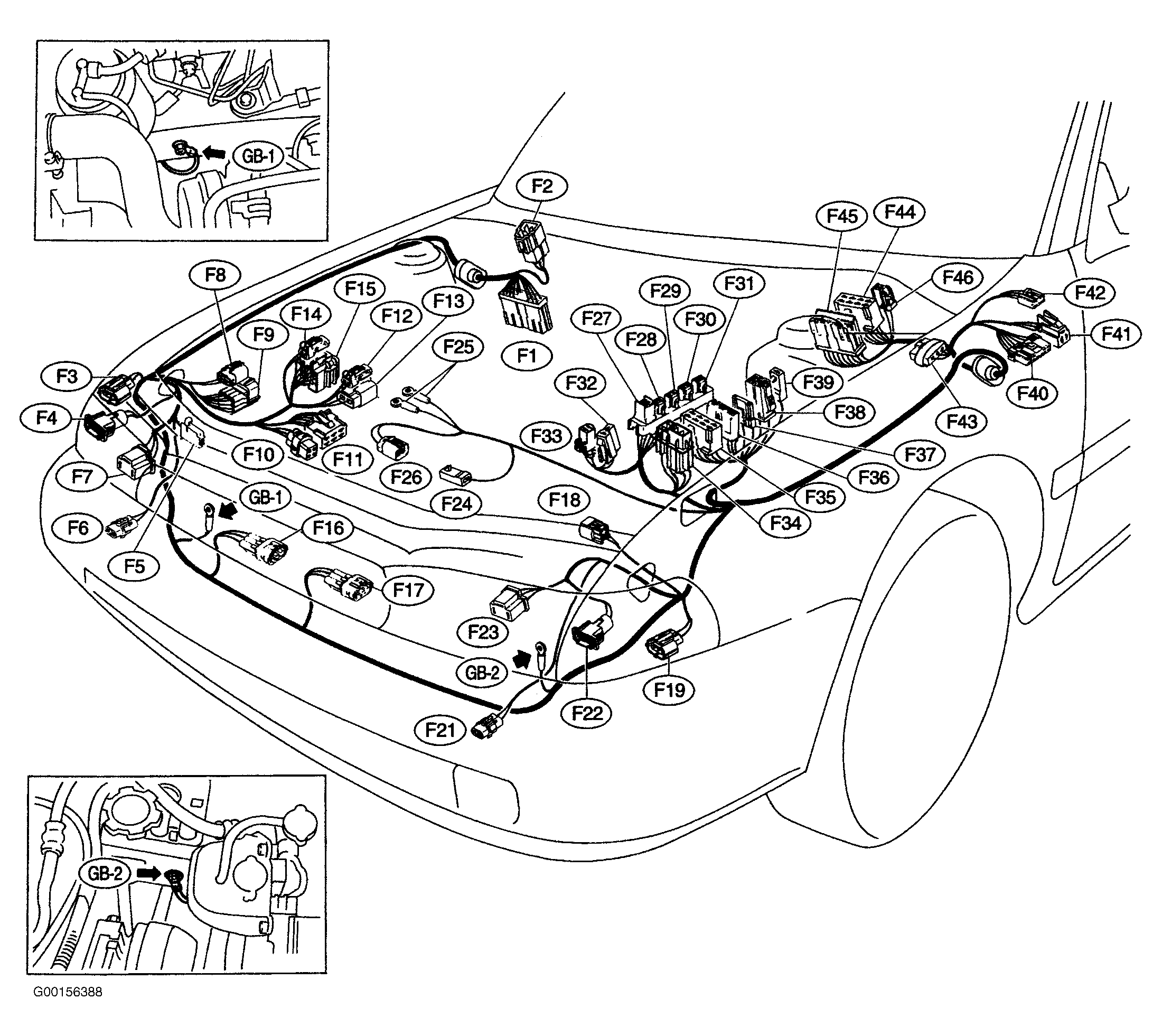

Fig 1: Harness Routing & Connector Identification Diagram
G00156388Courtesy of SUBARU OF AMERICA, INC.

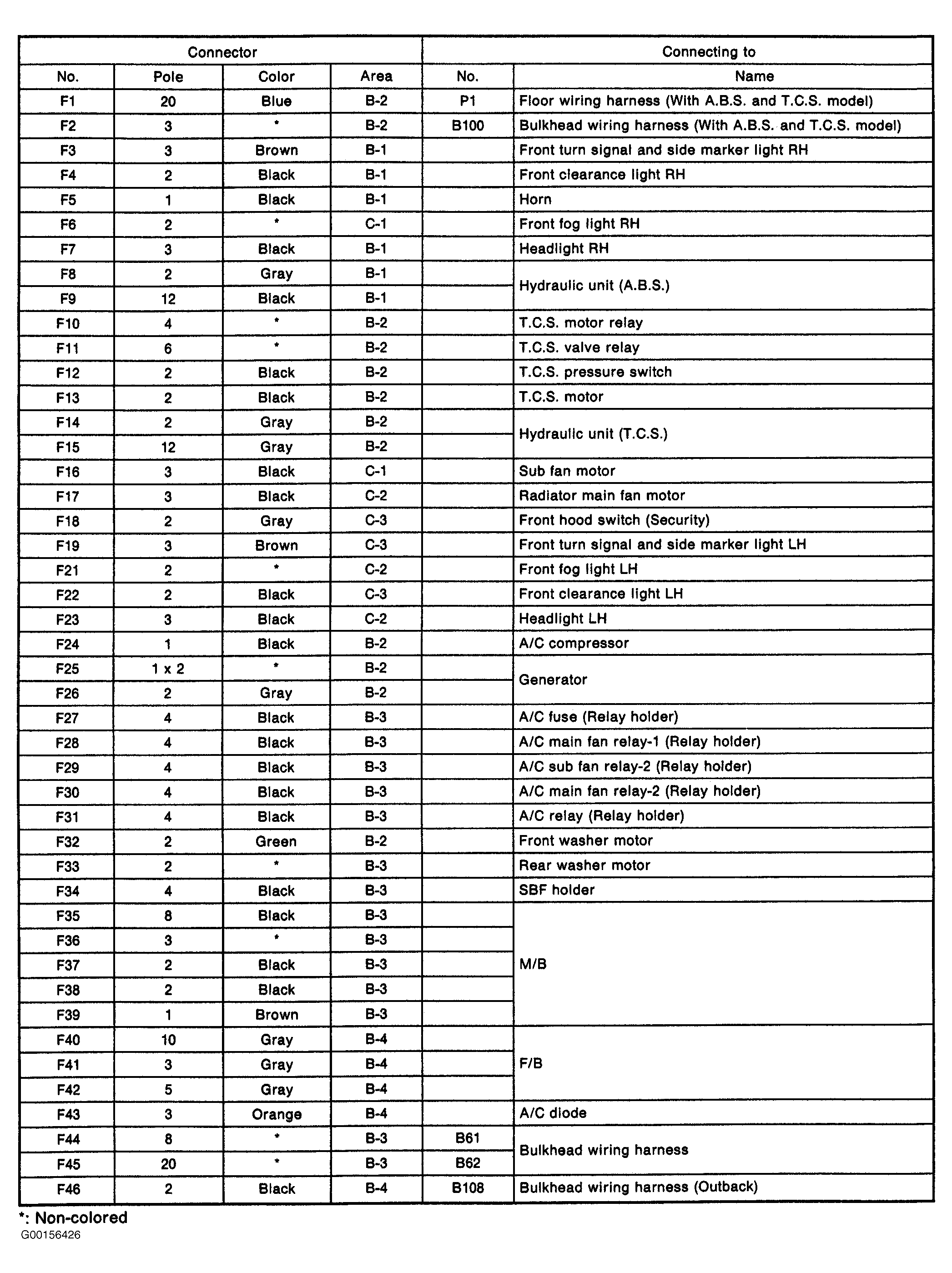

Fig 2: Harness Routing & Connector Identification Diagram - Legend
G00156426Courtesy of SUBARU OF AMERICA, INC.
