Differentials & Drive Axles: Description

Rear axle assemblies are hypoid gear type using integral carrier housing. See Fig 1 . Component parts of LSD assembly are not available as piece parts. Disassembly of LSD is not recommended.

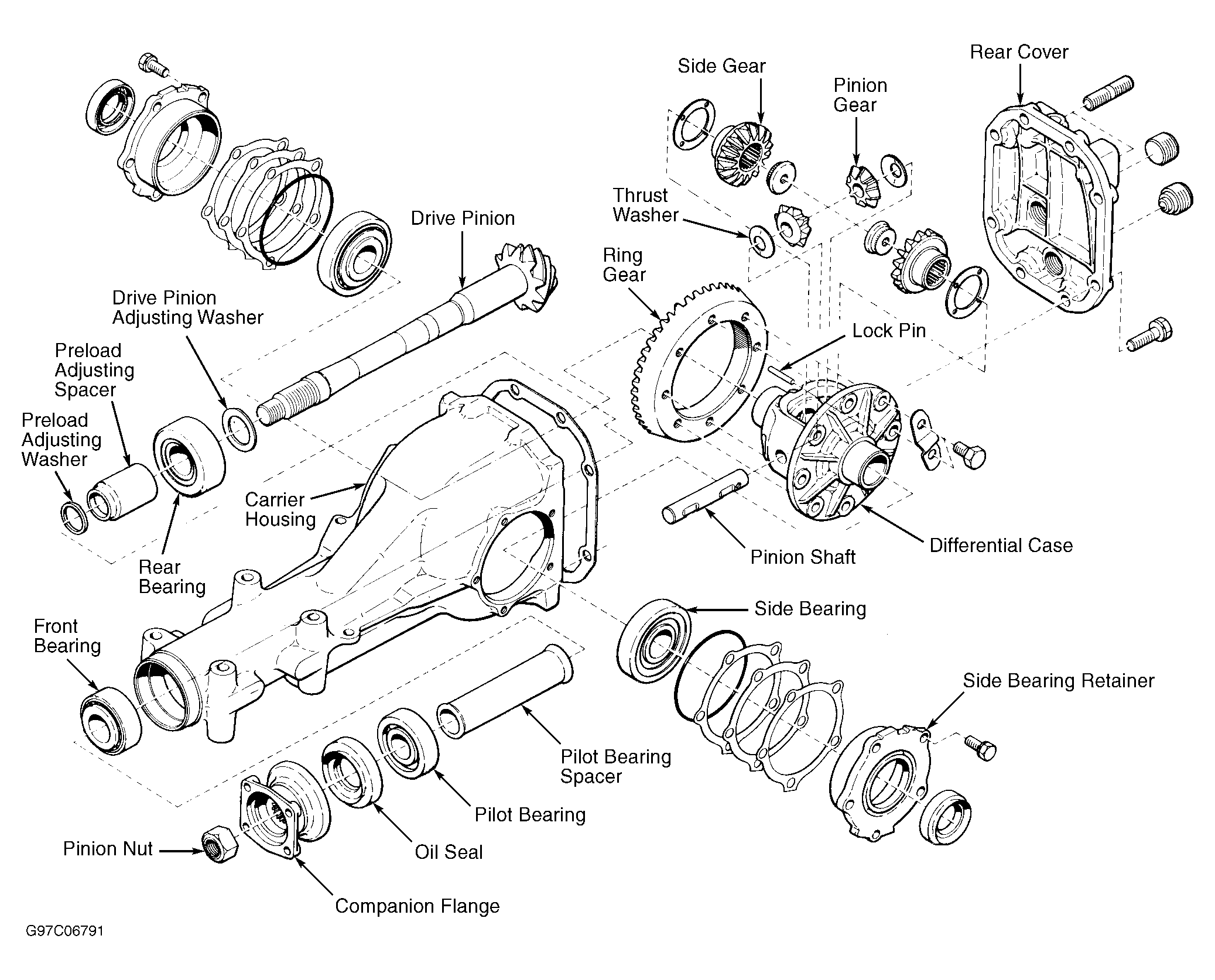

Fig 1: Identifying 4WD Differential Components (T-Type Shown, VA Type Similar)

Courtesy of SUBARU OF AMERICA, INC.
