Removal & Installation

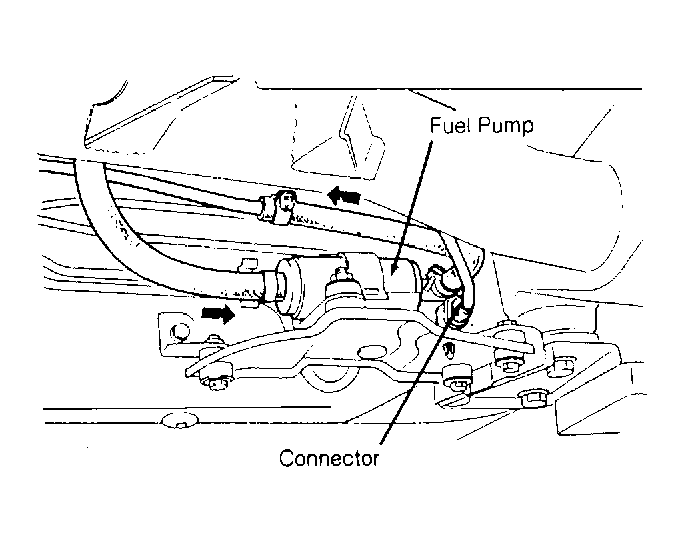

Fuel pump is located under rear of vehicle. See Fig 1 . Release fuel pressure. See FUEL SYSTEM PRESSURE RELEASE. Raise and support vehicle. To avoid fuel flowing from fuel tank, clamp middle portion of thick hose between pipe coupling and fuel pump.
