Auto Switch

This switch has two positions. By lightly pressing the switch up or down until one click is felt, the driver's window will move up or down until the switch is released. By giving the switch a slightly harder push, up or down, the window will automatically open or close completely. To stop the window from completely opening or closing after the auto switch is activated, lightly push the switch in the opposite direction of the window's movement.

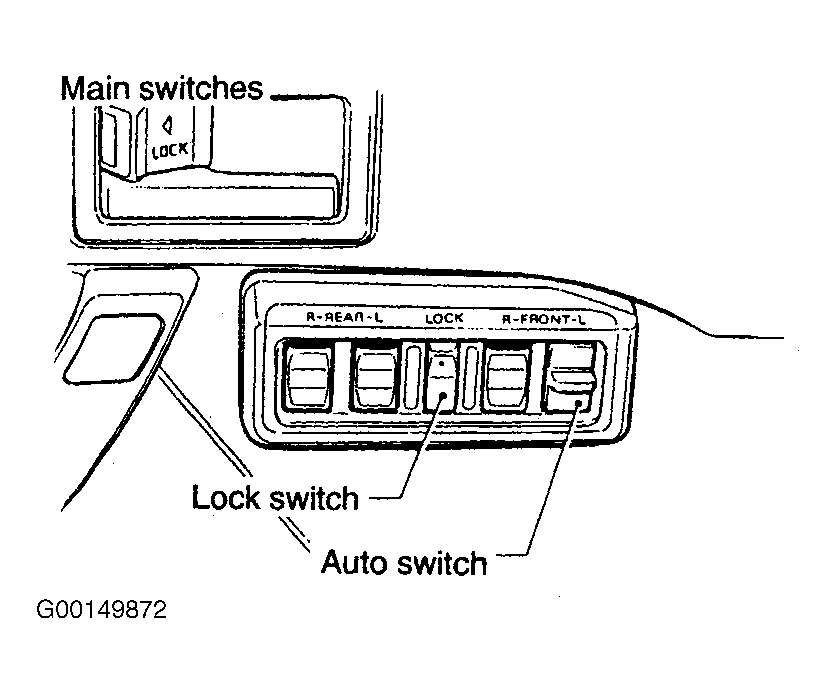

Fig 1: Identifying Power Window Switches
G00149872Courtesy of SUBARU OF AMERICA, INC.
