Air Bag Module Lower Connector Check

WARNING: This page is about a different car, the 1993 Subaru Legacy. However, it is still accessible from the selected car via links, so may be relevant.

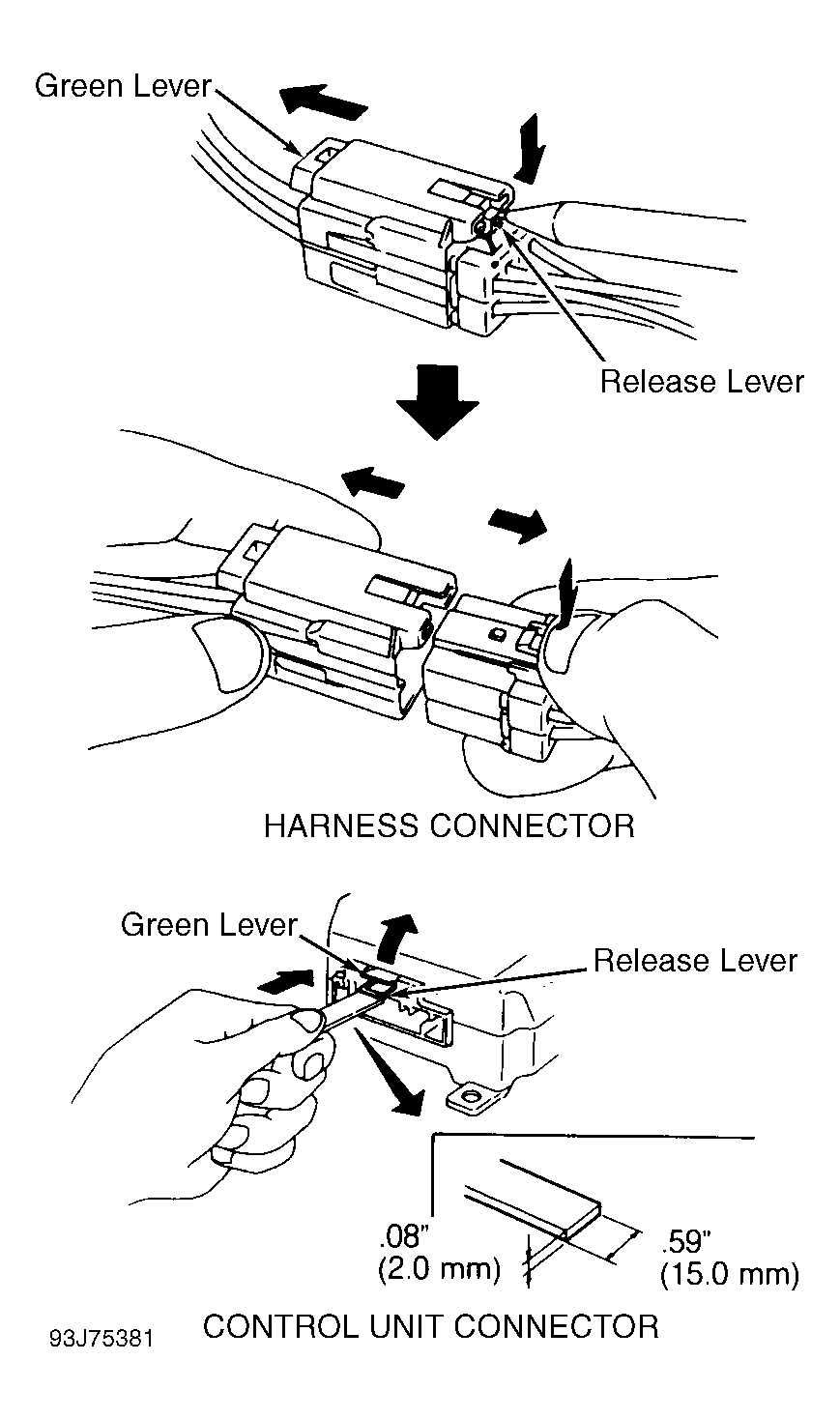

Remove drivers-side lower trim panel from dash. Check air bag module 3-pin Yellow connector AB3 and AB8 at base of steering column for proper installation. Refit connector as necessary. See Figure . If connector is installed properly, go to CLOCKSPRING CONNECTOR TEST.
