Trouble Shooting Charts

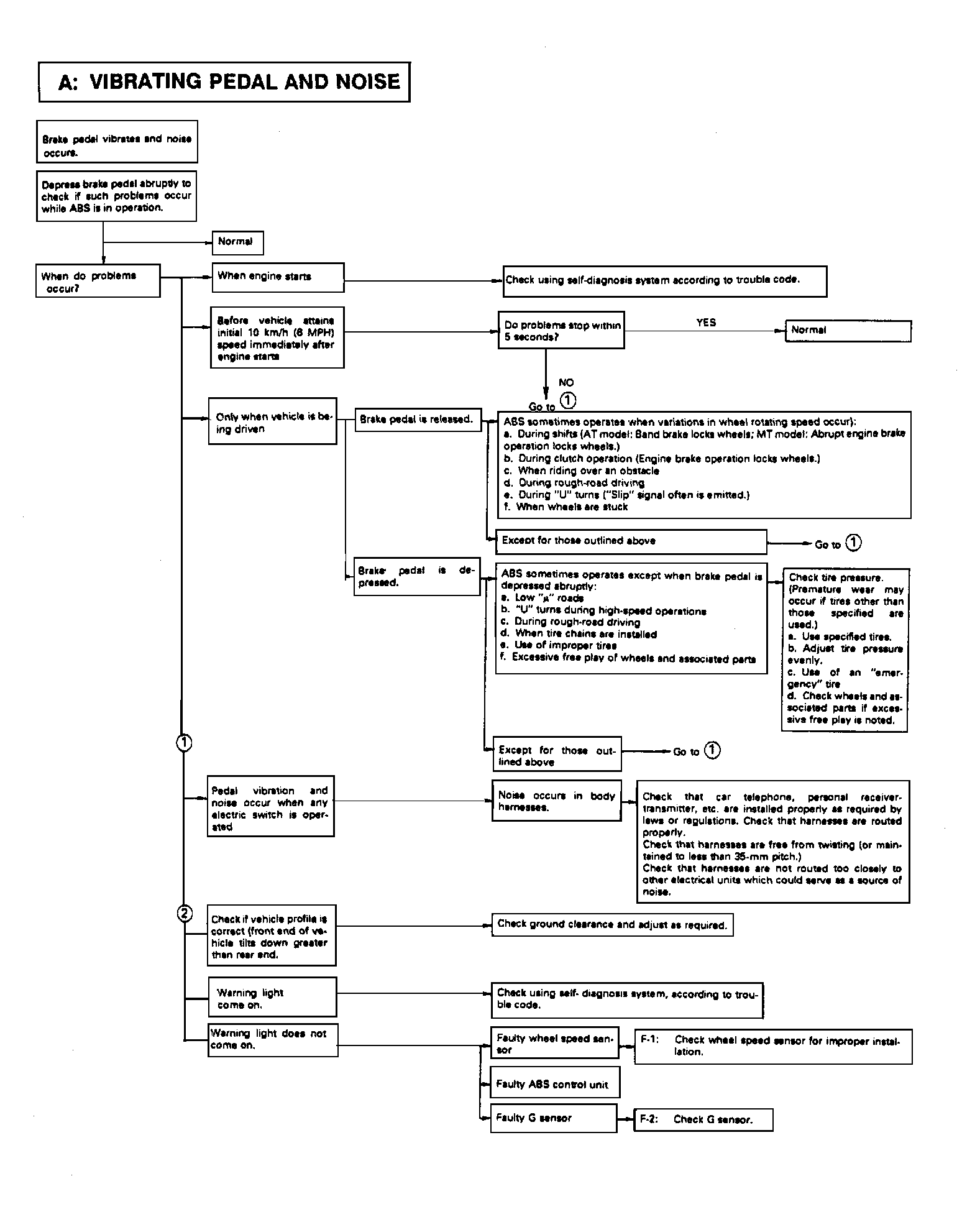

Fig 1: A - Vibrating Pedal and Noise
G92A01716Courtesy of SUBARU OF AMERICA, INC.

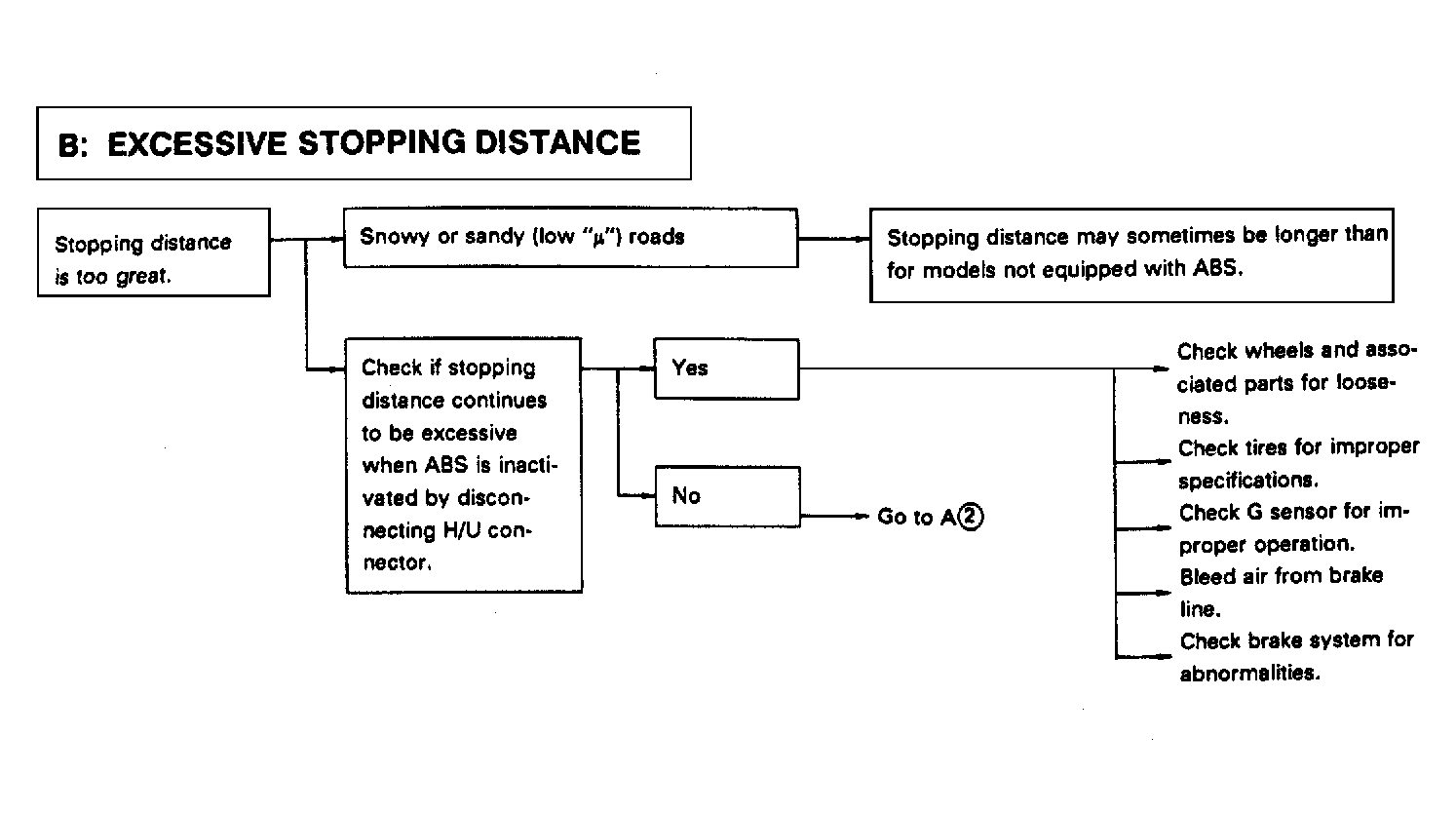

Fig 2: B - Excessive Stopping Distance
G92C01717Courtesy of SUBARU OF AMERICA, INC.

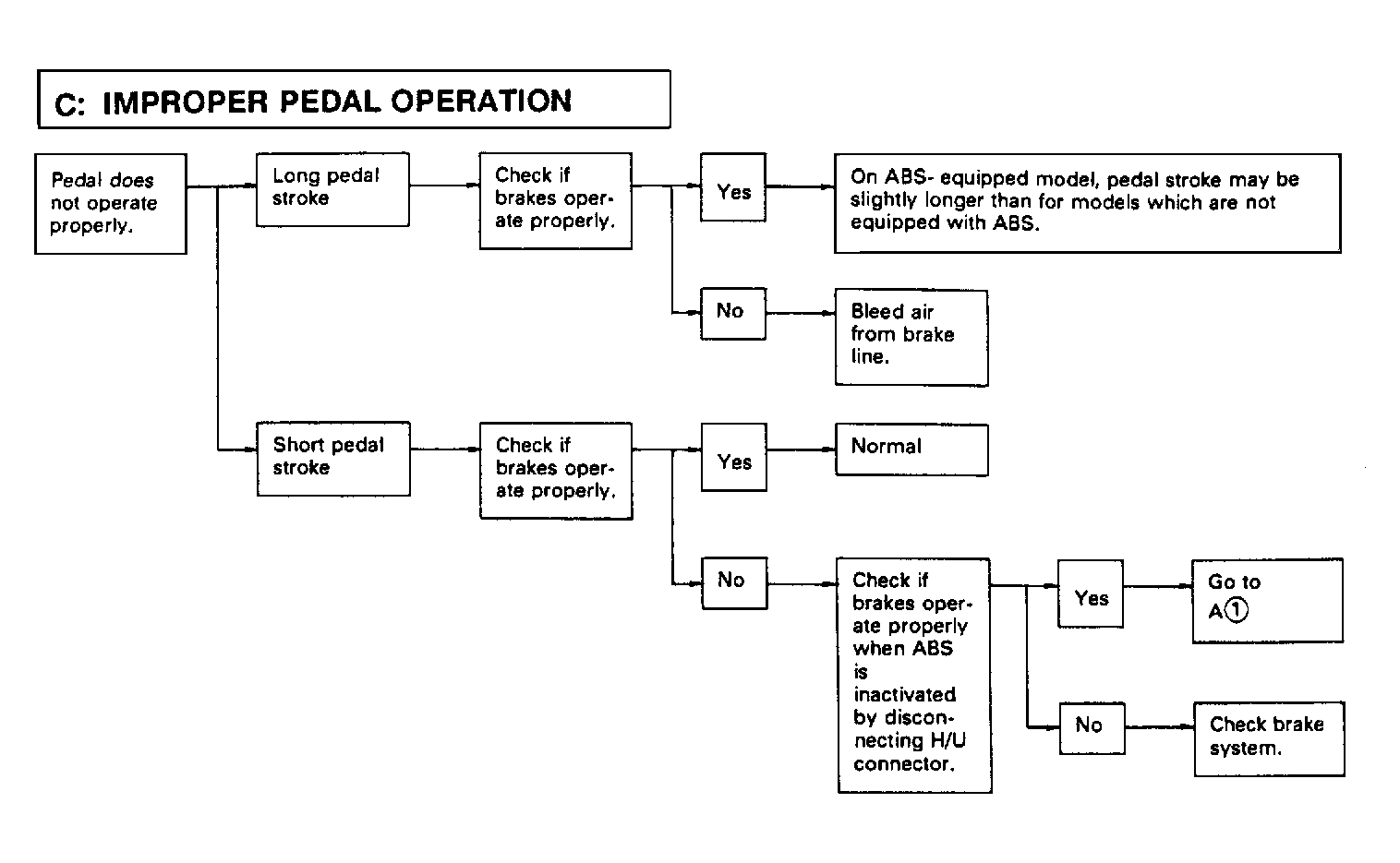

Fig 3: C - Improper Pedal Operation
G92E01718Courtesy of SUBARU OF AMERICA, INC.
