Code 44: WASTEGATE Control Duty Solenoid Valve (Turbo)

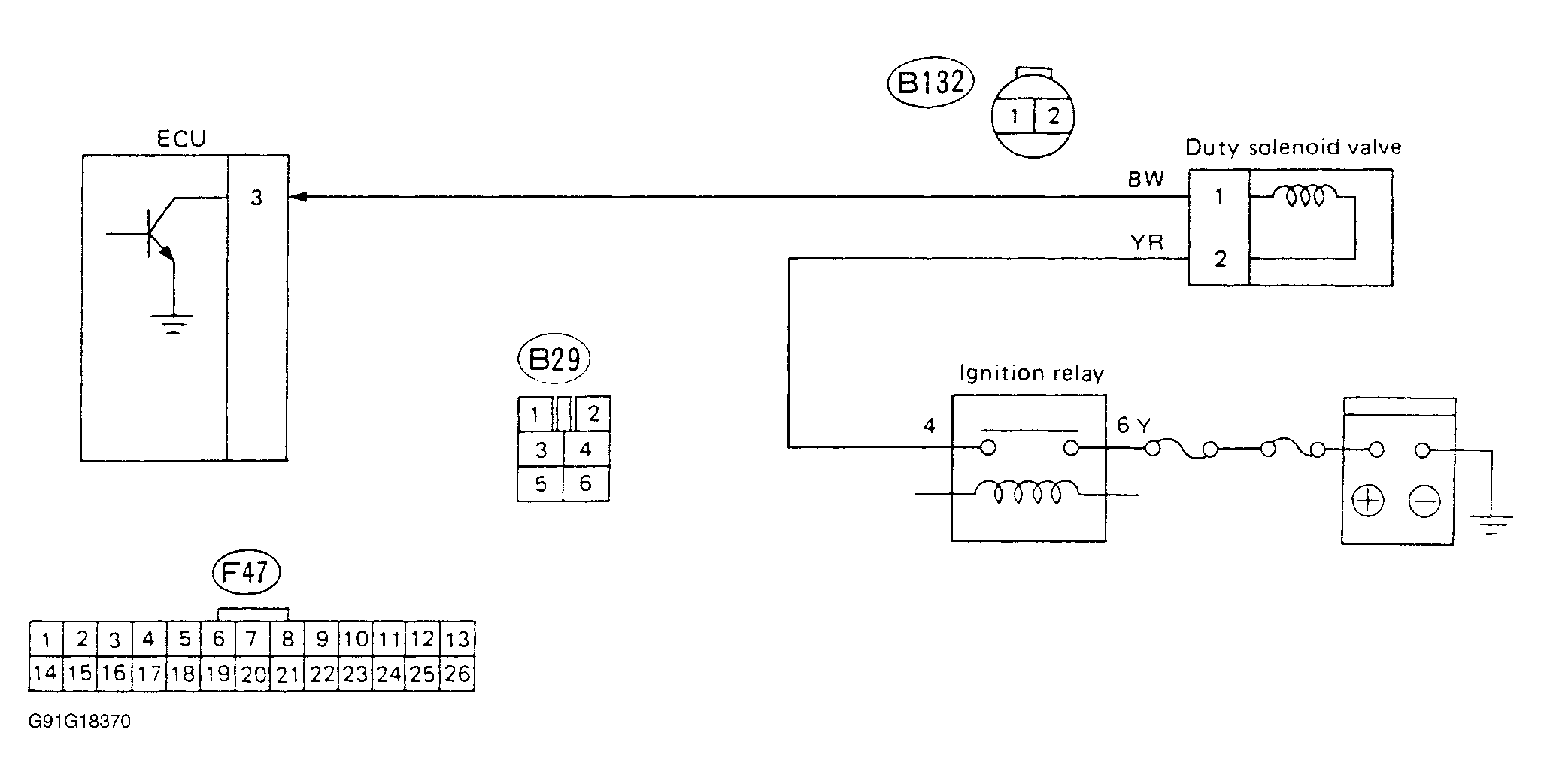

Fig 1: Schematic - Code 44, Wastegate Control Duty Sol. Valve

G91G18370

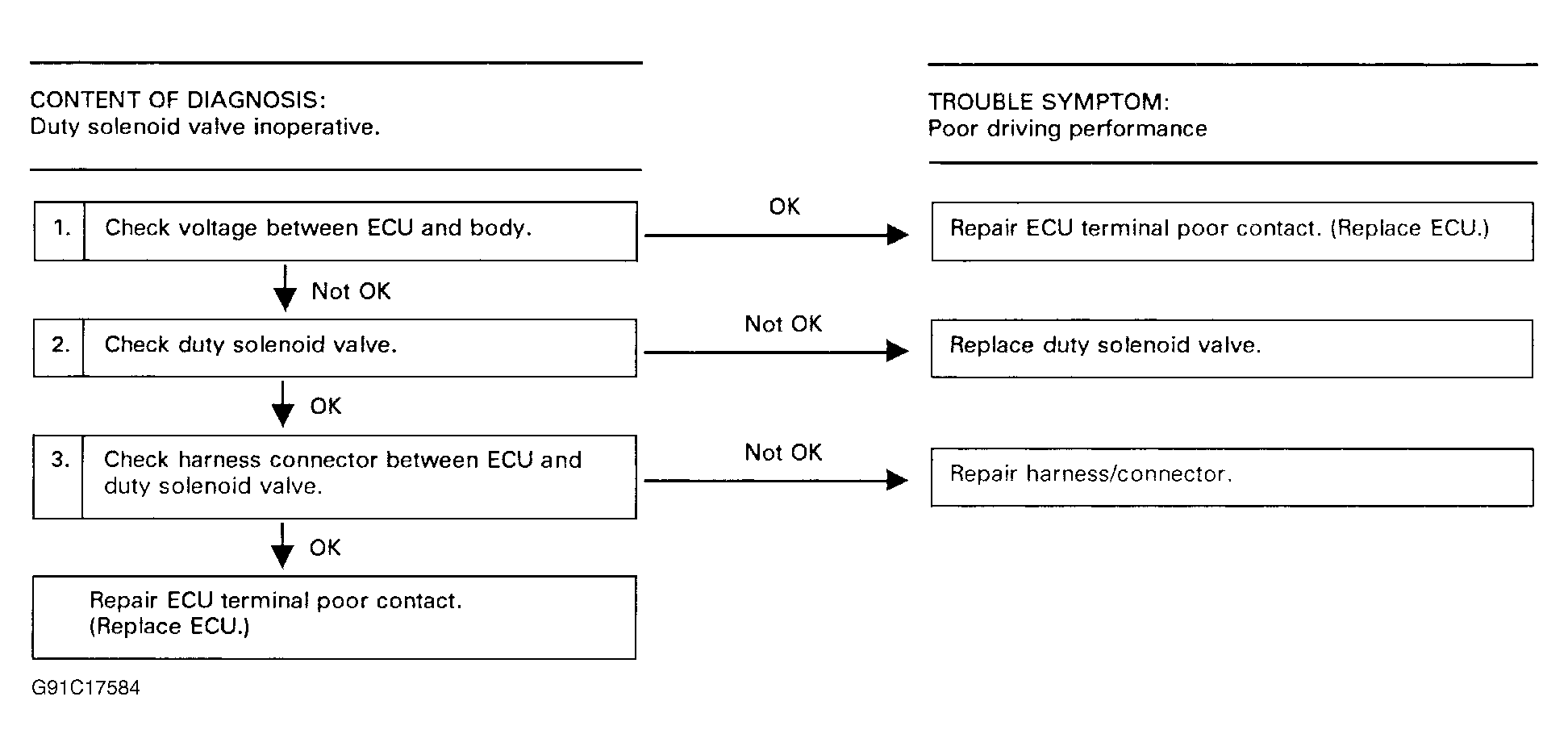

Fig 2: Flow Chart - Code 44, Wastegate Control Duty Sol. Valve

G91C17584
