Line Pressure Test: Notes

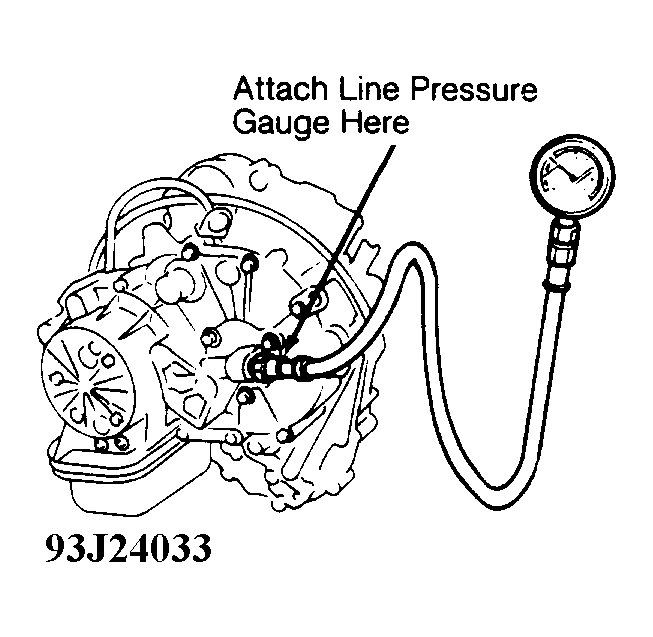

  1. Remove outlet plug from side case and install Line Pressure Gauge Adapter (498895400). Install Line Pressure Gauge (498575400) to adapter. See Figure.

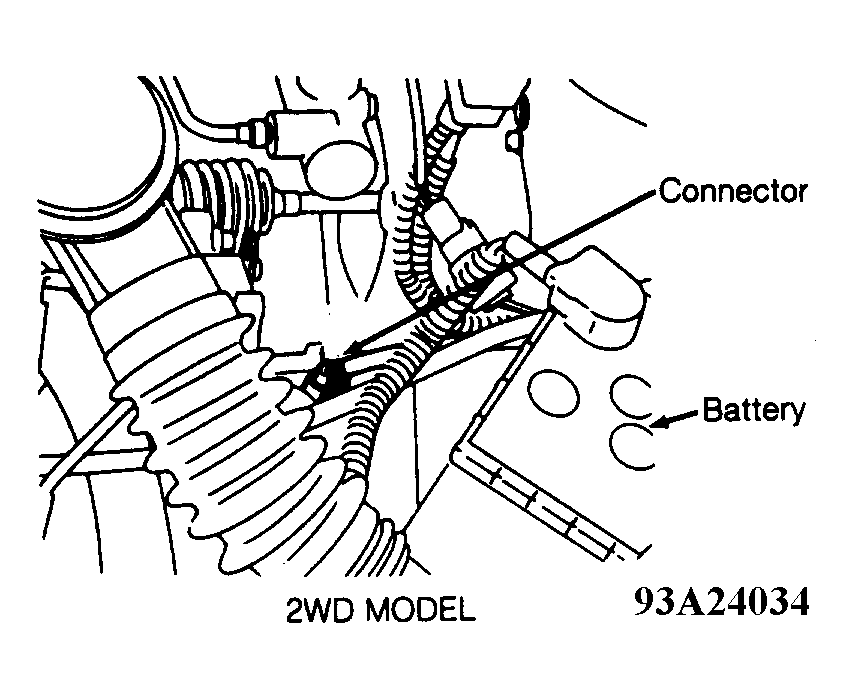

  2. Disconnect line pressure control solenoid valve connector. See Figure. Shift selector lever to "N" range while idling engine, and measure line pressure. Ensure engine is warmed completely. If line pressure is not 334 psi (2305 kPa), adjust pressure regulator. Reconnect line pressure control solenoid valve connector.
