Code 41: Air/Fuel Ratio Control System

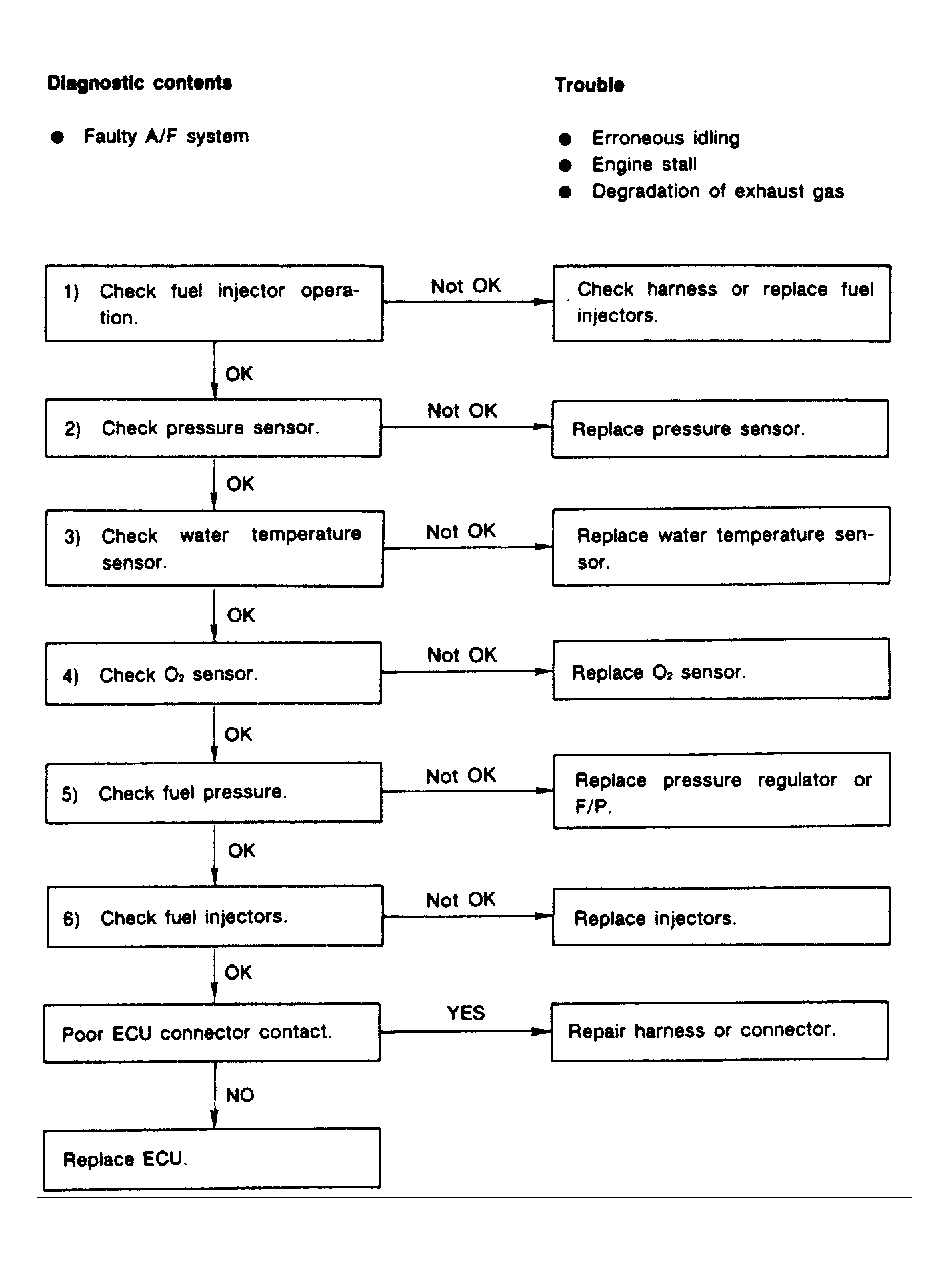

Fig 1: Flow Chart - Code 41, Air/Fuel Ratio Control System

G90D18781
