Code 36: IGNITOR Circuit

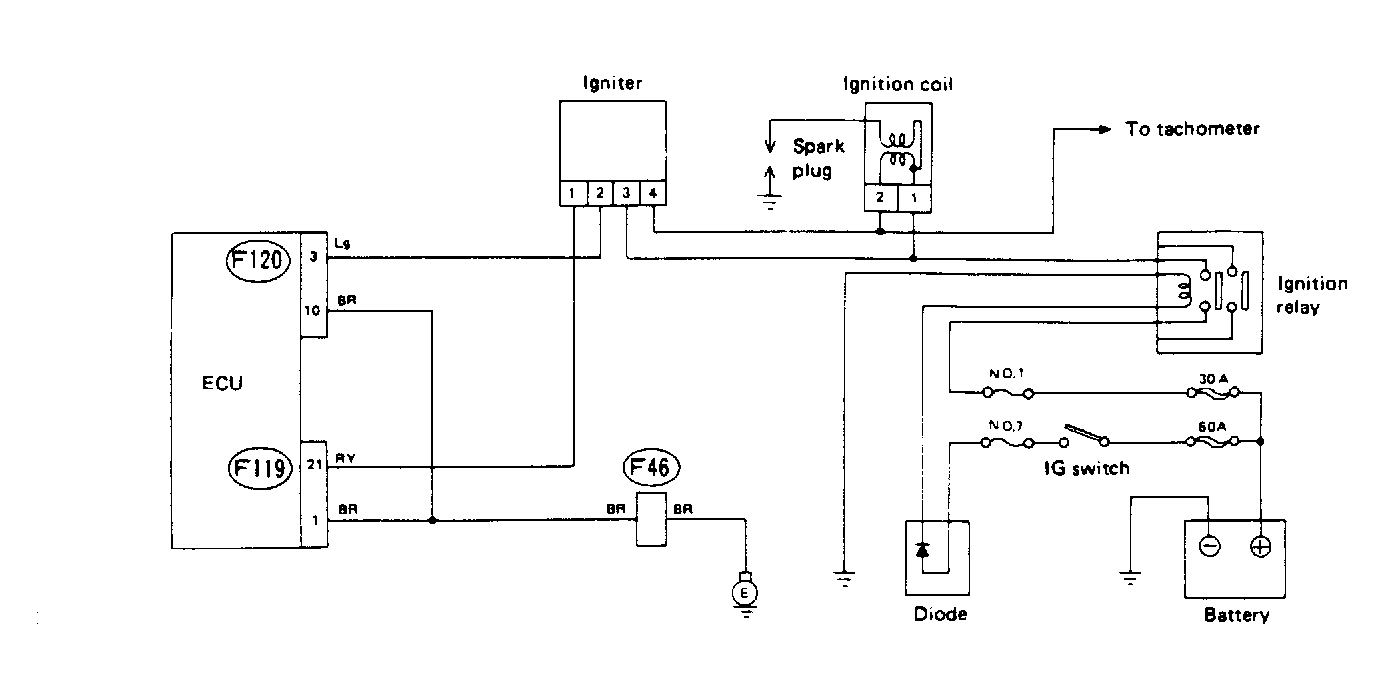

Fig 1: Schematic - Code 36, Ignitor Circuit

G91A18341

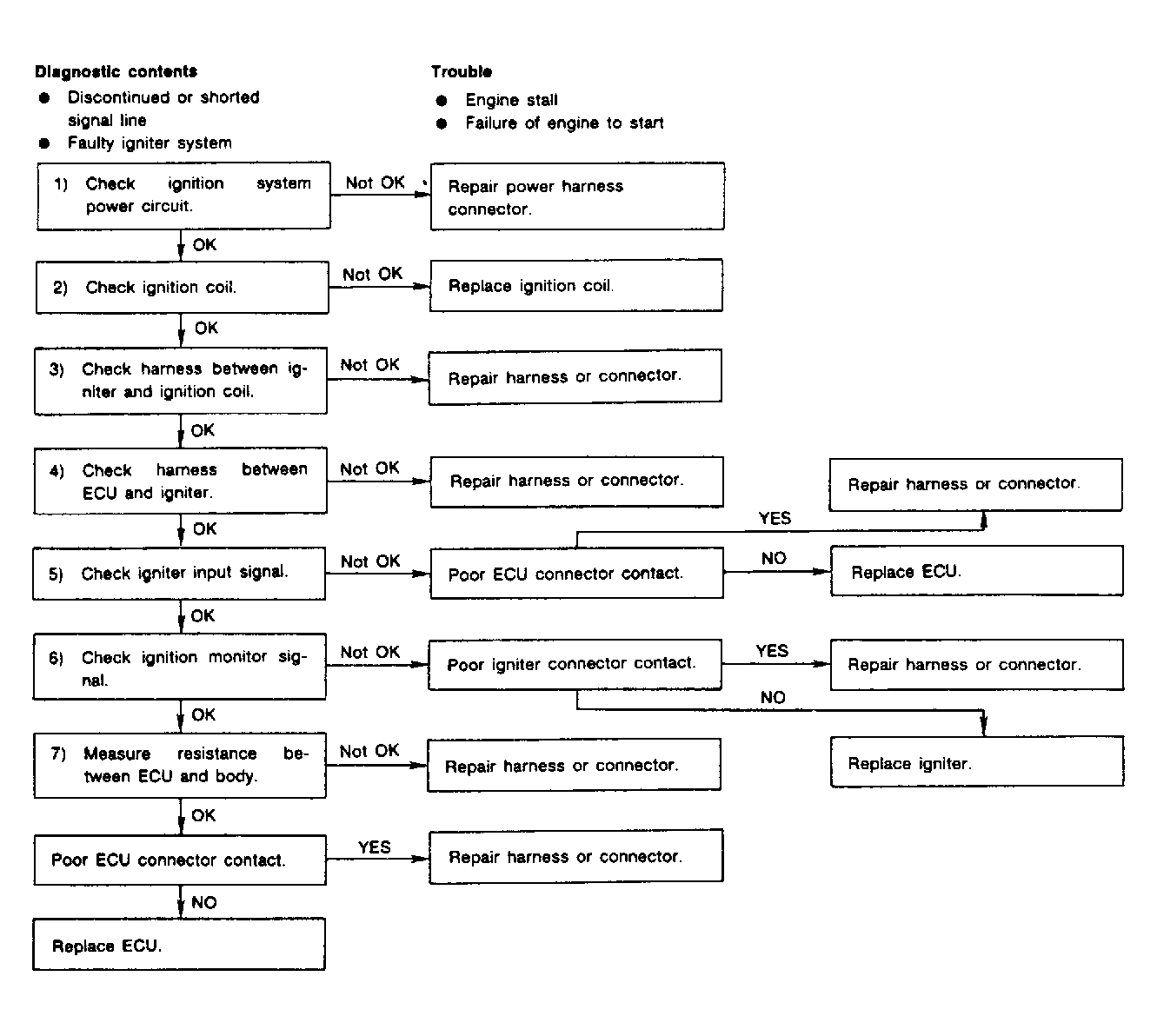

Fig 2: Flow Chart - Code 36, Ignitor Circuit

G90C18780
